High-Voltage 3-Phase Motor Control

No ratings

High-Voltage 3-Phase Motor Control

Description

3-phase high voltage motor control can drive today demanding BLDC, PMSM, and ACIM motor control designs with optimized MCU performance. The Kinetis V MCUs range from 75MHz to 240MHz to give product flexibility and to maximize reuse. Additionally, NXP provides a Kinetis motor software suite to reduce the motor control learning curve and accelerate time to market.



Block Diagram

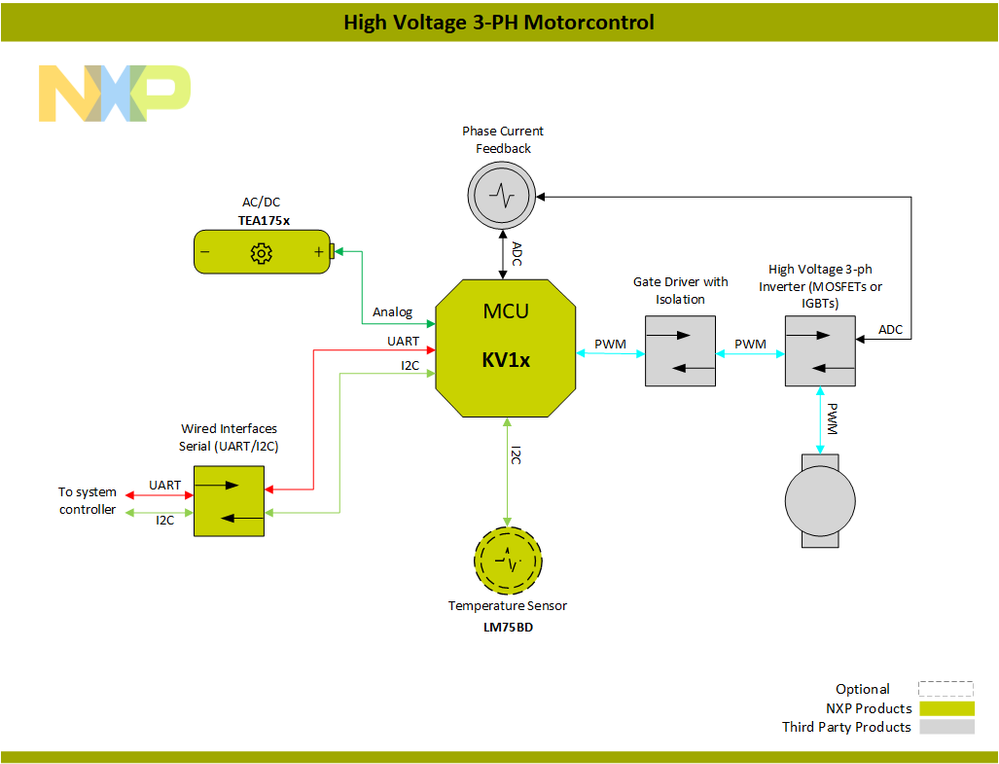

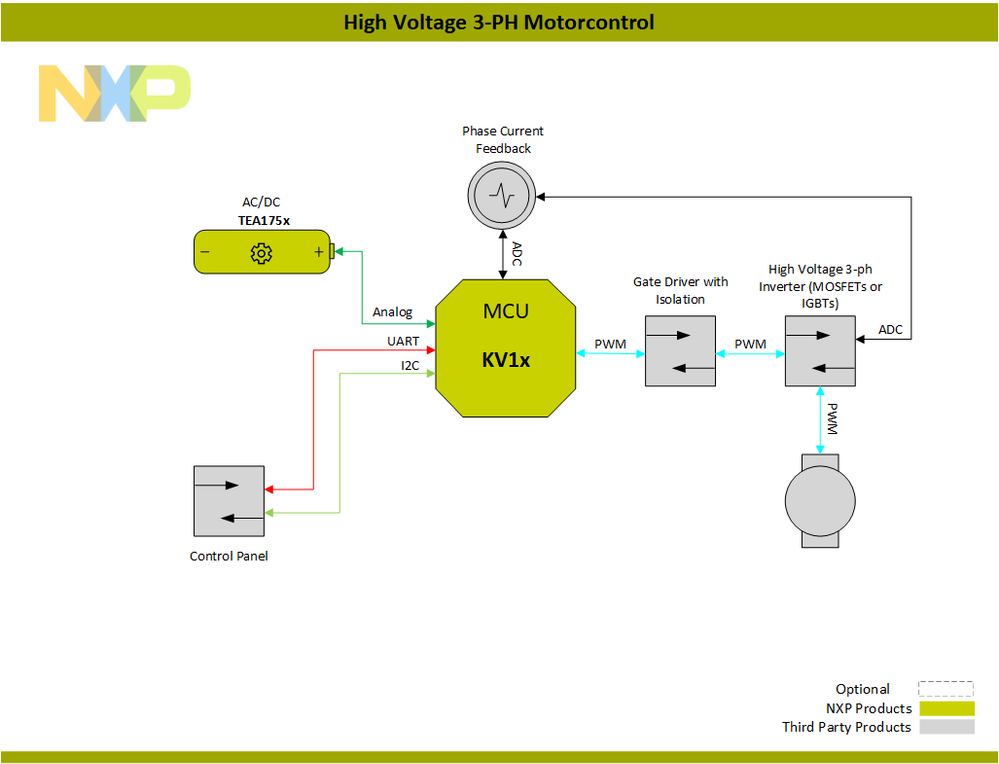

Block_Diagram-High_Voltage_3-PH_Motorcontrol-Drive-Pump[1].pngBlock_Diagram-High_Voltage_3-PH_Motorcontrol-VacuumCleaner[1].png
Products

Category Name 1:

MCU

Product URL 1

Arm® Cortex®-M0+|Kinetis® KV1x Motor Control MCUs | NXP

Product Description 1

The Kinetis® KV1x MCU delivers a 27% increase in performance in math-intensive applications versus comparable MCUs, allowing it to target BLDC as well as more computationally demanding PMSM motors.



Category Name 2:

AC/DC

Product URL 1

TEA175x | NXP

Product Description 1

The high level of integration of the TEA175x allows the design of a cost-effective power supply with a very low number of external components. The special built-in green functions provide high efficiency at all power levels.



Category Name 3:

Temperature Sensor

Product URL 1

LM75B: Digital Temperature Sensor | NXP

Product Description 1

The I²C-bus LM75B contains a number of data to store the device settings, it features an 11-bit ADC that offers a temperature resolution of 0.125 °C with a programmable temperature threshold.
