S12X PLL (Filter) Calculator

S12X PLL (Filter) Calculator

Here are the two utilities which can be used to calculate the following:



- PLL filter component values on HCS12 devices such as MC9S12DP256

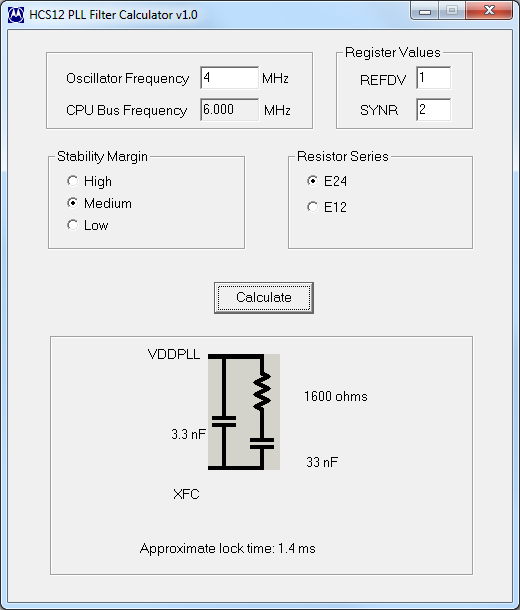

20491_20491.pngHCS12 PLL Filter.PNG.png



- PLL register values on S12(X) devices such as S12XE, S12XF, S12XS, S12P and S12HY.

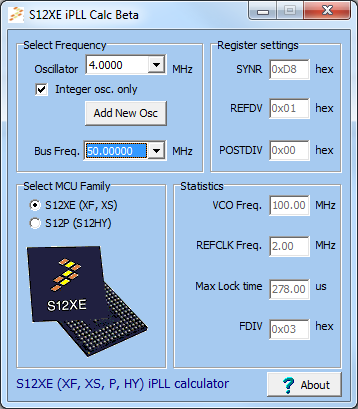

20492_20492.pngS12XE iPLL Calc.PNG.png



Both utilities come with appropriate user manuals in PDF.
