Last year i work on my own board with i.MX6, but i have some problems with PF0100NPEP.
In TBB mode everything is ok. I set desired output voltage, power sequencing and etc. Everything work fine.
After that i try to program OTP, but nothing can happen. Button "PROGRAM" on "KTPF0100GUI REV 3.0.0.20:" does not working.:smileyshocked:
I try to use "Read_Configuration.txt" script and got following:
Script has been loaded.
Date: 27.1.2014 г. Time: 21:17 ч.
Script File Used: Read_Configuration.txt
SW1AB OTP Vout = 0,3000 Volts
SW1AB OTP Sequence = 0
SW1AB OTP Config: A/B/C Single Phase, Freq = 1 MHz
SW1C OTP Vout = 0,3000 Volts
SW1C OTP Sequence = 0
SW1C OTP Config: Freq = 1 MHz
SW2 OTP Vout = 0,4000 Volts
SW2 OTP Sequence = 0
SW2 OTP Config: Freq = 1 MHz
SW3A OTP Vout = 0,4000 Volts
SW3A OTP Sequence = 0
SW3A OTP Config: A/B Single, Freq = 1 MHz
SW3B OTP Vout = 0,4000 Volts
SW3B OTP Sequence = 0
SW3B OTP Config: Freq = 1 MHz
SW4 OTP Vout = 0,4000 Volts
SW4 OTP Sequence = 0
SW4 OTP Config: Freq = 1 MHz, VTT = Off
SWBST OTP Vout = 5.000 Volts
SWBST OTP Sequence = 0
VGEN1 OTP Vout = 0,8 Volts
VGEN1 OTP Sequence = 0
VGEN2 OTP Vout = 0,8 Volts
VGEN2 OTP Sequence = 0
VGEN3 OTP Vout = 1,8 Volts
VGEN3 OTP Sequence = 0
VGEN4 OTP Vout = 1,8 Volts
VGEN4 OTP Sequence = 0
VGEN5 OTP Vout = 1,8 Volts
VGEN5 OTP Sequence = 0
VGEN6 OTP Vout = 1,8 Volts
VGEN6 OTP Sequence = 0
VREFDDR OTP Sequence = 0
VSNVS OTP Vout = 1,0000 Volts
OTP Sequencer CLK Speed = 0.5 msec
OTP DVS CLK Speed = 2.0 usec
OTP PWRON Mode = Level Sensitive
OTP PGOOD = Off
Script Run Complete

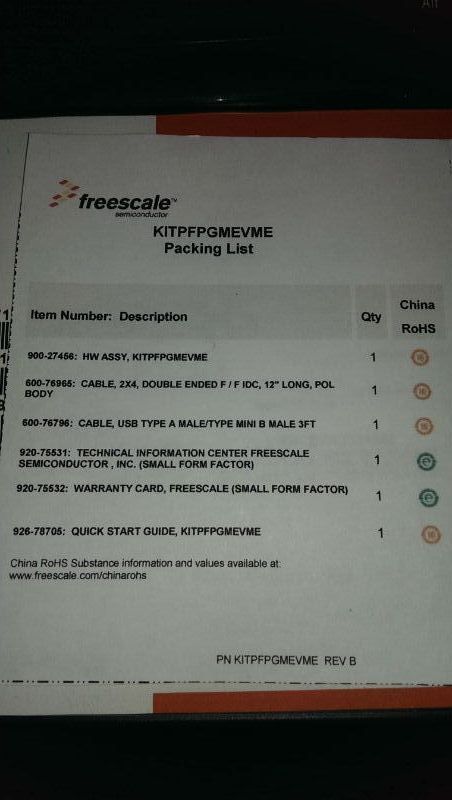

I try to install KITPFGUI, Rev. 4.0.0.12, but it does not find KITPFPGMEVME
what did i do wrong?
