Product Release Announcement

Automotive Processing



NXP Model-Based Design Toolbox



for S12ZVMx – version 1.4.0





Austin, Texas, USA

September 9, 2020

The Automotive Processing, Model-Based Design Tools Team at NXP Semiconductors, is pleased to announce the release of the Model-Based Design Toolbox for S12ZVMx version 1.4.0. This release supports automatic code generation for S12ZVM peripherals and applications prototyping from MATLAB/Simulink for NXP S12ZVMx Automotive Microprocessors. This new release adds extended MATLAB version support (R2015a-R2020a), integrates with AMMCLib v1.1.21, is compatible with MathWorks Automotive Advisory Board checks, adds over 50 new examples and more.



FlexNet Location:

https://www.nxp.com/webapp/swlicensing/sso/downloadSoftware.sp?catid=MCTB-EX



Activation link:

https://www.nxp.com/webapp/swlicensing/sso/downloadSoftware.sp?catid=MCTB-EX



Technical Support:

NXP Model-Based Design Toolbox for S12ZVMx issues are tracked through NXP Model-Based Design Tools Community space.

https://community.nxp.com/community/mbdt



Release Content

  • Automatic C code generation from MATLAB® for NXP S12ZVMx derivatives:
    • S12ZVM 32/L31/16:
      • MC9S12ZVM16
      • MC9S12ZVML31
      • MC9S12ZVM32
    • S12ZVML/C 128/64/32:
      • MC9S12ZVML32
      • MC9S12ZVML64
      • MC9S12ZVMC64
      • MC9S12ZVML128
      • MC9S12ZVMC128
    • S12ZVMC256:
      • MC9S12ZVMC256



  • Integrates the Automotive Math and Motor Control Library release 1.1.21:

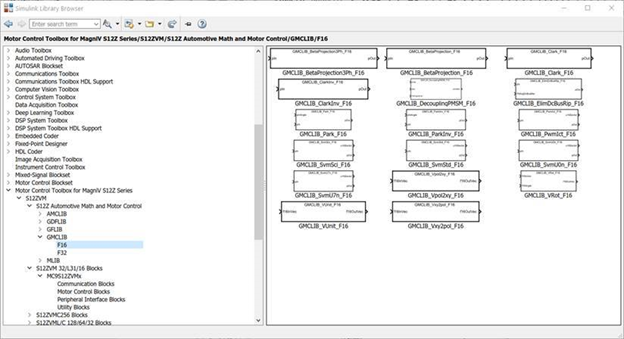

All functions in the Automotive Math and Motor Control Functions Library v1.1.21 are supported as blocks for simulation and embedded target code generation for:

  • Bit Accurate Model for 16-bit fixed-point implementation
  • Bit Accurate Model for 32-bit fixed-point implementation
  • Bit Accurate Model for floating-point single precision implementation










  • Extended support for MATLAB versions

We extended support for our toolbox to cover a wider range of MATLAB releases – starting from R2015a and going up to R2020a. This way we want to avoid locking out users that have constraints regarding MATLAB versions.

  • Motor control examples

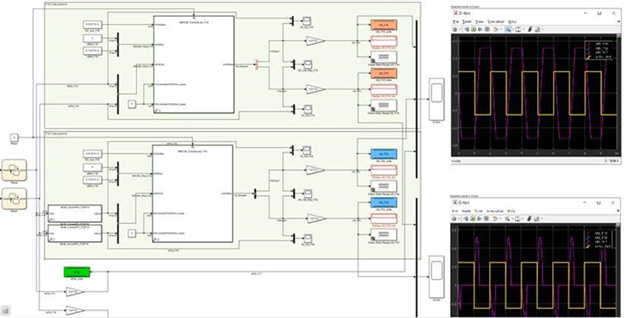

We have added new motor control examples – BLDC (closed loop) and PMSM (closed loop, sensorless):




  • MAAB Checks (MathWorks Automotive Advisory Board)

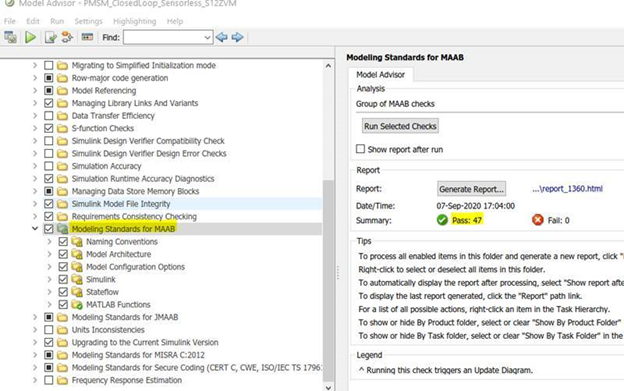

The toolbox is compatible with MathWorks Automotive Advisory Board checks – reports can be generated from Model Advisor:




  • Updated examples:

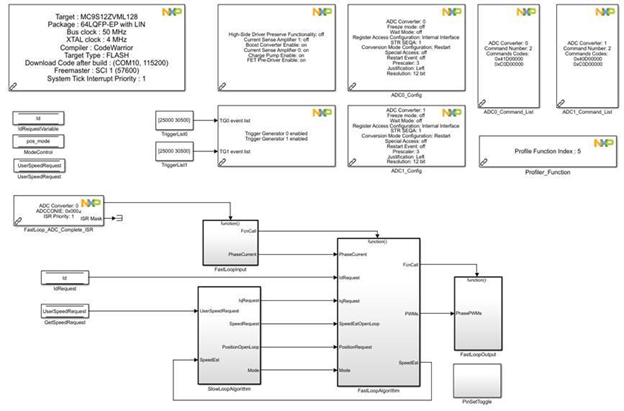

We have added over 50 new examples, including:

  • Motor control (both BLDC and PMSM)
  • AMMCLib
  • GDU (Gate Drive Unit)
  • Profiler

For more details, features and how to use the new functionalities, please refer to the Release Notes document attached.



MATLAB® Integration

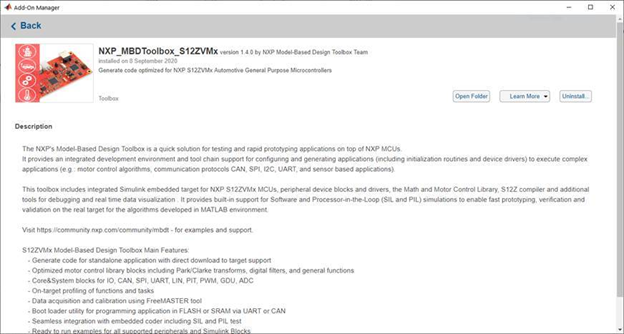

The NXP Model-Based Design Toolbox extends the MATLAB® and Simulink® experience by allowing customers to evaluate and use NXP’s S12ZVMx MCUs and evaluation boards solutions out-of-the-box with:


Target Audience

This release (1.4.0) is intended for technology demonstration, evaluation purposes and prototyping S12ZVMx MCUs and Evaluation Boards.



Useful Resources

Examples, Trainings and Support: https://community.nxp.com/community/mbdt
