Transport System Barrier

[#1]

• Description
• Features
• Block Diagram
• Products
• Documentation
• Tools

Description

From machine to control access, transport barrier systems can validate tickets and also take contactless payment from credit cards and mobile phones (requiring PCI-PTS 4.0 certification). These systems maintain a database of all transactions including a local copy kept in the machine and a copy uploaded to a central database.

The Kinetis K8x MCU family extends the Kinetis MCU portfolio with advanced security capabilities while maintaining a high level of compatibility with previous Kinetis MCU devices.

The i.MX 6 series of applications processors offers a feature- and performance-scalable multicore platform that includes single-, dual-, and quad-core families based on the Cortex architecture, including Cortex-A9, combined Cortex-A9 + Cortex-M4, and Cortex-A7 based solutions.

Features

• Control access
• Validate tickets
• Database of all transactions
• EMVSIM module with ISO7816 smart card support
• Tamper detect module
• Security Block: TRNG, Crypto Engine (AES with DPA, TDES/SHA/RSA), Secure Boot
• Includes NXP ISO/IEC14443-A and Innovatron ISO/IEC14443-B
• Full compliancy with all standards relevant to NFC, contactless operation and EMVCo

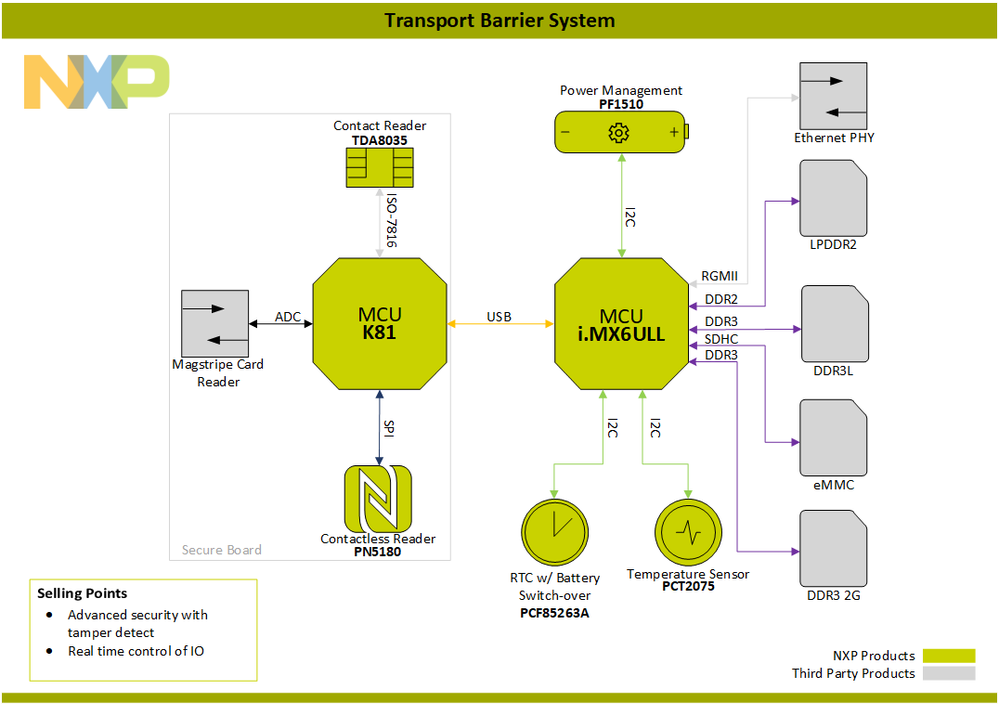

Block Diagram

Products

Category Name 1:	MCU
Product URL 1	Arm® Cortex®-M4|Kinetis K81 150 MHz 32-bit MCUs | NXP
Product Description 1	The Kinetis® K81 MCU extends the Kinetis MCU portfolio with advanced security capabilities including anti-tamper peripheral, boot ROM to support encrypted firmware updates, automatic decryption from external serial flash memory, AES acceleration, and hardware support for public key cryptography.
Product URL 2	i.MX 6ULL Applications Processor | Single Arm® Cortex®-A7 @ 900 MHz | NXP
Product Description 2	The i.MX 6ULL provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth®, GPS, displays and camera sensors.

Category Name 2:	Readers
Product URL 1	High integrated and low power smart card interface | NXP
Product Description 1	The TDA8035 is the cost efficient successor of the established integrated contact smart card reader IC TDA8024. It offers a high level of security for the card by performing current limitation, short-circuit detection, ESD protection as well as supply supervision.
Product URL 2	PN5180 | Full NFC Forum-compliant frontend IC | NXP
Product Description 2	The PN5180 is a high-performance full NFC Forum-compliant frontend IC for various contactless communication methods and protocols.

Category Name 3:	Power Management
Product URL 1	PF1510 | PMIC for low power application processors | NXP
Product Description 1	The PF1510 is a Power Management Integrated Circuit (PMIC) designed specifically for use with i.MX processors on low-power portable, smart wearable and Internet-of-Things (IoT) applications.

Category Name 4:	Peripherals
Product URL 1	PCT2075: I2C-bus Fm+, 1 Degree C Accuracy | NXP
Product Description 1	The PCT2075 is a temperature-to-digital converter featuring ±1 °C accuracy over ‑25 °C to +100 °C range.
Product URL 2	PCF85263A | NXP
Product Description 2	The PCF85263A is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption and with automatic switching to battery on main power loss.

Documentation

Making reader infrastructure ready for multi-applications cards and devices:  https://www.nxp.com/docs/en/application-note/AN12057.pdf

Tools

Product	Link
FRDM-K82F: Freedom Development Platform for Kinetis® K82, K81, and K80 MCUs	FRDM-K82F|Freedom Development Platform|Kinetis® MCUs | NXP
MCIMX6ULL-EVK: Evaluation kit for the i.MX 6ULL and 6ULZ Applications Processor	MCIMX6ULL-EVK|i.MX6ULL Evaluation Kit | NXP
OM25180FDK: PN5180 NFC Frontend Development Kit for POS Terminal Applications	OM25180 |PN5180 NFC Development Kit for POS Readers | NXP
FRDM-PF1510EVM: PF1510 Evaluation Board for low power application processors	PF1510 for Low Power Application Processors | NXP
OM13516UL: PCF85263B Evaluation board	OM13516UL: PCF85263B Evaluation board | NXP
OM13257: Universal Temperature Sensor Daughter Card for the Fm+ Development Kit	Universal Temperature Sensor Daughter Card for the Fm+ Development Kit | NXP
