Residential Gateway
Residential Gateway
Description
Industry 4.0 applications demand superior performance and reliable communications for network synchronization, on-time data delivery, and energy efficiency, even under the most extreme operating conditions. Current manufacturing challenges require flexible platforms capable of uniting trustworthy networking protocols with modern and reliable machine-to-machine communications.
A residential (smart home) gateway is an appliance that bridges a Wide Area Network (WAN/ Cloud) connection to a Local Area Network (LAN), usually Wi-Fi and/or Ethernet, in a home or customer premises. The WAN connection is typically a Fiber, Cable or xDSL connected to the gateway via a modem or PHY.
Features
- xDSL Access (ADSL2/VDSL)
- GPON, 10PON( XGS-PON, NGPON2)
- Wifi 5Ghz 11ac (4x4 )
- Wifi 2.4Ghz 11n ( 2x2 or 3x3 )
- VOIP 2
- >=4 LAN ports

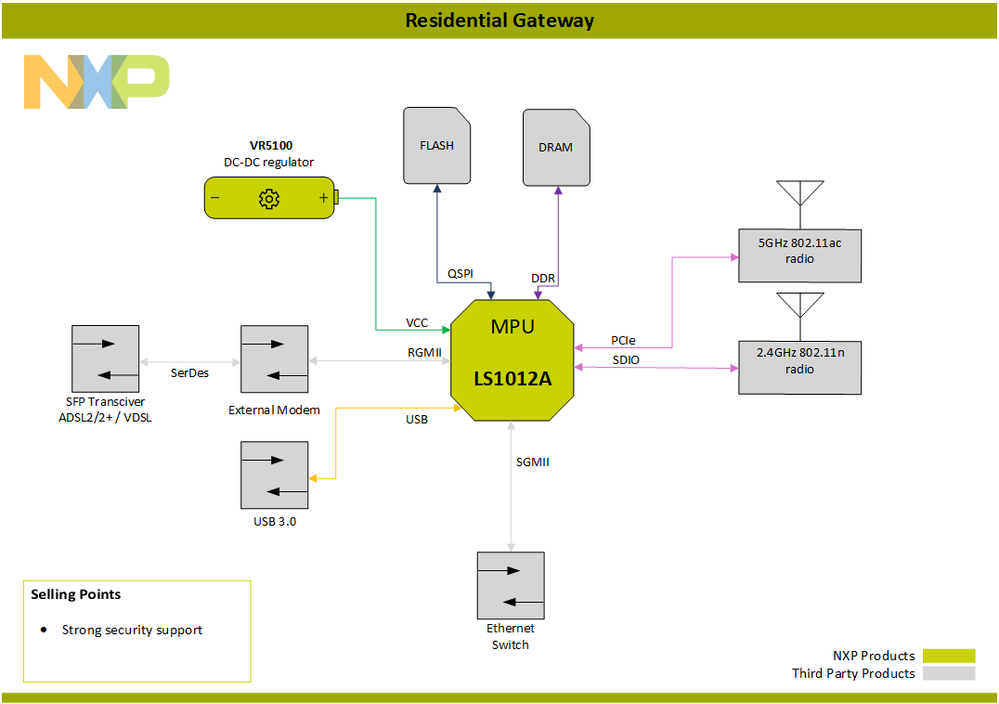

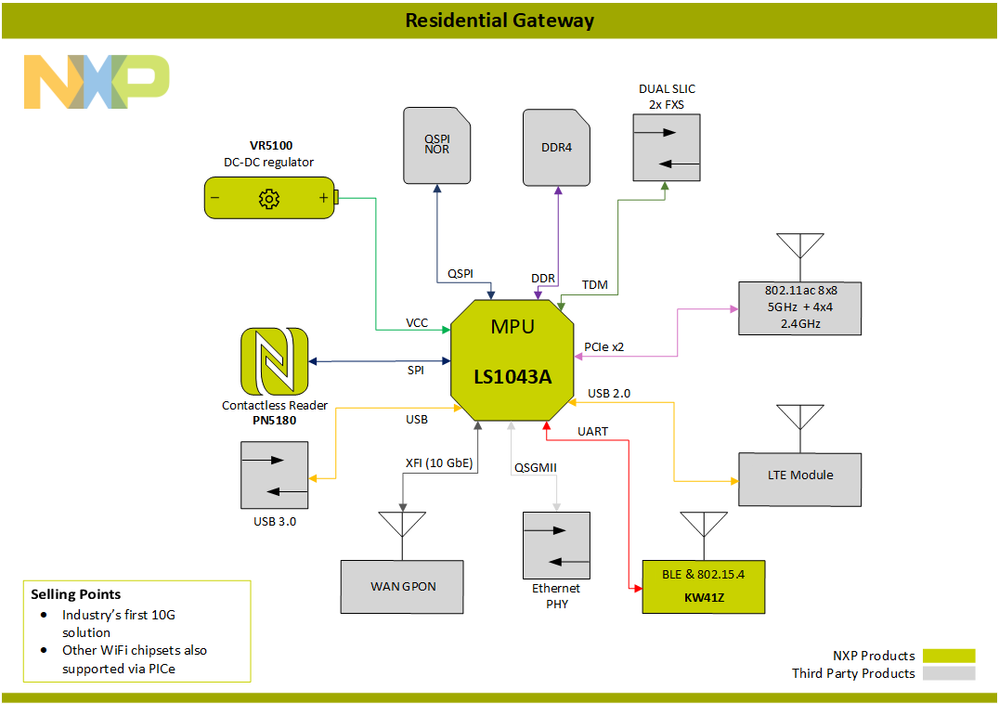

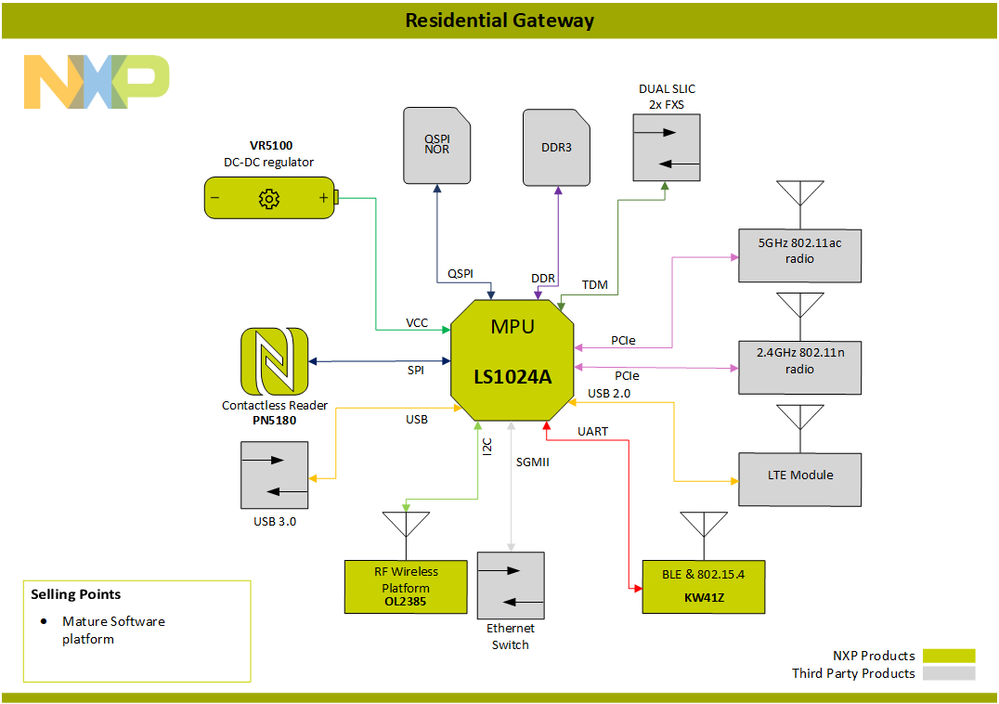

Block Diagram
Product
Category Name 1: | MPU |
Product URL 1 | Layerscape LS1012A Communication Processor for the IoT | NXP |
Product Description 1 | The QorIQ® LS1012A communications processors are optimized for battery-backed or USB-powered, space-constrained networking and IoT applications. |
Product URL 2 | |
Product Description 2 | The QorIQ® LS1024A multicore communications processors delivers scalability, superior packet handling capabilities, vastly increased VPN and SSL throughput and industry-leading quality of service hardware features. For broadband home routers, VoIP gateways, IoT (Internet of Things) gateways, and low-end network attached storage. |
Product URL 3 | |
Product Description 3 | The QorIQ® LS1043A quad-core communications processors deliver greater than 10 Gbps of performance in a flexible I/O package supporting fanless designs. This SoC is a purpose-built solution for small-form-factor networking and industrial applications with BOM optimizations for economic low layer PCB, lower cost power supply and single clock design. |
Category Name 2: | Wireless |
Product URL 1 | |
Product Description 1 | The OL2385 device is a radio frequency transceiver with an embedded MCU designed for a wide range of industrial and home applications requiring very high link budget for bidirectional RF communication. |
Product URL 2 | Arm® Cortex®-M0+|Kinetis® KW41Z 2.4 GHz Bluetooth Low Energy Thread Zigbee Radio MCUs | NXP |
Product Description 2 | The KW41Z is an ultra-low-power, highly-integrated single-chip device that enables Bluetooth® Low Energy v4.2 and IEEE® 802.15.4 RF connectivity for portable, extremely low-power embedded systems. |
Category Name 3: | Power Management |
Product URL 1 | |
Product Description 1 | The VR5100 is a high performance, multi-output DC-DC regulator designed to power single or dual core LS1 processors. It includes three buck regulators, six LDOs and a boost regulator offering a complete power management solution for Network Attached Storage, battery operated Mobile NAS, IoT gateway, Home and factory automation systems. |
Category Name 4: | NFC |
Product URL 1 | |
Product Description 1 | The PN5180 is a high-performance full NFC Forum-compliant frontend IC for various contactless communication methods and protocols. |
Demos
Gigabit WiFi Gateway with QorIQ LS1 Processor
Tools
| Product | Link |
|---|---|
| QorIQ® LS1043A Development Board | QorIQ® LS1043A Development Board | NXP |
| LS1043A Residential Gateway Reference Design | LS1043A Residential Gateway Reference Design | NXP |
| KITVR5100FRDMEVM: Evaluation Kit for VR5100 Power Management Integrated Circuit | Evaluation Kit for VR5100 Power Management Integrated Circuit | NXP |
