LS1021A IoT Gateway/Thread Border Router Demo
- LS1021A Gateway Reference Design operating as Thread Border Router/Gateway
- Connects high density Thread 802.15.4 mesh network to cloud
- Sensor network detects parking spot usage in large parking structure
This Demo Is Probably of Interest If You:
- Need high bandwidth to the cloud, other gateways, etc. w/OpenWRT
- Need to connect a large number of low power wireless edge devices
- Looking to use a Thread 802.15.4 mesh to connect sensors
Differentiation This Demo Highlights
- Ability to quickly connect Thread network to high capability Gateway
- Use Linux on LS1021A to display data from sensors and also post to cloud
- Gateway can function as a multi-protocol gateway and Thread Border Router
Description

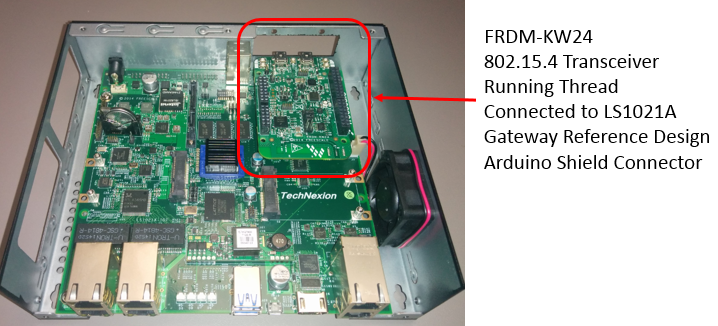

This illustrative demo leverages the LS1021A-IoT Gateway and features the KW24 Freedom board attached to the onboard Arduino headers. This FRDM-KW24 communicates with the KW24 sensor boards using the Thread protocol over 802.15.4. The embedded Linux on the LS1021A-IoT can be used to display information sent and received from the KW24 sensor boards and can also forward the information to a cloud application. The demo simulates an illustrative automated parking structure system that tracks and displays open parking spaces locally for drivers, as well as remotely to allow for managing parking availability across multiple lots for activities such as major sporting and entertainment events where tens of thousands of cars need to be directed to open parking in a short period of time.
Full Listing of Products/Components
Note: For full listing or additional information for Products/Components used in this demo see "This Demo's IoT Highlights" in Left Column and Additional Products/Components below that. Note: If you aren't looking at this demo in the IoT Solutions Center, please use below link to access IoT Center:
LS1021A Thread IoT Gateway Demo
What this Demo is All About
[Demo Video is Under Construction]

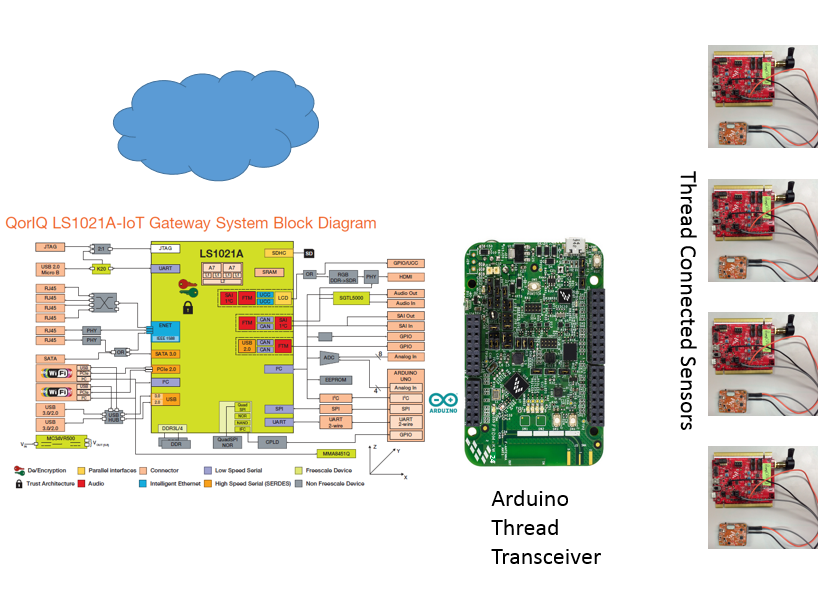

Demo Diagram(s)
IoT Physical Components
Gateways
- SOC: QorIQ LS1021A
- Boards/Modules:
- QorIQ LS1021A IoT Gateway Reference Design
- FRDM-KW24D512
- Software:
- Linux BSP
- OpenWRT
Edge Devices
- SOC:
- Kinetis KW24D512
- Sensor
- Boards/Modules:
- FRDM-KW24D512
- Sensor Prototype Board
- Software:
- Thread Stack
- Prototype Sensor SW
Wireless Connectivity
- SOC: Kinetis KW24D512 802.15.4 2.4G Transceiver
- Modules: FRDM-KW24D512
- Software: Thread Stack w/ 802.15.4 PHY/MAC
Sensors
- SOC: Sensor
- Modules: Sensor Prototype Board
- Software: Prototype Sensor SW
IoT Development Capabilities
Embedded Platforms
- Linux BSP w/OpenWRT
- Kinetis SDK
Embedded Tools
- GNU Tools (Packaged with Linux BSP)
- IAR Embedded Workbench for ARM
| IoT Product Type | Product/Component | Vendor | Research or Procure This Product/Component |
|---|---|---|---|
| End User Hardware | USB Wireless Keyboard and Touchpad | Commercial | Logitech Wireless Touch Keyboard K400 with Built-in Multi-Touch Touchpad, Black |
| End User Hardware | Dell 22" HDMI Monitor | Commercial | Dell 22" Monitor |
| End User Smart Device | Motorola XT1032 Moto G Android Smart Phone | Commercial | Motorola Android Smart Phone |
| End User Edge Device | Xfinity XR2 Remote Control Unit | Commercial | Comcast Remote Control |
| End User Edge Device | Philips HUE Bulb ZigBee Lightlink (HA 1.2) | Commercial | Hue, Professional Wireless LED Lighting | Philips Lighting |
| End User Edge Device | CentraLite 3-Series Appliance Module (4257050-RZHAC) (Zigbee HA 1.2) | Commercial | SmartPlug |
| End User Edge Device | Axis 0301004 M1011-W camera (WiFi g) | Commercial | AXIS M1011-W Network Camera, a small wireless IP camera | Axis Communications |
| End User Edge Device | Maxxima Style Night Light w/ sensor | Commercial | Night Light |
| End User Edge Device | TP-LINK TL-MR3020 3G/4G Wireless N 150 Portable Router | Commercial | WiFi Router |
