FlexIO RGB TFT Interface

[#1]

Demo

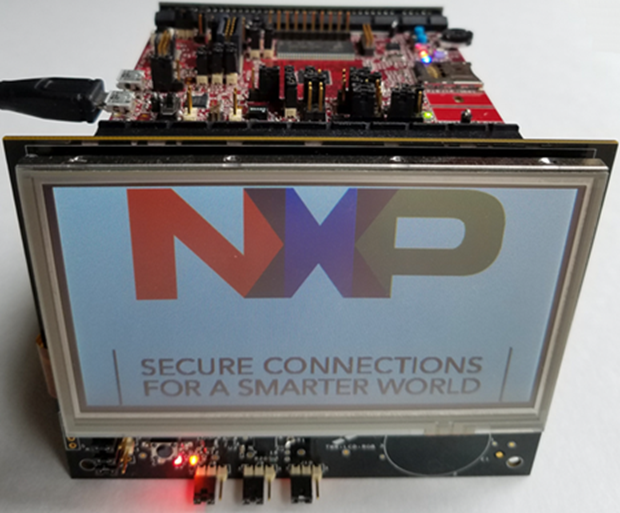

This demo shows how the FlexIO peripheral can be utilized to connect directly to an RGB TFT display to deliver a rich graphical display. The demo uses the versatile Tower ecosystem to connect the TWR-K80F150M MCU board to the display. The demo is well documented by an Application note and associated software

Features

• Dynamic Graphical LCD (480x272) with 16bt RGB interface
• Images stored in fast external Serial NOR flash
• FlexIO utilized to generate 16bit interface to TFT display with minimal CPU intervention

_______________________________________________________________________________________________________

Featured NXP Products:

Product	Link
Kinetis® K80 MCU Tower® System Module	TWR-K80F150M|Tower® System Board|Kinetis® MCUs | NXP
Graphical LCD Tower System Module with RGB Interface	Graphical LCD Tower Module with RGB Interface | NXP

_______________________________________________________________________________________________________

Links

• AN5275: Using FlexIOhttp://cache.nxp.com/files/microcontrollers/doc/app_note/AN5275.pdf?fsrch=1&sr=1&pageNum=1
• AN5280: Using Kinetis FlexIO to drive a Graphical LCD
• http://cache.nxp.com/files/archives/doc/app_note/AN5280SW.zip
