Description

E-cigs is a battery-powered device consist of an electronic cigarette that converts liquid nicotine into a mist, or vapor. It offers an interactive display that allows checking for the battery of the e-cig, liquid nicotine levels, temperature of the device, etc.

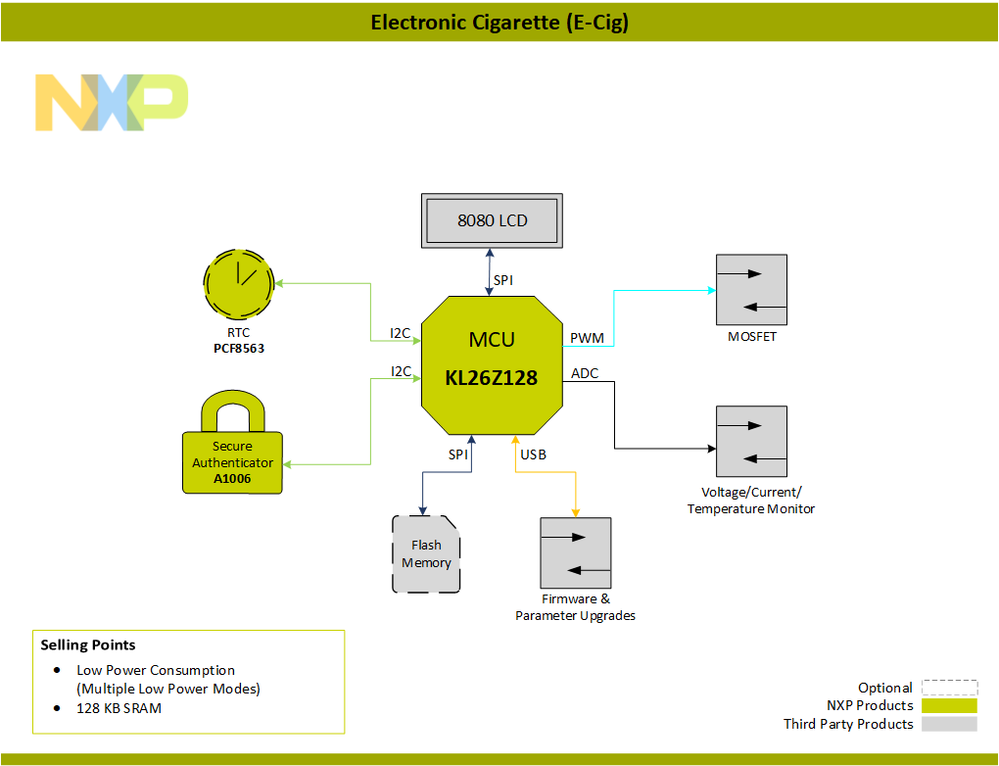

Block Diagram

Products

Category Name 1:	Microcontroller
Product URL 1	https://www.nxp.com/products/processors-and-microcontrollers/arm-microcontrollers/general-purpose-mc...
Product Description 1	The KL2x is an ultra-low-power MCU family that adds a full-speed USB 2.0 On-the-Go (OTG) controller and a 16-bit ADC with configurable resolution. The KL2x also features a FlexIO module that supports a wide range of protocols including UART, I²C, SPI, I²S, PWM waveform generation.
Product link 2	https://www.nxp.com/products/processors-and-microcontrollers/arm-microcontrollers/general-purpose-mc...
Product Description 2	The LPC541xx is a single-core or dual-core MCU, In an always-on application the MCUs operates in a power-down mode, listening for incoming data, which when available, can wake either core to acquire or process the information. The LPC541xx has a 12-bit ADC with 12 input channels and with multiple internal and external trigger inputs and sample rates of up to 5.0 MSamples/sec.

Category Name 2:	Real-time clock/calendar
Product URL 1	https://www.nxp.com/products/peripherals-and-logic/signal-chain/real-time-clocks/rtcs-with-ic-bus/re...
Product Description 1	The PCF8563 is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption. All addresses and data are transferred serially via a two-line bidirectional I²C-bus with a maximum bus speed of 400 kbit/s.

Category Name 3:	Secure Authenticator IC
Product URL 1	https://www.nxp.com/products/security-and-authentication/authentication/secure-authenticator-ic-embe...
Product Description 1	The A1006 Secure Authenticator IC is manufactured in a high-density submicron technology. It is a secure tamper-resistant authentication IC, which offers a strong cryptographic solution intended to be used by device manufacturers to prove the authenticity of their genuine products.

Related Documentation

Document URL	Title
https://www.nxp.com/docs/en/application-note/AN5133.pdf	Emulating I2C Bus Master by using FlexIO
https://www.nxp.com/docs/en/application-note/AN4568.pdf	Understanding the 16-bit ADC PGA in Kinetis K series
https://www.nxp.com/docs/en/application-note/AN11538.zip	LPC 5411x SCTimer/PWM cookbook
https://www.nxp.com/docs/en/application-note/TN00031.zip	LPC5411x Crystal-less USB Solution

Related Software

Related Software URL
https://www.nxp.com/webapp/Download?colCode=AN5133SW
Welcome | MCUXpresso SDK Builder



Training

Training URL
Regaining debug access to target MCU
Secure Tamper-Resistant Authentication
DES-N1970 Hands-On Workshop Add Wired Connectivity and Graphics Capability to Next-Generation Embedd...
