Automotive Multi-display 2D/3D Cluster, Infotainment & Rear View Camera Solution

[#1]

Demo

This solution showcases the i.MX 6QuadPlus along with the MMPF0100 Power Management to enable the 2D/3D cluster, infotainment and rear view camera.

Features:

• High performance smooth 3D graphics based on the i.MX 6QuadPlus applications processor running on Linux. On the fly rendering of the infotainment menu.
• Seamlessly integrate extremely responsive instruments and highly complex 3D content
• Optimal usage of the CPU and GPU to achieve high-end graphics on the power effective and system cost effective i.MX
• Switch between HD video playback and the rear view camera on the secondary display
• Menu can be blended over the map (BG layer) using transparency

_______________________________________________________________________________________________________________________

Featured NXP Products:

• Product	Link
  i.MX 6QuadPlus Processor	i.MX 6QuadPlus Applications Processors | Quad Arm® Cortex®-A9 with extreme graphics performance and ...
  i.MX 6DualPlus Processor	i.MX 6DualPlus Applications Processors | Dual Arm Cortex-A9 for extreme graphics performance| 1.2 GH...
  14-Channel Configurable Power Management IC	14-Channel Configurable Power Management IC | NXP
  SABRE for Automotive Infotainment Based on the i.MX 6 Series	SABRE|Automotive-Infotainment|i.MX6 | NXP

_________________________________________________________________________________________________________________________

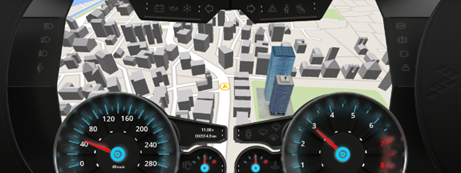

Screen shot 1: Cluster with 3D maps

Real-Time 3D map (created in Blender):

• 640 abstract buildings.
• 20 different building types.
• 3 “special” buildings.
• One building type.
• 5x5 map grid.
• Dynamic, directional lighting.
• Calculating and updating car chase camera every frame.
• Smooth 3D animations even at 30 Hz.
• This is no video!

Screen shot 2: Secondary Display playing Video or RearView Camera
