flash details

vinkar · ‎02-25-2014

Hello ,

I am writing a small chunk of code on my KL05 (32KB flash).

After building, I have gioven generate .hex option. I am getting a hex file

abt 19KB. My aim is to use this to drive a sensorless BLDC. The LPC2121

uses abt 6KB of its 32KB flash. WHy is Kinetis using 19KB.

How can I look at the flash usage (does code warrior have one, a la MPLAB).

Is the hex file programmed into the controller. Or is it something else.

My code is below

#include "derivative.h" /* include peripheral declarations */

#define uartEnable UART0_C2 |= UART0_C2_TE_MASK| UART0_C2_RE_MASK; // UART is enabled //

#define uartDisable UART0_C2 &= ~ (UART0_C2_TE_MASK| UART0_C2_RE_MASK); // UART is disabled //

#define luvOceansModeStartup

#define normalModeStartup;

#define startupBrakeTime 150

void delaySet(uint8_t timerReg,uint16_t timeValue);

//*********************************************************//

// PWM module //

void pwmInit(){

// PWM //

//timer0 - PWM //

SIM_SOPT2 |= SIM_SOPT2_TPMSRC(1); // clk source for TPM0 and TPM1 as well

SIM_SCGC6 |= SIM_SCGC6_TPM0_MASK; // clk gated for TPM0

TPM0_SC = (1<<2); // 16 prescale factor

//Pins of PWM //

//--- alternate selection (all PWM are ALT2)---//

PORTB_PCR6 |= PORT_PCR_MUX(1); // U1+

PORTB_PCR7 |= PORT_PCR_MUX(1); // U1-

PORTB_PCR10 |= PORT_PCR_MUX(1); // V1+

PORTB_PCR11 |= PORT_PCR_MUX(1); // V1-

PORTA_PCR5 |= PORT_PCR_MUX(1); // W1+

PORTA_PCR6 |= PORT_PCR_MUX(1); // W1-

GPIOB_PDDR |= (1<<6);GPIOB_PDDR |= (1<<7);GPIOB_PDDR |= (1<<10);GPIOB_PDDR |= (1<<11);

GPIOA_PDDR |= (1<<5);GPIOA_PDDR |= (1<<6);

TPM0_C0SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK); // PWM - edge ,...etc //

TPM0_C1SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK);

TPM0_C2SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK);

TPM0_C3SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK);

TPM0_C4SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK);

TPM0_C5SC |= (TPM_CnSC_MSB_MASK | TPM_CnSC_ELSB_MASK);

TPM0_CONF |= TPM_CONF_DBGMODE_MASK; // timer runs even in debug mode //

// TPM0_SC -- turn on timer //

}

// PWM done //

//*********************************************************//

// UART module //

void uartInit(){

//UART configure //

SIM_SOPT2 |= SIM_SOPT2_UART0SRC(1); // clk source for UART

SIM_SCGC4 |= SIM_SCGC4_UART0_MASK; // clk gated for UART0

SIM_SCGC5 |= SIM_SCGC5_PORTA_MASK; // clk gated for PORTA

SIM_SCGC5 |= SIM_SCGC5_PORTB_MASK; // clk gated for PORTB

PORTB_PCR3 = PORT_PCR_ISF_MASK|PORT_PCR_MUX(2); // alternate - 4 //

PORTB_PCR4 = PORT_PCR_ISF_MASK|PORT_PCR_MUX(2); // alternate - 4 //

//uartDisable;

// 8 bits,stop bits,....etc //

//GPIOB_PDDR

UART0_BDH = 0x02;

UART0_BDL = 0x22;

UART0_C4 = 0x0F;

UART0_C1 = 0x00;

UART0_C3 = 0x00;

UART0_MA1 = 0x00;

UART0_S1 |= 0x1F;

UART0_S2 |= 0xC0;

//uartEnable;

}

// UART done //

//*********************************************************//

// timer1 module //

void ptm1Init(){

SIM_SCGC6 |= SIM_SCGC6_TPM1_MASK; // clk gated for TPM0

TPM1_SC = (1<<2); // 16 prescale factor

TPM1_CONF |= TPM_CONF_DBGMODE_MASK; // timer runs even in debug mode //

//TPM1_SC; // start off timer //

}

// timer1 done //

//*********************************************************//

// adc module //

void adcInit(){

}

// adc done //

//*********************************************************//

// LPTMR module //

void lptmInit(){

}

// LPTMR done //

//*********************************************************//

// -- timer register timerData

// bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0

// x x x x 1-ms 1-IE 1-on 1-on

// 0-us 0-ID 0-off 0-off

// startBrake module //

void startBrake(){

uint8_t timerDat;

// ptm1Init(); // done at startup //

// gpios set as output //

PORTA_PCR5 &= ~(PORT_PCR_MUX_MASK);

PORTA_PCR6 &= ~(PORT_PCR_MUX_MASK);

PORTB_PCR5 &= ~(PORT_PCR_MUX_MASK);

PORTB_PCR7 &= ~(PORT_PCR_MUX_MASK);

PORTB_PCR10 &= ~(PORT_PCR_MUX_MASK);

PORTB_PCR11 &= ~(PORT_PCR_MUX_MASK);

PORTA_PCR5 |= PORT_PCR_MUX(0);

PORTA_PCR6 |= PORT_PCR_MUX(0);

PORTB_PCR5 |= PORT_PCR_MUX(0);

PORTB_PCR7 |= PORT_PCR_MUX(0);

PORTB_PCR10|= PORT_PCR_MUX(0);

PORTB_PCR11|= PORT_PCR_MUX(0);

GPIOA_PDDR = (GPIO_PDDR_PDD(5) & GPIO_PDDR_PDD(6));

GPIOB_PDDR = (GPIO_PDDR_PDD(5) & GPIO_PDDR_PDD(7) & GPIO_PDDR_PDD(10) & GPIO_PDDR_PDD(11));

timerDat = 10;

//GPIOA_PSOR = (GPIO_PSOR_PTSO(5) & GPIO_PSOR_PTSO(6));

GPIOB_PSOR = (GPIO_PSOR_PTSO(7) & GPIO_PSOR_PTSO(10));

//delaySet(timerDat,startupBrakeTime);

// brake - PTB7 - off,PTB5,PTB10 and PTA5 - on //

//GPIOB_PCOR = (GPIO_PSOR_PTSO(7) & (GPIO_PSOR_PTSO(11); // U1+ W1+

//GPIOA_PCOR = ((GPIO_PSOR_PTSO(6)); // V+

GPIOB_PSOR = (GPIO_PSOR_PTSO(5) & GPIO_PSOR_PTSO(10));

GPIOA_PSOR = (GPIO_PSOR_PTSO(5));

// -- braking done calibration done -- //

}

// startBrake done //

//*********************************************************//

// -- start up and brake done -- //

// -- ramp up is done next -- //

// open loop module //

void openLoopMotor(){

}

// open loop done //

//*********************************************************//

// Usage - this function will set up the KL04 controller -

// Peripherals - timer0,timer1,LPTMR,ADC, and PWM.

// Pins -

// U1+ - Pin2 - PTB7

// U1- - Pin1 - PTB6

// V1+ - Pin8 - PTA6

// V1- - Pin7 - PTA5

// W1+ - Pin10 - PTB11

// W1- - Pin9 - PTB10

// ADC(U) - Pin11 - PTA7

// ADC(V) - Pin12 - PTB0

// ADC(W) - Pin13 - PTB1

// ADC(Total) - Pin14 - PTB1

// UART //

// Called from - main

// Calls - pwmInit,uartInit,ptm1Init,adcInit,lptmInit

//*********************************************************//

void ucInit(){

// clock initialised to 20.97MHz //

// done //

ptm1Init();

uartInit();

//adcInit();

//lptmInit();

#ifdef luvOceansModeStartup

startBrake();

#endif

pwmInit(); // mask register bits before configuring //

//ADC configure //

//LPTMR configure //

//timer1 - Capture and compare from Atmega //

//LPTMR and commutation timing - ADC capturing //

}

//*********************************************************//

// -- delays -- //

void delaySet(uint8_t timerReg,uint16_t timeValue){

uint8_t mask;

uint8_t countRegTemp;

uint16_t timeValueTemp;

uint16_t rough;

countRegTemp = 0;

if((mask = 1<<countRegTemp+3) == 1){

countRegTemp = 0;

// msecs //

if((mask = 1<<countRegTemp) == 1){

// timer0 on //

TPM0_MOD = 1309;

TPM0_SC &= ~(TPM_SC_CMOD_MASK);

TPM0_SC |= TPM_SC_CMOD(0);

for(timeValueTemp =0;timeValueTemp<=timeValue;timeValueTemp++){

while(TPM0_SC & TPM_SC_TOF_MASK){

TPM0_SC &= ~(TPM_SC_CMOD_MASK);

TPM0_SC |= TPM_SC_TOF_MASK;

TPM0_SC |= TPM_SC_CMOD(0);

}

else{

// timer 1 //

TPM1_SC &= ~(TPM_SC_CMOD_MASK);

TPM1_SC |= TPM_SC_CMOD(0);

for(timeValueTemp =0;timeValueTemp<=timeValue;timeValueTemp++){

while(TPM0_SC & TPM_SC_TOF_MASK){

TPM1_SC &= ~(TPM_SC_CMOD_MASK);

TPM1_SC |= TPM_SC_TOF_MASK;

TPM1_SC |= TPM_SC_CMOD(0);

}

else{

// usecs - look if its a multiple of 10 //

if(timeValue <10){

timeValue = 10;

}

rough = timeValue%10;

if(rough != 0)

timeValue = ((timeValue/10)*10);

if((mask = 1<<countRegTemp) == 1){

// timer0 on //

TPM0_MOD = 13;

TPM0_SC &= ~(TPM_SC_CMOD_MASK);

TPM0_SC |= TPM_SC_CMOD(0);

for(timeValueTemp =0;timeValueTemp<=timeValue;timeValueTemp++){

while(TPM0_SC & TPM_SC_TOF_MASK){

TPM0_SC &= ~(TPM_SC_CMOD_MASK);

TPM0_SC |= TPM_SC_TOF_MASK;

TPM0_SC |= TPM_SC_CMOD(0);

}

else{

// timer 1 //

TPM1_SC &= ~(TPM_SC_CMOD_MASK);

TPM1_SC |= TPM_SC_CMOD(0);

for(timeValueTemp =0;timeValueTemp<=timeValue;timeValueTemp++){

while(TPM0_SC & TPM_SC_TOF_MASK){

TPM1_SC &= ~(TPM_SC_CMOD_MASK);

TPM1_SC |= TPM_SC_TOF_MASK;

TPM1_SC |= TPM_SC_CMOD(0);

}

// -- timer delay done //

//*********************************************************//

int main(void)

{

// initialise //

ucInit();

//pwmInit();

openLoopMotor();

while(1){

//closedLoopMotor();

}

//return 0;

}

xiaodong_zhang · ‎03-17-2014

hi karuvat,

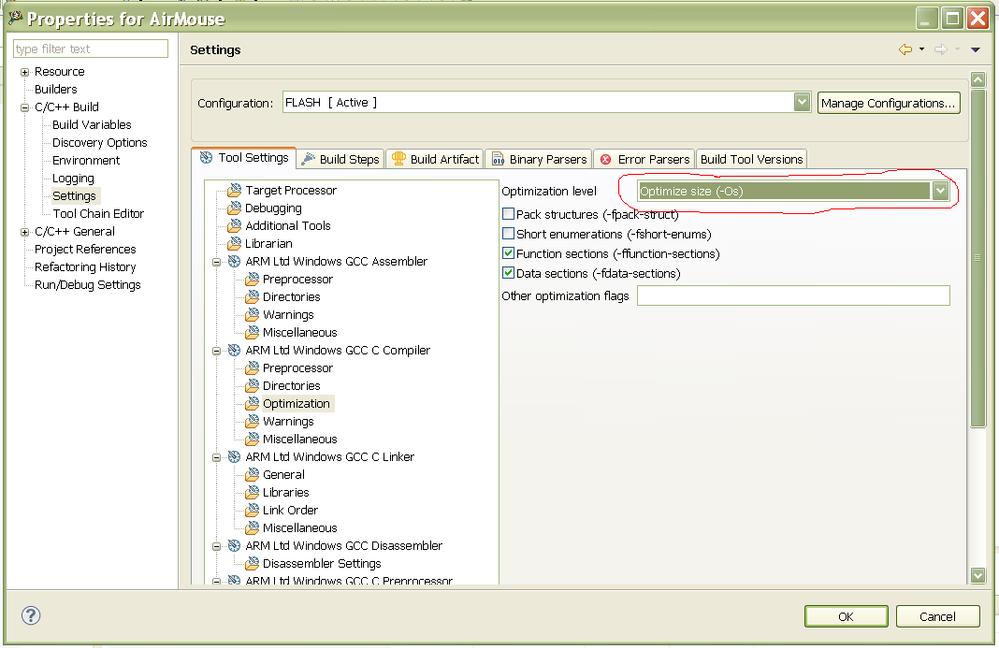

Please make sure optimization level chosen by you is optimize size(-Os).

-----------------------------------------------------------------------------------------------------------------------

Note: If this post answers your question, please click the Correct Answer button. Thank you!

-----------------------------------------------------------------------------------------------------------------------

Hui_Ma · ‎02-28-2014

Please check your project compile generated map file about memory usage.

I suggest to use CodeWarrior GCC compiler, which has higher compile performance for Kinetis product.

Wish it helps.

Best regards,

Ma Hui
