FRDM-IMX8MPLUS Hub

The FRDM i.MX 8M Plus development board is a low-cost and compact development board with NXP i.MX 8M Plus applications processor. On-board NXP IW612 Tri-Radio module supports Wi-Fi 6 + Bluetooth Low Energy 5.4 + 802.15.4. NXP releases Debian every six months and releases Yocto every year for this board. The FRDM i.MX 8M Plus development board is ideal for developing modern Industrial and IoT applications.

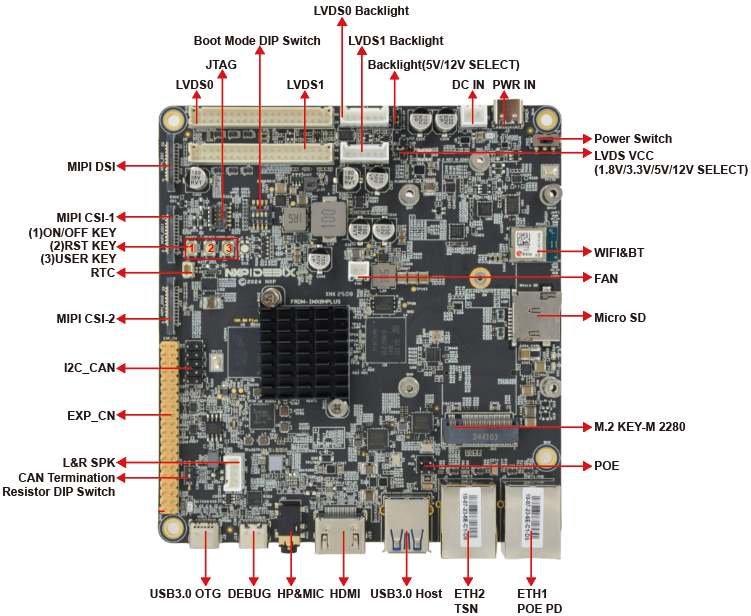

Get to know FRDM-IMX8MPLUS Development Boaard

Specifications

4× Arm® Cortex®A53 + 1× Arm Cortex-M7
LPDDR4 32-bit 4GB
eMMC 5.1, 32GB
QSPI NOR flash, 32 MB
Power Management IC (PMIC)
MicroSD 3.0 card slot
One USB 3.0 Type-C connector
One USB 2.0 Type-C for debug
One USB 3.0 Type-A connector
One USB Type-C PD only
Onboard Wi-Fi® 6 + Bluetooth® LE 5.4/802.15.4 module
Optional M.2 Key-E for Wi-Fi/ BT/802.15.4
M.2 Key-M for SSD
Multiple display interface:
- MIPI-DSI connector
- 2x4 data lane LVDS w/ Backlight
- HDMI connector
Two MIPI-CSI connectors
One 2x5 Pin NXP custom interface with:
- One CAN port
- I2C expansion
Two 1 Gbps Ethernet
- Port0 supports POE
- Port1 supports TSN
External RTC with coin cell connector
40 pin (2 x 20) expansion I/O

Feature	FRDM-IMX8MPLUS
eMMC	32GB
DRAM	Micron 4GB
PMIC	PCA9450C
WiFi Module	u-blox MAYA-W276 on-board
USB	Type-C+Type-A
ENET	2xGbE
M.2 (Key E) SDIO WiFi / BT	Y (rework needed)
M.2 (Key M) PCIE	Y
HDMI	Y
MIPI DSI Panel	22 Pins FPC HDR
LVDS Panel	40 Pins 2mm HDR
MIPI CSI camera	22 Pins FPC HDR
2x20 Expansion Interface	Y
CAN BUS	Y
MicroSD	Y
UART	Y
Audio	WM8962B
Remote Debug	N
NXP Connector (CAN, I2C)	Y
Power Connector	Type-C
PCB layers	6
Board DIM	12x13cm

NXP Devices On-Board
PMIC	PCA9450C
USB PD TCPC PHY IC	PTN5110
High-Voltage USB PD Power Switch	NX20P5090UK
I2C Extends GPIO	PCAL6416A
USB3.0 Switch	CBTL02043A
I2C Repeater	PCA9509PDP
Bi-directional Level Shifter	NTS0104
CAN Transceiver	TJA1051T/3
USB Sink & Source combo power switch	NX20P3483UK
USB Type-C CC and SBU Protection IC	NX20P0407
Real-time clock/calendar	PCF2131
Wi-Fi, BT, 802.15.4 Tri-Radio	IW612 (in u-blox Module)

Expansion Boards

RPI-CAM-MIPI: IAS camera to 22 Pins FPC camera adapter
Waveshare 7'' DSI LCD: 7inch Capacitive Touch, 1024×600
DY1212W-4856 TFT LCD panel with LVDS interface: 12.1" (WXGA) TFT LCD panel with LVDS interface
8MIC-RPI-MX8: 8-microphone array proto board for voice enablement
