imx93 6.12 version ---ov5640

[ljm3721]

issuse:
新版本的内核6.12，使用ov5640的时候遇到如下报错:

root@imx93evk:~# v4l2-ctl --list-devices

mxc-isi-cap (platform:4ae40000.isi):

/dev/video0

/dev/video1

/dev/media0

root@imx93evk:~# gst-launch-1.0 v4l2src device=/dev/video0 ! video/x-raw,width=640,height=480,format=YUY2 ! videoconvert ! autovideosink
Setting pipeline to PAUSED ...
Pipeline is live and does not need PREROLL ...
Pipeline is PREROLLED ...
Setting pipeline to PLAYING ...
New clock: GstSystemClock
ERROR: from element /GstPipeline:pipeline0/GstV4l2Src:v4l2src0: Failed to allocate required memory.
Additional debug info:
/usr/src/debug/gstreamer1.0-plugins-good/1.24.7.imx/sys/v4l2/gstv4l2src.c(956): gst_v4l2src_decide_allocation (): /GstPipeline:pipeline0/GstV4l2Src:v4l2src0:
Buffer pool activation failed
Execution ended after 0:00:00.013558875
ERROR: from element /GstPipeline:pipeline0/GstV4l2Src:v4l2src0: Internal data stream error.
Setting pipeline to NULL ...
Additional debug info:
/usr/src/debug/gstreamer1.0/1.24.7.imx/libs/gst/base/gstbasesrc.c(3177): gst_base_src_loop (): /GstPipeline:pipeline0/GstV4l2Src:v4l2src0:
streaming stopped, reason not-negotiated (-4)
Freeing pipeline ...
root@imx93evk:~#

下面是我的设备树:

#include "imx93-11x11-evk.dts"

/ {

    lvds_backlight: lvds_backlight {

        compatible = "pwm-backlight";

        pwms = <&tpm5 0 100000 0>;

        status = "okay";

        //pinctrl-0 = <&pinctrl_pwm_en>;

        enable-gpios = <&pca9535 7 GPIO_ACTIVE_HIGH>;

        brightness-levels = < 0  1  2  3  4  5  6  7  8  9

                     10 11 12 13 14 15 16 17 18 19

                     20 21 22 23 24 25 26 27 28 29

                     30 31 32 33 34 35 36 37 38 39

                     40 41 42 43 44 45 46 47 48 49

                     50 51 52 53 54 55 56 57 58 59

                     60 61 62 63 64 65 66 67 68 69

                     70 71 72 73 74 75 76 77 78 79

                     80 81 82 83 84 85 86 87 88 89

                     90 91 92 93 94 95 96 97 98 99

                    100>;

        default-brightness-level = <80>;

    };

    lvds0_panel {

        compatible = "debix,JW101HD_X00";

        //compatible = "boe,ev121wxm-n10-1850";

        pinctrl-names = "default";

        //pinctrl-0 = <&pinctrl_lvds_en>;

        enable-gpios = <&pca9535 8 GPIO_ACTIVE_HIGH>;

        backlight = <&lvds_backlight>;

        port {

            panel_lvds_in: endpoint {

                remote-endpoint = <&lvds_out>;

            };

        };

    };

};

&ldb {

    status = "okay";

    lvds-channel@0 {

        //fsl,data-mapping = "jeida";

        fsl,data-mapping = "spwg";

        fsl,data-width = <24>;

        status = "okay";

        port@1 {

            reg = <1>;

            lvds_out: endpoint {

                remote-endpoint = <&panel_lvds_in>;

            };

        };

    };

};

&tpm5 {

    pinctrl-names = "default";

    pinctrl-0 = <&pinctrl_pwm5>;

    status = "okay";

};

&ldb_phy {

    status = "okay";

};

&dphy {

    status = "disabled";

};

&dsi {

    status = "disabled";

};

&lcdif {

    status = "okay";

    assigned-clock-rates = <498000000>, <71142857>, <400000000>, <133333333>;

};

//OV5640 (MIPI) --> DPHY --> MIPI CSI2 --> ISI --> /dev/videoX

// &cameradev {

//  status = "okay";

// };

// &isi_0 {

//  status = "okay";

//  cap_device {

//      status = "okay";

//  };

// };

&lpi2c1 {

    clock-frequency = <100000>;

    ov5640_0: ov5640_mipi@3c {

                compatible = "ovti,ov5640";

                reg = <0x3c>;

                pinctrl-names = "default";

               // pinctrl-0 = <&pinctrl_csi0_pwn>, <&pinctrl_csi0_rst>, <&pinctrl_csi0_mclk>;

                //pinctrl-0 = <&pinctrl_csi0_mclk>;

                clocks = <&clk IMX93_CLK_CCM_CKO3>;

                clock-names = "xclk";

                assigned-clocks = <&clk IMX93_CLK_CCM_CKO3>;

                assigned-clock-parents = <&clk IMX93_CLK_24M>;

                assigned-clock-rates = <24000000>;

                csi_id = <0>;

                powerdown-gpios = <&pca9535 3 GPIO_ACTIVE_HIGH>;

                reset-gpios = <&pca9535_1 15 GPIO_ACTIVE_LOW>;

                //mclk = <24000000>;

                //mclk_source = <0>;

                //mipi_csi;

                status = "okay";

                port {

                        isp_out: endpoint {

                                remote-endpoint = <&mipi_csi_in>;

                                data-lanes = <1 2>;

                                clock-lanes = <0>;

                        };

                    };

                };

};

&dphy_rx {

    status = "okay";

};

&mipi_csi {

    status = "okay";

    ports {

        #address-cells = <1>;

        #size-cells = <0>;

        port@0 {

            reg = <0>;

            mipi_csi_in: endpoint {

                remote-endpoint = <&isp_out>;

                data-lanes = <1 2>;

                // clock-lanes = <0>;

            cfg-clk-range = <28>; /*24MHz = 28*/

            hs-clk-range = <0x16>;

            bus-type = <4>;

            };

        };

        port@1 {

            reg = <1>;

            mipi_csi_out: endpoint {

                remote-endpoint = <&isi_in>;

            };

        };

    };

};

&isi {

    status = "okay";

    port {

        isi_in: endpoint {

            remote-endpoint = <&mipi_csi_out>;

        };

    };

};

[Chavira]

HI @ljm3721!
Thank you for contacting NXP Support!

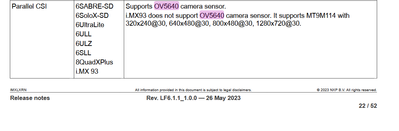

According to iMX Linux Release Notes, i.MX 93 and i.MX 91 do not support OV5640 camera sensor. They support MT9M114 with 320x240@25, 640x480@25, 800x480@25, 1280x720@25.

Best Regards!

Chavira

[ljm3721]

Hi, @Chavira

感谢你的及时回复；
我在6.1.3版本中修改设备树之后是可以是使用OV5640的，根据你的反馈，在6.12版本中是不能使用该模块吗?
期待你的回复，谢谢

[Chavira]

Hi @ljm3721!

Since the first BSP compatible with the iMX93 (6.1.1) the Note is the same.

[ljm3721]

Hi @Chavira

I use the MIPI Camera CSI interface，So,i think it support in imx93,and i can use ov5640 in 6.1.3 version.But due to the dts havd changed in 6.12 version，I cant use it now.
My device tree is attached above，Can u check it?
Looking forward to your reply.Thanks.

[Chavira]

Hi @ljm3721!

Sorry for my mistake!

Can you share your device tree file?

[ljm3721]

Hi @Chavira
I'll share the full device tree with you when I get to work.
Above I have given all the device trees about the camera,Can u check it?
In addition, the following is my boot log.

[Chavira]

Hi @ljm3721!

You can see an example here

[ljm3721]

Hi @Chavira

Her is my set ：

&lpi2c1 {

    clock-frequency = <100000>;

    ov5640_0: ov5640_mipi@3c {

                compatible = "ovti,ov5640";

                reg = <0x3c>;

                pinctrl-names = "default";

               // pinctrl-0 = <&pinctrl_csi0_pwn>, <&pinctrl_csi0_rst>, <&pinctrl_csi0_mclk>;

                //pinctrl-0 = <&pinctrl_csi0_mclk>;

                clocks = <&clk IMX93_CLK_CCM_CKO3>;

                clock-names = "xclk";

                assigned-clocks = <&clk IMX93_CLK_CCM_CKO3>;

                assigned-clock-parents = <&clk IMX93_CLK_24M>;

                assigned-clock-rates = <24000000>;

                csi_id = <0>;

                powerdown-gpios = <&pca9535 3 GPIO_ACTIVE_HIGH>;

                reset-gpios = <&pca9535_1 15 GPIO_ACTIVE_LOW>;

                //mclk = <24000000>;

                //mclk_source = <0>;

                //mipi_csi;

                status = "okay";

                port {

                        isp_out: endpoint {

                                remote-endpoint = <&mipi_csi_in>;

                                data-lanes = <1 2>;

                                clock-lanes = <0>;

                        };

                    };

                };

};

&dphy_rx {

    status = "okay";

};

&mipi_csi {

    status = "okay";

    ports {

        #address-cells = <1>;

        #size-cells = <0>;

        port@0 {

            reg = <0>;

            mipi_csi_in: endpoint {

                remote-endpoint = <&isp_out>;

                data-lanes = <1 2>;

                // clock-lanes = <0>;

            cfg-clk-range = <28>; /*24MHz = 28*/

            hs-clk-range = <0x16>;

            bus-type = <4>;

            };

        };

        port@1 {

            reg = <1>;

            mipi_csi_out: endpoint {

                remote-endpoint = <&isi_in>;

            };

        };

    };

};

&isi {

    status = "okay";

    port {

        isi_in: endpoint {

            remote-endpoint = <&mipi_csi_out>;

        };

    };

};

Can u check it?

[Chavira]

HI @ljm3721!

Please share your device tree file.

Can you share the log file outputs of the next commands:

#Get the topology of the capture subsystem
$ media-ctl -p

#List the video devices
$ v4l2-ctl --list-devices

#List the supported pixel formats:
$ v4l2-ctl -d0 --list-formats

#List the supported image resolutions
$ v4l2-ctl -d0 --list-framesizes YUYV

 I don´t see any error in the first log file maybe you are not using the correct format or size in the gstreamer command

[ljm3721]

hi @Chavira
here are devices tree and log

[ljm3721]

hi @Chavira

Do u have any update?

[ljm3721]

will share u device tree tomorrow.

Do u have device tree about ov5640 in kernel 6.12 version?

Addition i had run some  command in the log file,please check it.@Chavira

[Chavira]

Hi @ljm3721!

Are you using the debix board?

You can get based in the next device tree:

https://github.com/debix-tech/linux/blob/ModelC_linux-6.1.36_2.1.0/arch/arm64/boot/dts/freescale/imx...
