Altimeter: MPL3115A2 Breakout Board

No ratings

Altimeter: MPL3115A2 Breakout Board

Hi,

The MPL3115A2, provides highly accurate pressure and altitude data with variable sampling rate capability. It has very low-power consumption, smart features and requires zero data processing, it is ideal for mobile devices, medical and security applications.

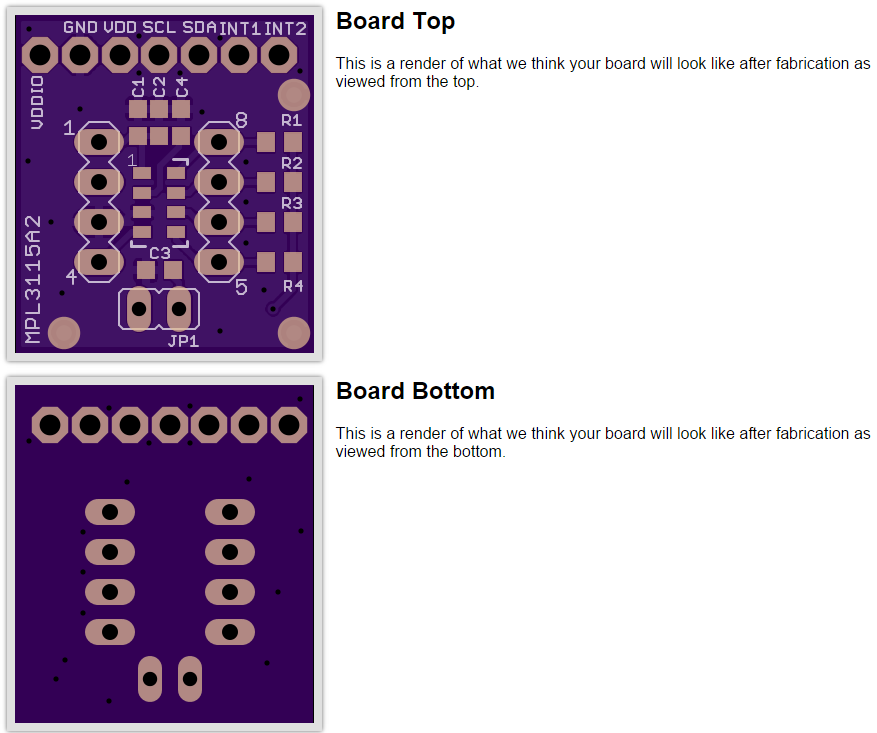

Here is a Render of the MPL3115A2 Breakout- Board downloaded from OSH Park:

PCB Render.png

And here is an image of the Layout Design for this board:

Layout Render.png

In the Attachments section, you can find the Schematic Source File (.SCH), Schematic PDF File, Layout Source File (BRD), Gerber Files (GTL, GBL, GTS, GBS, GTO, GBO, GKO, XLN) and BOM for this Breakout-board.

If you are interested in more designs like this breakout board for other sensors, please go to Freescale Sensors Breakout Boards Designs – HOME
