HI sir.
I am using the S32G-VNP-RDB3 board. I use the yocto bitbake the BSP42.0(fsl-image-auto).and boot up form SD card.

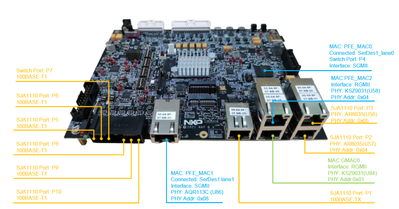

I want to use the 100BASE-T1 in the 100BASE-T1(MOLEX MINI 50 J53).
Could you help to tell me the next actions of how to enable 100BASE-T1 SJA1110 Port: P10(100BASE-T1)?
thank you.
Next is bootup logs.
NOTICE: Reset status: Power-On Reset
NOTICE: BL2: v2.10.0 (release):bsp42.0-2.10
NOTICE: BL2: Built : 19:50:36, Sep 12 2024
NOTICE: BL2: Booting BL31
U-Boot 2022.04+g5a6f62071f+p0 (Sep 06 2024 - 07:11:20 +0000)
SoC: NXP S32G399A rev. 1.0
CPU: ARM Cortex-A53 r0p4 @ max 1300 MHz
Model: NXP S32G399A-RDB3
DRAM: 3.5 GiB
Core: 306 devices, 25 uclasses, devicetree: board
MMC: FSL_SDHC: 0
Loading Environment from MMC... OK
s32cc_serdes_phy serdes@40480000: Using mode 0 for SerDes subsystem
pci_s32cc pcie@40400000: Configuring as RootComplex
pci_s32cc pcie@40400000: Failed to get link up
In: serial@401c8000
Out: serial@401c8000
Err: serial@401c8000
Board revision: RDB3 Revision E
PCIe: BusDevFun VendorId DeviceId Device Class Sub-Class
__________________________________________________________________________
pcie@40400000 RootComplex
| `-- 01:00.00 0x1957 0x4300 Bridge device 0x04
Net:
Warning: ethernet@4033c000 (eth0) using random MAC address - 7e:d8:f2:25:32:d4
eth0: ethernet@4033c000
Found PFE version 0x0101 (S32G3)
PFEng firmware file 'mmc@0:1:s32g_pfe_class.fw' loading failed: -2
Found PFE version 0x0101 (S32G3)
PFEng firmware file 'mmc@0:1:s32g_pfe_class.fw' loading failed: -2
Found PFE version 0x0101 (S32G3)
PFEng firmware file 'mmc@0:1:s32g_pfe_class.fw' loading failed: -2
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
15415304 bytes read in 646 ms (22.8 MiB/s)
Booting from mmc ...
60416 bytes read in 7 ms (8.2 MiB/s)
## Flattened Device Tree blob at 83000000
Booting using the fdt blob at 0x83000000
Using Device Tree in place at 0000000083000000, end 0000000083011bff
fixup: pfe1: update phy addr to 0x8
Failed to configure XPCS1_1
Failed to update XPCS1 for SerDes1
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 6.6.32-rt32-g49d9f8bb25e0-dirty (oe-user@oe-host) (aarch64-fsl-linux-gcc (GCC) 11.4.0, GNU ld (GNU Binutils) 2.38.20220708) #1 SMP PREEMPT Thu Sep 12 09:32:29 UTC 2024
[ 0.000000] Machine model: NXP S32G3 Reference Design Board (S32G-VNP-RDB3)
[ 0.000000] earlycon: linflex0 at MMIO 0x00000000401c8000 (options '115200n8')
[ 0.000000] printk: legacy bootconsole [linflex0] enabled
[ 0.000000] OF: reserved mem: 0x0000000034000000..0x000000003407ffff (512 KiB) nomap non-reusable pfebufs@34000000
[ 0.000000] OF: reserved mem: 0x0000000034080000..0x000000003409ffff (128 KiB) nomap non-reusable pfebufs@34080000
[ 0.000000] Reserved memory: created DMA memory pool at 0x0000000083200000, size 3 MiB
[ 0.000000] OF: reserved mem: initialized node pfebufs@83200000, compatible id shared-dma-pool
[ 0.000000] OF: reserved mem: 0x0000000083200000..0x00000000835dffff (3968 KiB) nomap non-reusable pfebufs@83200000
[ 0.000000] OF: reserved mem: 0x00000000835e0000..0x00000000835fffff (128 KiB) map non-reusable pfebufs@835e0000
[ 0.000000] OF: reserved mem: 0x0000000084000000..0x0000000084ffffff (16384 KiB) nomap non-reusable shm@84000000
[ 0.000000] OF: reserved mem: 0x00000000c0000000..0x00000000c03fffff (4096 KiB) nomap non-reusable shm@c0000000
[ 0.000000] OF: reserved mem: 0x00000000c0400000..0x00000000c07fffff (4096 KiB) nomap non-reusable shm@c0400000
[ 0.000000] OF: reserved mem: 0x00000000d0000000..0x00000000d000007f (0 KiB) nomap non-reusable shm@d0000000
[ 0.000000] OF: reserved mem: 0x00000000d0000080..0x00000000d00000ff (0 KiB) nomap non-reusable shm@d0000080
[ 0.000000] OF: reserved mem: 0x00000000ff600000..0x00000000ff7fffff (2048 KiB) nomap non-reusable atf@ff600000
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000080000000-0x00000000ffffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal [mem 0x0000000100000000-0x00000008dfffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000080000000-0x00000000831fffff]
[ 0.000000] node 0: [mem 0x0000000083200000-0x00000000835dffff]
[ 0.000000] node 0: [mem 0x00000000835e0000-0x0000000083ffffff]
[ 0.000000] node 0: [mem 0x0000000084000000-0x0000000084ffffff]
[ 0.000000] node 0: [mem 0x0000000085000000-0x00000000bfffffff]
[ 0.000000] node 0: [mem 0x00000000c0000000-0x00000000c07fffff]
[ 0.000000] node 0: [mem 0x00000000c0800000-0x00000000cfffffff]
[ 0.000000] node 0: [mem 0x00000000d0001000-0x00000000ff5fffff]
[ 0.000000] node 0: [mem 0x00000000ff600000-0x00000000ff7fffff]
[ 0.000000] node 0: [mem 0x00000000ff800000-0x00000000ffffffff]
[ 0.000000] node 0: [mem 0x0000000880000000-0x00000008dfffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x00000008dfffffff]
[ 0.000000] On node 0, zone DMA: 1 pages in unavailable ranges
[ 0.000000] cma: Reserved 256 MiB at 0x00000000ef600000 on node -1
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.4
[ 0.000000] percpu: Embedded 19 pages/cpu s40040 r8192 d29592 u77824
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GIC system register CPU interface
[ 0.000000] CPU features: detected: ARM erratum 845719
[ 0.000000] CPU features: detected: ARM errata 1165522, 1319367, 1530923, or 1530924
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: console=ttyLF0,115200 root=/dev/mmcblk0p2 rootwait rw earlycon
[ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 903167
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] software IO TLB: area num 8.
[ 0.000000] software IO TLB: mapped [mem 0x00000000eb600000-0x00000000ef600000] (64MB)
[ 0.000000] Memory: 3223892K/3670012K available (9536K kernel code, 654K rwdata, 2928K rodata, 1792K init, 219K bss, 183976K reserved, 262144K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[ 0.000000] rcu: Preemptible hierarchical RCU implementation.
[ 0.000000] rcu: RCU event tracing is enabled.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 544 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] GICv3: MBI range [167:182]
[ 0.000000] GICv3: Using MBI frame 0x0000000050800000
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x0000000050900000
[ 0.000000] ITS: No ITS available, not enabling LPIs
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer(s) running at 5.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x127350b88, max_idle_ns: 440795202120 ns
[ 0.000001] sched_clock: 56 bits at 5MHz, resolution 200ns, wraps every 4398046511100ns
[ 0.008361] Console: colour dummy device 80x25
[ 0.012452] Calibrating delay loop (skipped), value calculated using timer frequency.. 10.00 BogoMIPS (lpj=20000)
[ 0.022658] pid_max: default: 32768 minimum: 301
[ 0.027357] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.034649] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.044061] RCU Tasks: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1.
[ 0.050739] RCU Tasks Trace: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1.
[ 0.058406] rcu: Hierarchical SRCU implementation.
[ 0.063007] rcu: Max phase no-delay instances is 1000.
[ 0.068849] smp: Bringing up secondary CPUs ...
[ 0.073520] Detected VIPT I-cache on CPU1
[ 0.073574] GICv3: CPU1: found redistributor 1 region 0:0x0000000050920000
[ 0.073609] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.074187] Detected VIPT I-cache on CPU2
[ 0.074225] GICv3: CPU2: found redistributor 2 region 0:0x0000000050940000
[ 0.074243] CPU2: Booted secondary processor 0x0000000002 [0x410fd034]
[ 0.074769] Detected VIPT I-cache on CPU3
[ 0.074804] GICv3: CPU3: found redistributor 3 region 0:0x0000000050960000
[ 0.074823] CPU3: Booted secondary processor 0x0000000003 [0x410fd034]
[ 0.075379] Detected VIPT I-cache on CPU4
[ 0.075439] GICv3: CPU4: found redistributor 100 region 0:0x0000000050980000
[ 0.075467] CPU4: Booted secondary processor 0x0000000100 [0x410fd034]
[ 0.076039] Detected VIPT I-cache on CPU5
[ 0.076080] GICv3: CPU5: found redistributor 101 region 0:0x00000000509a0000
[ 0.076100] CPU5: Booted secondary processor 0x0000000101 [0x410fd034]
[ 0.076644] Detected VIPT I-cache on CPU6
[ 0.076684] GICv3: CPU6: found redistributor 102 region 0:0x00000000509c0000
[ 0.076705] CPU6: Booted secondary processor 0x0000000102 [0x410fd034]
[ 0.077304] Detected VIPT I-cache on CPU7
[ 0.077345] GICv3: CPU7: found redistributor 103 region 0:0x00000000509e0000
[ 0.077366] CPU7: Booted secondary processor 0x0000000103 [0x410fd034]
[ 0.077440] smp: Brought up 1 node, 8 CPUs
[ 0.203332] SMP: Total of 8 processors activated.
[ 0.208009] CPU features: detected: 32-bit EL0 Support
[ 0.213141] CPU features: detected: CRC32 instructions
[ 0.218323] CPU: All CPU(s) started at EL2
[ 0.222342] alternatives: applying system-wide alternatives
[ 0.229681] devtmpfs: initialized
[ 0.240940] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.250270] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
[ 0.264821] pinctrl core: initialized pinctrl subsystem
[ 0.270465] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.276916] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
[ 0.283728] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.291487] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[ 0.299488] thermal_sys: Registered thermal governor 'step_wise'
[ 0.299596] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.312070] ASID allocator initialised with 65536 entries
[ 0.317418] Serial: AMBA PL011 UART driver
[ 0.321450] scmi_core: SCMI protocol bus registered
[ 0.327322] scmi_protocol scmi_dev.1: Enabled polling mode TX channel - prot_id:16
[ 0.334786] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[ 0.341026] arm-scmi firmware:scmi: SCMI Protocol v2.0 'NXP:S32G399A' Firmware version 0x0
[ 0.356015] platform 4009c240.siul2-pinctrl: Fixed dependency cycle(s) with /soc/siul2@4009c000/siul2-pinctrl@4009c240/jtag_pins
[ 0.374276] Modules: 28944 pages in range for non-PLT usage
[ 0.374283] Modules: 520464 pages in range for PLT usage
[ 0.379905] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[ 0.391552] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[ 0.397803] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[ 0.404571] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[ 0.410825] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[ 0.417591] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[ 0.423844] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[ 0.430613] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[ 0.444571] SCSI subsystem initialized
[ 0.448063] usbcore: registered new interface driver usbfs
[ 0.453383] usbcore: registered new interface driver hub
[ 0.458687] usbcore: registered new device driver usb
[ 0.464177] pps_core: LinuxPPS API ver. 1 registered
[ 0.468707] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.477829] PTP clock support registered
[ 0.482640] vgaarb: loaded
[ 0.485222] clocksource: Switched to clocksource arch_sys_counter
[ 0.497180] NET: Registered PF_INET protocol family
[ 0.501842] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.511567] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 0.519728] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.527392] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.535481] TCP bind hash table entries: 32768 (order: 8, 1048576 bytes, linear)
[ 0.543762] TCP: Hash tables configured (established 32768 bind 32768)
[ 0.549968] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
[ 0.556608] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
[ 0.563848] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.569666] RPC: Registered named UNIX socket transport module.
[ 0.575208] RPC: Registered udp transport module.
[ 0.579888] RPC: Registered tcp transport module.
[ 0.584575] RPC: Registered tcp-with-tls transport module.
[ 0.590044] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 0.596492] PCI: CLS 0 bytes, default 64
[ 0.601939] workingset: timestamp_bits=62 max_order=20 bucket_order=0
[ 0.608413] fuse: init (API version 7.39)
[ 0.612144] NET: Registered PF_ALG protocol family
[ 0.616809] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248)
[ 0.624145] io scheduler mq-deadline registered
[ 0.628655] io scheduler kyber registered
[ 0.632656] io scheduler bfq registered
[ 0.639938] s32cc-siul2-pinctrl 4009c240.siul2-pinctrl: initialized s32 pinctrl driver
[ 0.648524] s32cc-siul2-gpio 4009d700.siul2-gpio: No cache defaults, reading back from HW
[ 0.656358] s32cc-siul2-gpio 4009d700.siul2-gpio: No cache defaults, reading back from HW
[ 0.664805] gpio gpiochip0: Static allocation of GPIO base is deprecated, use dynamic allocation.
[ 0.673779] s32cc-siul2-gpio 4009d700.siul2-gpio: No cache defaults, reading back from HW
[ 0.681583] s32cc-siul2-gpio 4009d700.siul2-gpio: No cache defaults, reading back from HW
[ 0.700880] printk: legacy console [ttyLF0] enabled000 (irq = 23, base_baud = 7812500) is a FSL_LINFLEX
[ 0.700880] printk: legacy console [ttyLF0] enabled
[ 0.710776] printk: legacy bootconsole [linflex0] disabled
[ 0.710776] printk: legacy bootconsole [linflex0] disabled
[ 0.725708] 401cc000.serial: ttyLF1 at MMIO 0x401cc000 (irq = 24, base_baud = 7812500) is a FSL_LINFLEX
[ 0.736947] s32cc_fccu 4030c000.fccu: FCCU status is 0 (normal)
[ 0.745126] sja1110-sw@1 enforce active low on GPIO handle
[ 0.752978] spi-nor spi6.0: mx25uw51245g (65536 Kbytes)
[ 0.758717] 7 fixed-partitions partitions found on MTD device 0.spi
[ 0.765085] Creating 7 MTD partitions on "0.spi":
[ 0.769858] 0x000000000000-0x000004000000 : "Flash-Image"
[ 0.775609] 0x000000000000-0x000000280000 : "FIP"
[ 0.780624] 0x000000280000-0x000000290000 : "U-Boot-Env"
[ 0.786257] 0x000000290000-0x000001360000 : "Kernel"
[ 0.791550] 0x000001360000-0x000001390000 : "DTB"
[ 0.796567] 0x000001390000-0x0000032a0000 : "Rootfs"
[ 0.801839] 0x0000032a0000-0x000004000000 : "PFE-Firmware"
[ 0.808946] vcan: Virtual CAN interface driver
[ 0.813465] slcan: serial line CAN interface driver
[ 0.818414] CAN device driver interface
[ 0.823242] flexcan 401b4000.can: device registered (reg_base=(____ptrval____), irq(s):
[ 0.831367] flexcan 401b4000.can: 30
[ 0.835085] flexcan 401b4000.can: 31
[ 0.838798] flexcan 401b4000.can: 32
[ 0.842512] flexcan 401b4000.can: 33
[ 0.846224] flexcan 401b4000.can: )
[ 0.850474] flexcan 401be000.can: device registered (reg_base=(____ptrval____), irq(s):
[ 0.858601] flexcan 401be000.can: 34
[ 0.862319] flexcan 401be000.can: 35
[ 0.866031] flexcan 401be000.can: 36
[ 0.869745] flexcan 401be000.can: 37
[ 0.873457] flexcan 401be000.can: )
[ 0.877168] e100: Intel(R) PRO/100 Network Driver
[ 0.881937] e100: Copyright(c) 1999-2006 Intel Corporation
[ 0.887524] e1000: Intel(R) PRO/1000 Network Driver
[ 0.892468] e1000: Copyright (c) 1999-2006 Intel Corporation.
[ 0.898311] e1000e: Intel(R) PRO/1000 Network Driver
[ 0.903343] e1000e: Copyright(c) 1999 - 2015 Intel Corporation.
[ 0.909370] igb: Intel(R) Gigabit Ethernet Network Driver
[ 0.914843] igb: Copyright (c) 2007-2014 Intel Corporation.
[ 0.921291] hse-uio 40210000.mu0b: firmware not found
[ 0.926814] usbcore: registered new interface driver uas
[ 0.932233] usbcore: registered new interface driver usb-storage
[ 0.939221] imx_usb 44064000.usb: No over current polarity defined
[ 0.959778] ci_hdrc ci_hdrc.0: EHCI Host Controller
[ 0.964844] ci_hdrc ci_hdrc.0: new USB bus registered, assigned bus number 1
[ 0.985221] ci_hdrc ci_hdrc.0: USB 2.0 started, EHCI 1.00
[ 0.990844] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.06
[ 0.999233] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 1.006559] usb usb1: Product: EHCI Host Controller
[ 1.011505] usb usb1: Manufacturer: Linux 6.6.32-rt32-g49d9f8bb25e0-dirty ehci_hcd
[ 1.019180] usb usb1: SerialNumber: ci_hdrc.0
[ 1.024010] hub 1-0:1.0: USB hub found
[ 1.027839] hub 1-0:1.0: 1 port detected
[ 1.033057] s32cc-rtc 40060000.rtc: registered as rtc0
[ 1.038289] s32cc-rtc 40060000.rtc: setting system clock to 1970-01-01T00:00:00 UTC (0)
[ 1.046489] i2c_dev: i2c /dev entries driver
[ 1.051171] s32cc-wdt 4010c000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.060424] s32cc-wdt 40200000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.069654] s32cc-wdt 40204000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.078886] s32cc-wdt 40208000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.088135] s32cc-wdt 40500000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.097362] s32cc-wdt 40504000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.106593] s32cc-wdt 40508000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.115823] s32cc-wdt 4050c000.watchdog: S32CC Watchdog Timer Registered. timeout=30s (nowayout=0)
[ 1.126324] sdhci: Secure Digital Host Controller Interface driver
[ 1.132613] sdhci: Copyright(c) Pierre Ossman
[ 1.137034] sdhci-pltfm: SDHCI platform and OF driver helper
[ 1.142990] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[ 1.149899] hse 40211000.mu1b: interface mu1b not active
[ 1.155642] usbcore: registered new interface driver usbhid
[ 1.161298] usbhid: USB HID core driver
[ 1.173231] mmc0: SDHCI controller on 402f0000.mmc [402f0000.mmc] using ADMA
[ 1.180511] s32-adc 401f8000.adc: using dma0chan4 for ADC DMA transfers
[ 1.187644] s32-adc 401f8000.adc: Device initialized successfully.
[ 1.205363] s32-adc 402e8000.adc: using dma1chan16 for ADC DMA transfers
[ 1.212536] s32-adc 402e8000.adc: Device initialized successfully.
[ 1.217139] mmc0: new high speed SDHC card at address aaaa
[ 1.224661] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available
[ 1.224888] mmcblk0: mmc0:aaaa SK32G 29.7 GiB
[ 1.234181] s32-siul2-nvmem 4009c000.nvram: Initialized s32cc siul2 nvmem driver
[ 1.239108] mmcblk0: p1 p2
[ 1.245055] s32-siul2-nvmem 44010000.nvram: Initialized s32cc siul2 nvmem driver
[ 1.255917] NET: Registered PF_INET6 protocol family
[ 1.261708] Segment Routing with IPv6
[ 1.265473] In-situ OAM (IOAM) with IPv6
[ 1.269496] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[ 1.275914] NET: Registered PF_PACKET protocol family
[ 1.281162] can: controller area network core
[ 1.285612] NET: Registered PF_CAN protocol family
[ 1.290472] can: raw protocol
[ 1.293482] can: broadcast manager protocol
[ 1.297728] can: netlink gateway - max_hops=1
[ 1.302201] 8021q: 802.1Q VLAN Support v1.8
[ 1.321752] i2c i2c-0: using pinctrl states for GPIO recovery
[ 1.327698] i2c i2c-0: using generic GPIOs for recovery
[ 1.333202] pca953x 0-0022: using AI
[ 1.343874] rtc-pcf85063 0-0051: registered as rtc1
[ 1.348859] i2c i2c-0: IMX I2C adapter registered
[ 1.353671] i2c i2c-0: using dma0chan5 (tx) and dma0chan6 (rx) for DMA transfers
[ 1.361699] i2c i2c-2: using pinctrl states for GPIO recovery
[ 1.367578] i2c i2c-2: using generic GPIOs for recovery
[ 1.372951] i2c i2c-2: IMX I2C adapter registered
[ 1.377762] i2c i2c-2: using dma1chan17 (tx) and dma1chan18 (rx) for DMA transfers
[ 1.385899] i2c i2c-4: using pinctrl states for GPIO recovery
[ 1.391774] i2c i2c-4: using generic GPIOs for recovery
[ 1.398483] ina2xx 4-0040: power monitor ina231 (Rshunt = 1000 uOhm)
[ 1.404962] i2c i2c-4: IMX I2C adapter registered
[ 1.409767] i2c i2c-4: using dma1chan19 (tx) and dma1chan20 (rx) for DMA transfers
[ 1.417904] phy-s32cc-serdes 40480000.serdes: Using mode 0 for SerDes subsystem
[ 1.425692] phy-s32cc-serdes 44180000.serdes: Using mode 4 for SerDes subsystem
[ 1.654758] s32cc-pcie 40400000.pcie: Failed to stabilize PHY link
[ 1.661032] s32cc-pcie 40400000.pcie: Configuring as RootComplex
[ 1.667155] s32cc-pcie 40400000.pcie: host bridge /soc/pcie@40400000 ranges:
[ 1.674326] s32cc-pcie 40400000.pcie: IO 0x5ffffe0000..0x5ffffeffff -> 0x0000000000
[ 1.682632] s32cc-pcie 40400000.pcie: MEM 0x5800000000..0x5ffffdffff -> 0x0000000000
[ 1.690943] s32cc-pcie 40400000.pcie: Memory resource size exceeds max for 32 bits
[ 2.698755] s32cc-pcie 40400000.pcie: Phy link never came up
[ 2.704548] s32cc-pcie 40400000.pcie: iATU: unroll T, 6 ob, 4 ib, align 4K, limit 1024G
[ 2.712763] s32cc-pcie 40400000.pcie: eDMA: unroll T, 4 wr, 4 rd
[ 3.719039] s32cc-pcie 40400000.pcie: Phy link never came up
[ 4.724891] s32cc-pcie 40400000.pcie: Phy link never came up
[ 4.731110] s32cc-pcie 40400000.pcie: PCI host bridge to bus 0000:00
[ 4.737562] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 4.743130] pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
[ 4.749400] pci_bus 0000:00: root bus resource [mem 0x5800000000-0x5ffffdffff] (bus address [0x00000000-0x7fffdffff])
[ 4.760192] pci 0000:00:00.0: [1957:4300] type 01 class 0x060400
[ 4.766302] pci 0000:00:00.0: reg 0x10: [mem 0x5800000000-0x58000fffff]
[ 4.773023] pci 0000:00:00.0: reg 0x38: [mem 0x5800000000-0x580000ffff pref]
[ 4.780262] pci 0000:00:00.0: supports D1
[ 4.784330] pci 0000:00:00.0: PME# supported from D0 D1 D3hot D3cold
[ 4.793569] pci 0000:00:00.0: BAR 0: assigned [mem 0x5800000000-0x58000fffff]
[ 4.800816] pci 0000:00:00.0: BAR 6: assigned [mem 0x5800100000-0x580010ffff pref]
[ 4.808498] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 4.814030] pcieport 0000:00:00.0: PME: Signaling with IRQ 52
[ 4.820780] s32cc-dwmac 4033c000.ethernet: IRQ eth_wake_irq not found
[ 4.827319] s32cc-dwmac 4033c000.ethernet: IRQ eth_lpi not found
[ 4.833796] s32cc-dwmac 4033c000.ethernet: User ID: 0x10, Synopsys ID: 0x52
[ 4.840867] s32cc-dwmac 4033c000.ethernet: DWMAC4/5
[ 4.845909] s32cc-dwmac 4033c000.ethernet: DMA HW capability register supported
[ 4.853320] s32cc-dwmac 4033c000.ethernet: RX Checksum Offload Engine supported
[ 4.860731] s32cc-dwmac 4033c000.ethernet: TX Checksum insertion supported
[ 4.867701] s32cc-dwmac 4033c000.ethernet: Wake-Up On Lan supported
[ 4.874096] s32cc-dwmac 4033c000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 4.882039] s32cc-dwmac 4033c000.ethernet: Enabled L3L4 Flow TC (entries=8)
[ 4.889098] s32cc-dwmac 4033c000.ethernet: Enabled RFS Flow TC (entries=10)
[ 4.896162] s32cc-dwmac 4033c000.ethernet: Enabling HW TC (entries=256, max_off=256)
[ 4.904018] s32cc-dwmac 4033c000.ethernet: Using 32/32 bits DMA host/device width
[ 4.917289] hwmon hwmon1: temp1_input not attached to any thermal zone
[ 4.926162] qoriq_thermal 400a8000.tmu: Critical rising/falling temperature threshold = 5 degree(s)
[ 4.939279] nxp_s32cc_ddr_perf 403e0000.ddr-perf: probing device
[ 4.945593] nxp_s32cc_ddr_perf 403e0000.ddr-perf: device initialized successfully
[ 4.953427] clk: Disabling unused clocks
[ 4.981066] EXT4-fs (mmcblk0p2): mounted filesystem 7ef8de4c-43d4-4981-a4ac-61482e00b612 r/w with ordered data mode. Quota mode: disabled.
[ 4.993129] VFS: Mounted root (ext4 filesystem) on device 179:2.
[ 4.999699] devtmpfs: mounted
[ 5.002865] Freeing unused kernel memory: 1792K
[ 5.007034] Run /sbin/init as init process
[ 5.386401] systemd[1]: System time before build time, advancing clock.
[ 5.444407] systemd[1]: systemd 250.5+ running in system mode (+PAM -AUDIT -SELINUX -APPARMOR +IMA -SMACK +SECCOMP -GCRYPT -GNUTLS -OPENSSL +ACL +BLKID -CURL -ELFUTILS -FIDO2 -IDN2 -IDN -IPTC +KMOD -LIBCRYPTSETUP +LIBFDISK -PCRE2 -PWQUALITY -P11KIT -QRENCODE -BZIP2 -LZ4 -XZ -ZLIB +ZSTD -BPF_FRAMEWORK +XKBCOMMON +UTMP +SYSVINIT default-hierarchy=hybrid)
[ 5.475772] systemd[1]: Detected architecture arm64.
Welcome to Auto Linux BSP 42.0 (kirkstone)!
[ 5.497910] systemd[1]: Hostname set to <s32g399ardb3>.
[ 5.927648] systemd[1]: Queued start job for default target Multi-User System.
[ 5.965242] systemd[1]: Created slice Slice /system/getty.
[ OK ] Created slice Slice /system/getty.
[ 5.986147] systemd[1]: Created slice Slice /system/modprobe.
[ OK ] Created slice Slice /system/modprobe.
[ 6.009949] systemd[1]: Created slice Slice /system/serial-getty.
[ OK ] Created slice Slice /system/serial-getty.
[ 6.033676] systemd[1]: Created slice User and Session Slice.
[ OK ] Created slice User and Session Slice.
[ 6.057473] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
[ OK ] Started Dispatch Password …ts to Console Directory Watch.
[ 6.081401] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ OK ] Started Forward Password R…uests to Wall Directory Watch.
[ 6.105482] systemd[1]: Reached target Path Units.
[ OK ] Reached target Path Units.
[ 6.125329] systemd[1]: Reached target Remote File Systems.
[ OK ] Reached target Remote File Systems.
[ 6.145305] systemd[1]: Reached target Slice Units.
[ OK ] Reached target Slice Units.
[ 6.165336] systemd[1]: Reached target Swaps.
[ OK ] Reached target Swaps.
[ 6.225646] systemd[1]: Listening on RPCbind Server Activation Socket.
[ OK ] Listening on RPCbind Server Activation Socket.
[ 6.249388] systemd[1]: Reached target RPC Port Mapper.
[ OK ] Reached target RPC Port Mapper.
[ 6.269922] systemd[1]: Listening on Syslog Socket.
[ OK ] Listening on Syslog Socket.
[ 6.289501] systemd[1]: Listening on initctl Compatibility Named Pipe.
[ OK ] Listening on initctl Compatibility Named Pipe.
[ 6.316408] systemd[1]: Journal Audit Socket was skipped because of a failed condition check (ConditionSecurity=audit).
[ 6.327108] systemd[1]: Listening on Journal Socket (/dev/log).
[ OK ] Listening on Journal Socket (/dev/log).
[ 6.349641] systemd[1]: Listening on Journal Socket.
[ OK ] Listening on Journal Socket.
[ 6.369803] systemd[1]: Listening on Network Service Netlink Socket.
[ OK ] Listening on Network Service Netlink Socket.
[ 6.393697] systemd[1]: Listening on udev Control Socket.
[ OK ] Listening on udev Control Socket.
[ 6.413500] systemd[1]: Listening on udev Kernel Socket.
[ OK ] Listening on udev Kernel Socket.
[ 6.433567] systemd[1]: Listening on User Database Manager Socket.
[ OK ] Listening on User Database Manager Socket.
[ 6.477471] systemd[1]: Mounting Huge Pages File System...
Mounting Huge Pages File System...
[ 6.497628] systemd[1]: POSIX Message Queue File System was skipped because of a failed condition check (ConditionPathExists=/proc/sys/fs/mqueue).
[ 6.512336] systemd[1]: Mounting Kernel Debug File System...
Mounting Kernel Debug File System...
[ 6.533610] systemd[1]: Kernel Trace File System was skipped because of a failed condition check (ConditionPathExists=/sys/kernel/tracing).
[ 6.546133] systemd[1]: Create List of Static Device Nodes was skipped because of a failed condition check (ConditionFileNotEmpty=/lib/modules/6.6.32-rt32-g49d9f8bb25e0-dirty/modules.devname).
[ 6.577637] systemd[1]: Starting Load Kernel Module configfs...
Starting Load Kernel Module configfs...
[ 6.599592] systemd[1]: Starting Load Kernel Module drm...
Starting Load Kernel Module drm...
[ 6.623568] systemd[1]: Starting Load Kernel Module fuse...
Starting Load Kernel Module fuse...
[ 6.669659] systemd[1]: Starting RPC Bind...
Starting RPC Bind...
[ 6.689480] systemd[1]: File System Check on Root Device was skipped because of a failed condition check (ConditionPathIsReadWrite=!/).
[ 6.705360] systemd[1]: Starting Journal Service...
Starting Journal Service...
[ 6.732435] systemd[1]: Starting Load Kernel Modules...
Starting Load Kernel Modules...
[ 6.750655] sja1110: loading out-of-tree module taints kernel.
[ 6.756520] SPI driver sja1110 has no spi_device_id for nxp,sja1110-switch
[ 6.763040] SPI driver sja1110 has no spi_device_id for nxp,sja1110-uc
[ 6.769691] sja1110 spi5.0: probing uc
[ 6.773335] sja1110 spi5.1: probing switch
[ 6.777589] sja1110 spi5.1: Could not get GPIO from device tree
[ 6.784402] sja1110 spi5.1: [sja1110_post_probe_upload_worker] Trying to initialize switch
[ 6.793013] sja1110 spi5.1: Direct firmware load for sja1110_switch.bin failed with error -2
[ 6.801036] sja1110 spi5.1: request_firmware failed with -2
[ 6.806581] sja1110 spi5.0: [sja1110_post_probe_upload_worker] Trying to initialize uC
[ 6.814510] sja1110 spi5.0: Direct firmware load for sja1110_uc.bin failed with error -2
[ 6.822553] sja1110 spi5.0: request_firmware failed with -2
[ 6.833773] systemd[1]: Starting Generate network units from Kernel command line...
Starting Generate network …ts from Kernel command line...
[ 6.859983] systemd[1]: Starting Remount Root and Kernel File Systems...
Starting Remount Root and Kernel File Systems...
[ 6.888086] systemd[1]: Starting Coldplug All udev Devices...
Starting Coldplug All udev Devices...
[ 6.913647] EXT4-fs (mmcblk0p2): re-mounted 7ef8de4c-43d4-4981-a4ac-61482e00b612 r/w. Quota mode: disabled.
[ 6.918508] systemd[1]: Started RPC Bind.
[ OK ] Started RPC Bind.
[ 6.942831] systemd[1]: Started Journal Service.
[ OK ] Started Journal Service.
[ OK ] Mounted Huge Pages File System.
[ OK ] Mounted Kernel Debug File System.
[ OK ] Finished Load Kernel Module configfs.
[ OK ] Finished Load Kernel Module drm.
[ OK ] Finished Load Kernel Module fuse.
[ OK ] Finished Load Kernel Modules.
[ OK ] Finished Generate network units from Kernel command line.
[ OK ] Finished Remount Root and Kernel File Systems.
Mounting FUSE Control File System...
Mounting Kernel Configuration File System...
Starting Flush Journal to Persistent Storage...
[ 7.205357] systemd-journald[147]: Received client request to flush runtime journal.
Starting Apply Kernel Variables...
Starting Create Static Device Nodes in /dev...
[ OK ] Mounted FUSE Control File System.
[ OK ] Finished Coldplug All udev Devices.
[ OK ] Mounted Kernel Configuration File System.
[ OK ] Finished Flush Journal to Persistent Storage.
[ OK ] Finished Apply Kernel Variables.
[ OK ] Finished Create Static Device Nodes in /dev.
[ OK ] Reached target Preparation for Local File Systems.
Mounting /tmp...
Mounting /var/volatile...
Starting Rule-based Manage…for Device Events and Files...
[ OK ] Mounted /tmp.
[ OK ] Mounted /var/volatile.
Mounting /var/volatile/tmp...
Starting Load/Save Random Seed...
[ OK ] Mounted /var/volatile/tmp.
[ OK ] Reached target Local File Systems.
Starting Create Volatile Files and Directories...
[ OK ] Started Rule-based Manager for Device Events and Files.
[ OK ] Finished Create Volatile Files and Directories.
Starting Network Time Synchronization...
Starting Record System Boot/Shutdown in UTMP...
[ OK ] Finished Record System Boot/Shutdown in UTMP.
[ OK ] Started Network Time Synchronization.
[ OK ] Reached target System Initialization.
[ OK ] Started Daily Cleanup of Temporary Directories.
[ OK ] Reached target System Time Set.
[ OK ] Started Daily rotation of log files.
[ OK ] Reached target Timer Units.
[ OK ] Listening on D-Bus System Message Bus Socket.
Starting sshd.socket...
[ OK ] Listening on sshd.socket.
[ OK ] Reached target Socket Units.
[ OK ] Reached target Basic System.
[ OK ] Started Job spooling tools.
[ OK ] Started Periodic Command Scheduler.
Starting D-Bus System Message Bus...
Starting IPv6 Packet Filtering Framework...
Starting IPv4 Packet Filtering Framework...
[ OK ] Started irqbalance daemon.
[ OK ] Started Hardware RNG Entropy Gatherer Daemon.
[ OK ] Started System Logging Service.
Starting Resets System Activity Logs...
Starting User Login Management...
Starting OpenSSH Key Generation...
[ OK ] Finished IPv6 Packet Filtering Framework.
[ OK ] Finished IPv4 Packet Filtering Framework.
[ OK ] Finished Resets System Activity Logs.
[ OK ] Finished OpenSSH Key Generation.
[ OK ] Reached target Preparation for Network.
Starting Network Configuration...
[ OK ] Started Network Configuration.
[ OK ] Created slice Slice /system/systemd-fsck.
Starting Network Name Resolution...
[ OK ] Found device /dev/mmcblk0p1.
Starting File System Check on /dev/mmcblk0p1...
[ OK ] Finished File System Check on /dev/mmcblk0p1.
Mounting /run/media/boot_s32g3-mmcblk0p1...
[ OK ] Started Network Name Resolution.
[ OK ] Mounted /run/media/boot_s32g3-mmcblk0p1.
[ OK ] Reached target Network.
[ OK ] Reached target Host and Network Name Lookups.
[ OK ] Started Netperf Benchmark Server.
[ OK ] Started NFS status monitor for NFSv2/3 locking..
[ OK ] Started Respond to IPv6 Node Information Queries.
[ OK ] Started Network Router Discovery Daemon.
Starting Permit User Sessions...
[ OK ] Started Xinetd A Powerful Replacement For Inetd.
[ OK ] Finished Permit User Sessions.
[ OK ] Started Getty on tty1.
[ OK ] Started Serial Getty on ttyLF0.
[ OK ] Reached target Login Prompts.
[ OK ] Finished Load/Save Random Seed.
[ OK ] Started D-Bus System Message Bus.
[ OK ] Started User Login Management.
[ OK ] Reached target Multi-User System.
Starting Record Runlevel Change in UTMP...
[ OK ] Finished Record Runlevel Change in UTMP.
Auto Linux BSP 42.0 s32g399ardb3 ttyLF0
s32g399ardb3 login: root
next is ifconfig command result.
root@s32g399ardb3:~# ifconfig
eth0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
ether 7e:d8:f2:25:32:d4 txqueuelen 1000 (Ethernet)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
device interrupt 55 base 0xa000
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 82 bytes 6220 (6.0 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 82 bytes 6220 (6.0 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
1 Solution
Hello, @Wzlinux

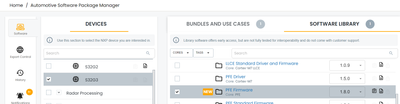

The PFE FW could be downloaded from the the following link:
https://www.nxp.com/app-autopackagemgr/automotive-software-package-manager:AUTO-SW-PACKAGE-MANAGER
BR
Chenyin
Hello, @Wzlinux

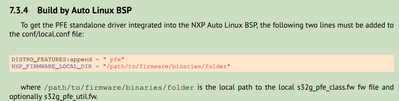

From the command you used to generate the image, it does not include the PFE support, I suggest reading the chapter 7.3.4 of BSP UM for details:
Also, thanks for @jiajun_cheng 's input
BR
Chenyin
Hi, @Wzlinux :
In the log you provided at the beginning, I saw
[ 6.750655] sja1110: loading out-of-tree module taints kernel.
[ 6.756520] SPI driver sja1110 has no spi_device_id for nxp,sja1110-switch
[ 6.763040] SPI driver sja1110 has no spi_device_id for nxp,sja1110-uc
[ 6.769691] sja1110 spi5.0: probing uc
[ 6.773335] sja1110 spi5.1: probing switch
[ 6.777589] sja1110 spi5.1: Could not get GPIO from device tree
[ 6.784402] sja1110 spi5.1: [sja1110_post_probe_upload_worker] Trying to initialize switch
[ 6.793013] sja1110 spi5.1: Direct firmware load for sja1110_switch.bin failed with error -2
[ 6.801036] sja1110 spi5.1: request_firmware failed with -2
[ 6.806581] sja1110 spi5.0: [sja1110_post_probe_upload_worker] Trying to initialize uC
[ 6.814510] sja1110 spi5.0: Direct firmware load for sja1110_uc.bin failed with error -2
[ 6.822553] sja1110 spi5.0: request_firmware failed with -2The 100baseT1 port is on the sja1110,i can see the message of pfe port after loading sja1110_uc.bin
