What is the peripheral reference circuit of mc9s12xf（112pins）?

i need it because i am confused about power supply pins and these bypass capacitors

[danielmartynek]

Hello @ranmengfan,

You can refer to

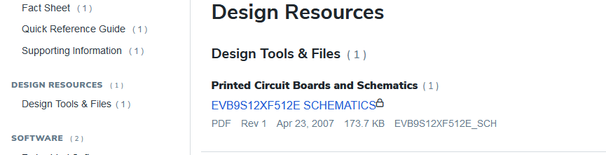

• EVB9S12XF512E schematic:

https://www.nxp.com/design/development-boards/automotive-development-platforms/s12-magniv-mcu-platfo...

• AN3262 Designing Hardware for the MC9S12X D-Family

https://www.nxp.com/docs/en/application-note/AN3262.pdf

Regards,

Daniel

[ranmengfan]

thanks
