NXP Model-Based Design Toolbox for DSC MC56F8x MCUs - version 1.0.0

Yes

Product Release Announcement

EDGE PROCESSING

NXP Model-Based Design Toolbox

for DSC MC56F8x MCUs - version 1.0.0

Bucharest, Romania

December 15th , 2021

The Edge Processing Tools Team at NXP Semiconductors is pleased to announce the release of the Model-Based Design Toolbox for DSC MC56F8x Series version 1.0.0. This release supports automatic code generation for peripherals and applications prototyping from MATLAB/Simulink for NXP’s DSC MC56F81xxx and MC56F83xxx Series of MCUs based on DSP568000E core.

NXP Download Location

https://www.nxp.com/webapp/swlicensing/sso/downloadSoftware.sp?catid=MCTB-EX

MATHWORKS Download Location

https://www.mathworks.com/matlabcentral/fileexchange/103600-nxp-support-package-dsc

Version 1.0.0 Release Content

Automatic C code generation based on MCUXpresso SDK 2.7.3 drivers and MCUXpresso Configuration Tools 10.0 initializations from MATLAB®/Simulink® for:

MC56F81xxx

MC56F81868VLH, MC56F81646VLF, MC56F81648VLH, MC56F81663VLC,

MC56F81666VLF, MC56F81668VLH, MC56F81743VLC, MC56F81746VLF,

MC56F81748VLH, MC56F81763VLC, MC56F81766VLF, MC56F81768VLH,

MC56F81866VLF, MC56F81643VLC

MC56F83xxx

MC56F83789VLL, MC56F83683VLH, MC56F83686VLL, MC56F83689VLL,

MC56F83763VLH, MC56F83766VLK, MC56F83769VLL, MC56F83783VLH,

MC56F83786VLK, MC56F83663VLH

Multiple options for configuration of MCU packages, Build Toolchain and embedded Target Connections are available via Simulink Model Configuration UI

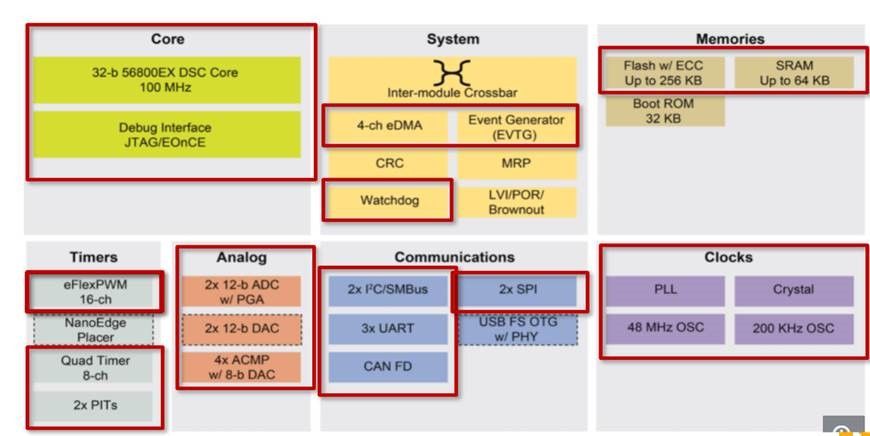

Multiple MCU peripherals and Drivers supported. The following subsystems highlighted in red as supported in Simulink environments in various forms: blocks, files, options

MC56F81xxx derivatives

MC56F83xxx derivatives

Basic and Advanced Simulink Block configuration modes via MCUXpresso Configuration Tools 10.0 UIs for Pins, Clocks, and Peripherals

MATLAB/Simulink versions 2020a – 2021b are supported for Design, Simulation, Code Generation, and Deployment of applications on MC56F81xxx and MC56F83xxx Series. Other MC56F8x devices will be supported in future versions of the toolbox.
Support for Software-in-Loop (SiL), Processor-in-Loop (PiL);

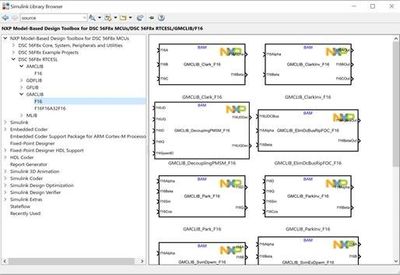

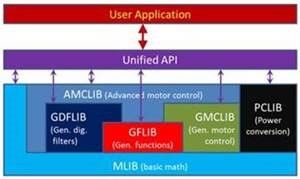

RTCESL – Real-Time Control Embedded Software Motor Control and Power Conversion Libraries for DSP568000E core.

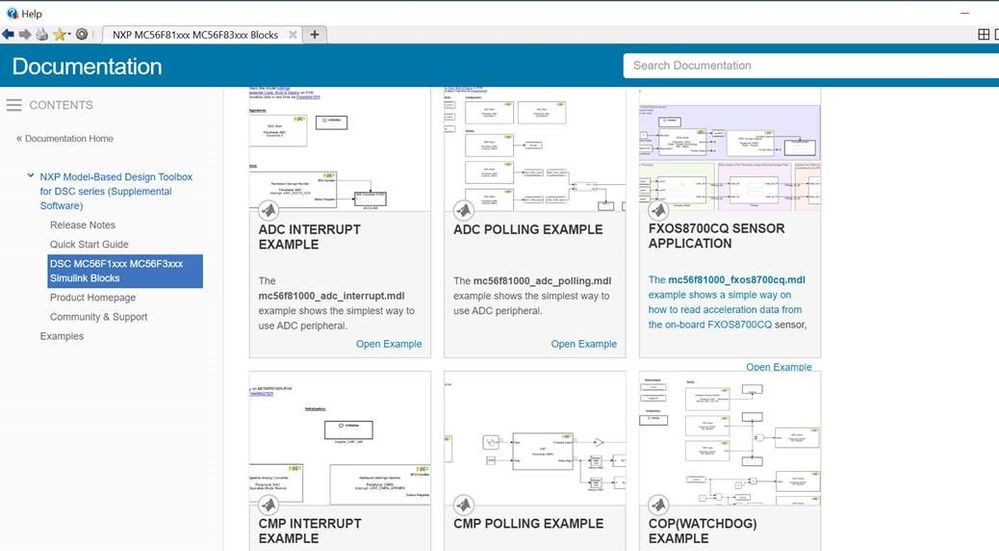

Simulink Example library with more than 100 models to showcase various functionalities:

Integrated PMSM Motor Control Sensor/Sensor-less application for MC56F83000-EVK:

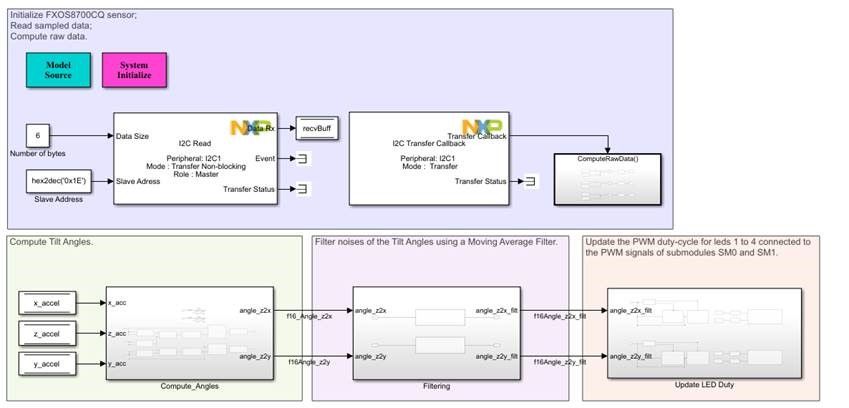

Integrated application that uses the on board FXOS8700CQ accelerometer and magnetometer sensor for both MC56F81000-EVK and MC56F83000-EVK.

Target Applications with MATLAB/Simulink

This release of the Model-Based Design Toolbox can be used to design, build, and test applications from multiple domains:

INDUSTRIAL

Target Audience

This release is intended for technology demonstration, evaluation purposes, and prototyping for DSC MC56F8x MCUs and their corresponding Evaluation Boards:

Useful Resources

Examples, Training, and Support: https://community.nxp.com/community/mbdt
