Part 1: Building the LED Panel [1]
Part 1: Building the LED Panel [1]
In this document you can find some pictures taken in the process of building the LED Panel.

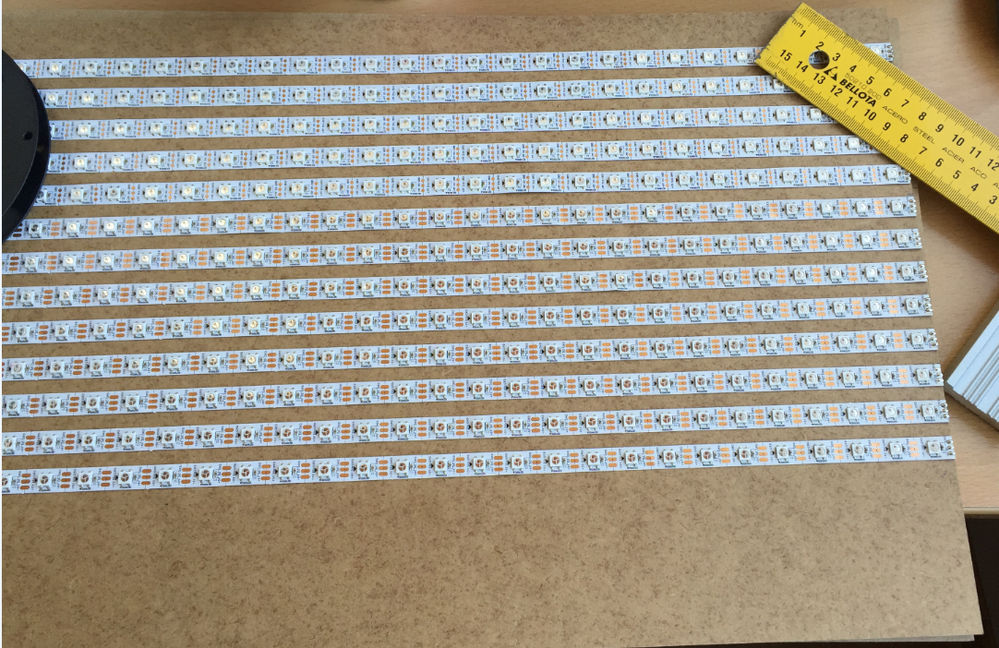

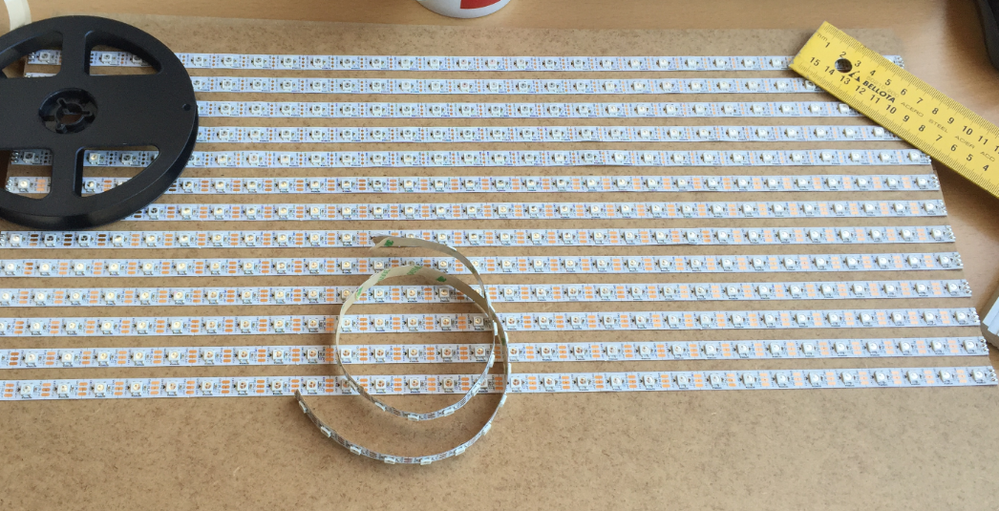

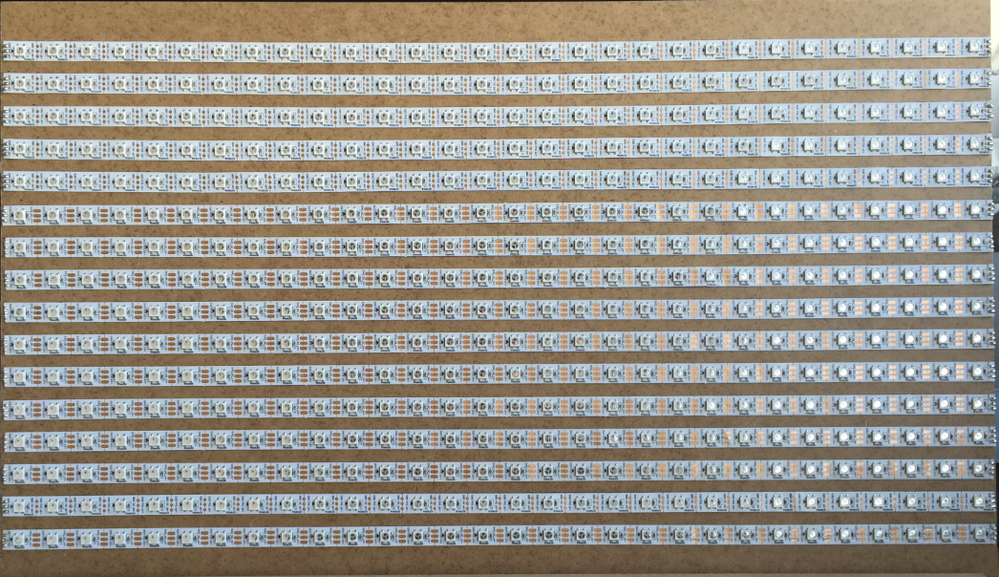

Mounting the LED's:

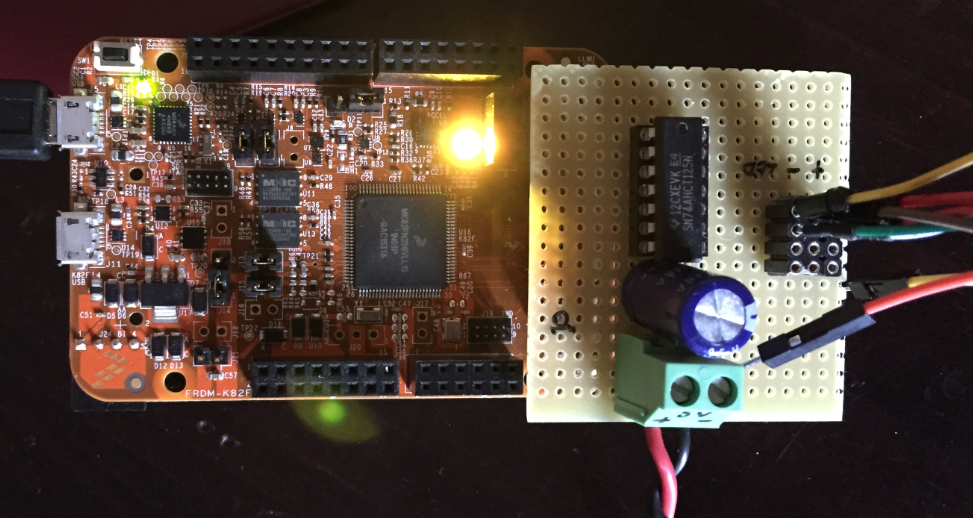

First prototype for controlling only one LED strip using Level Shifter 74AHCT125:
Final Panel:

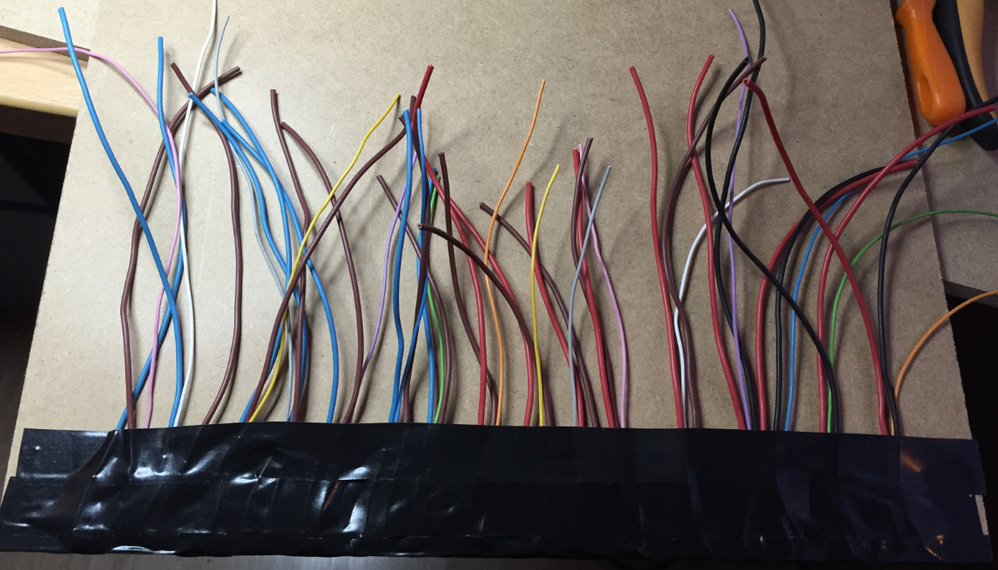

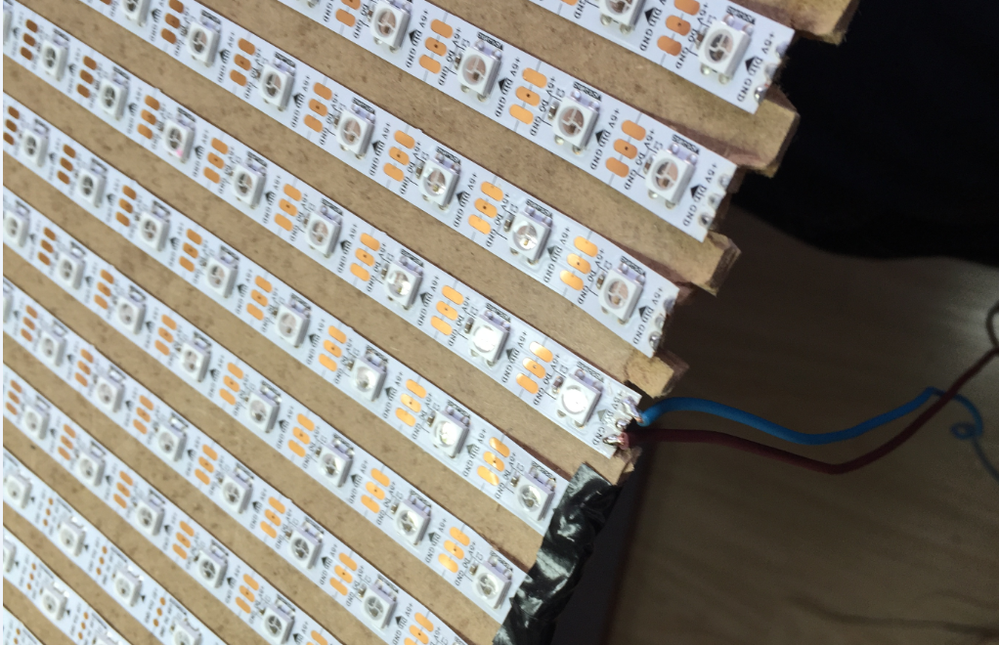

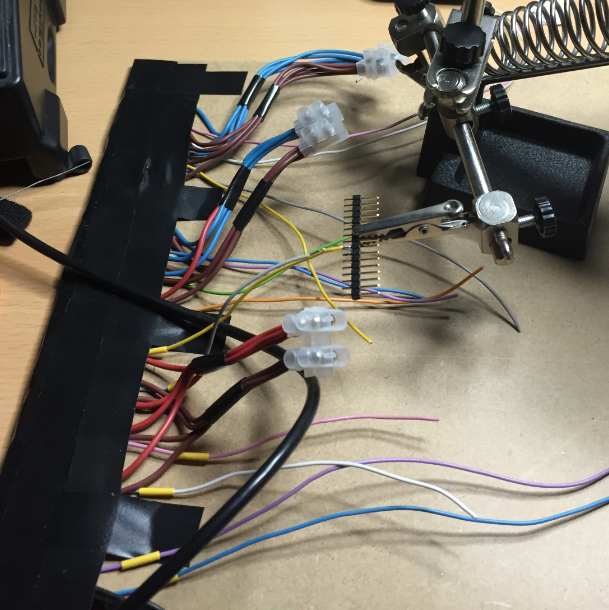

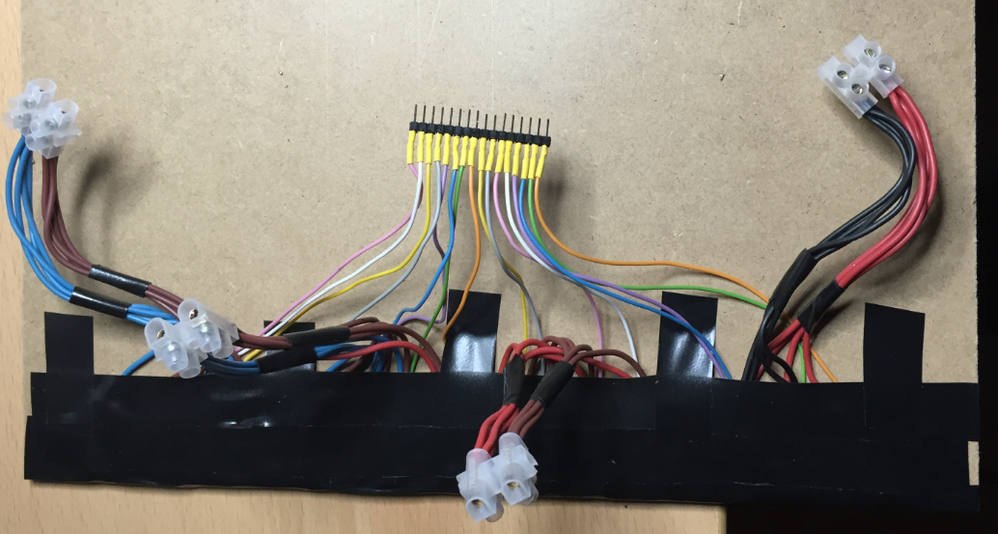

Wiring LED's:

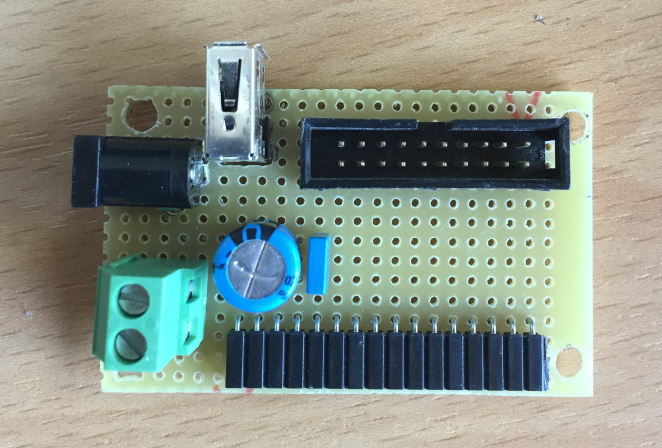

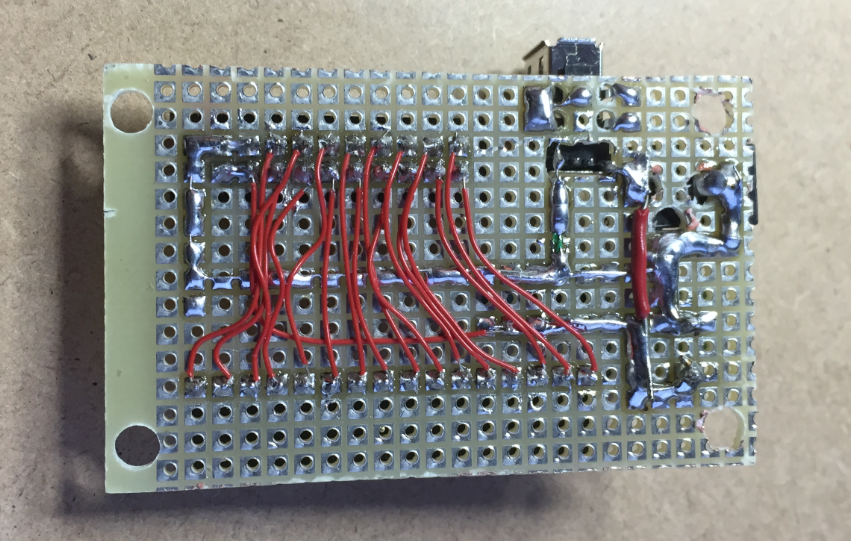

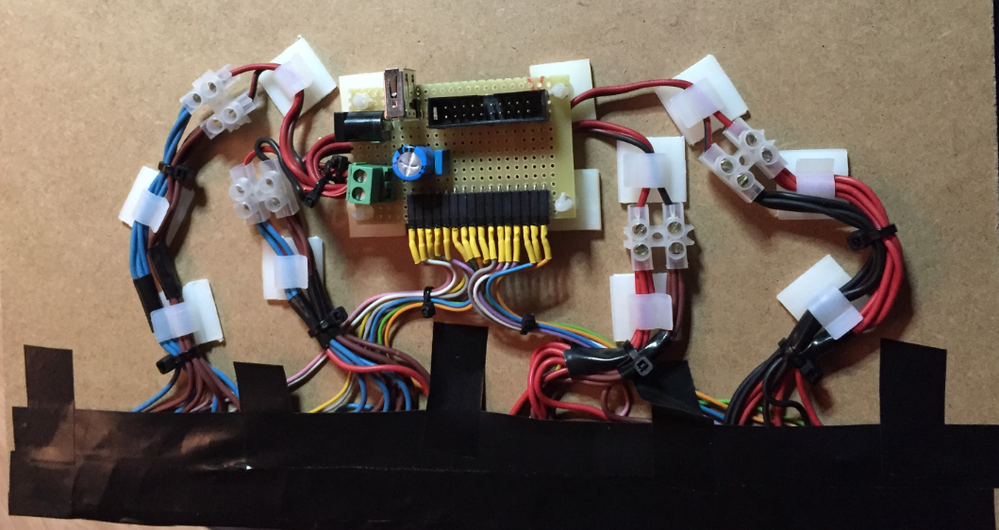

The interface board between LED stripes and the multiplexer board:
Interface board mounted:

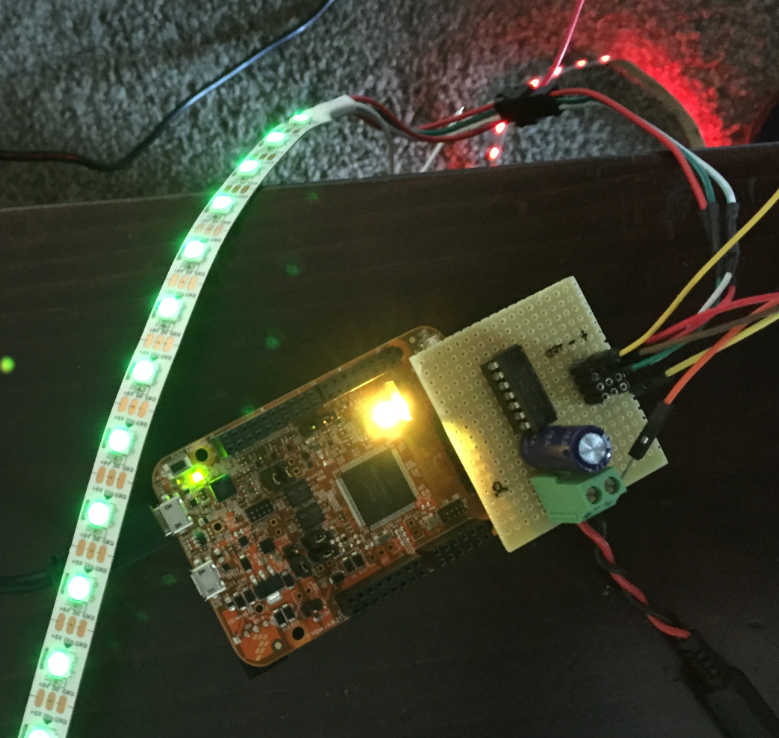

First test of the panel without multiplexer board :

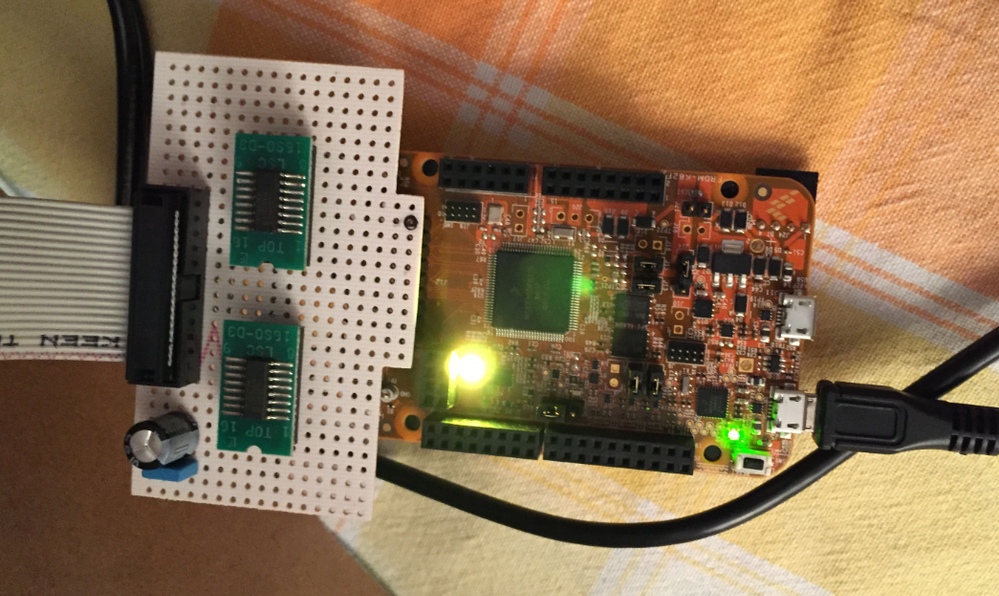

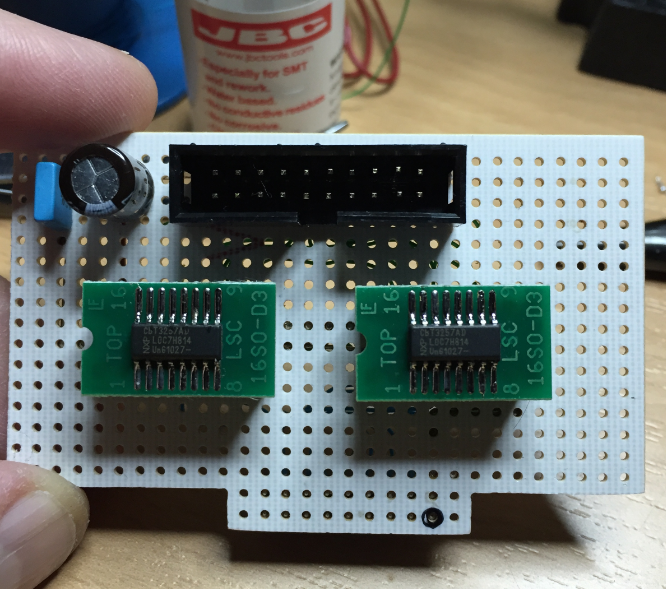

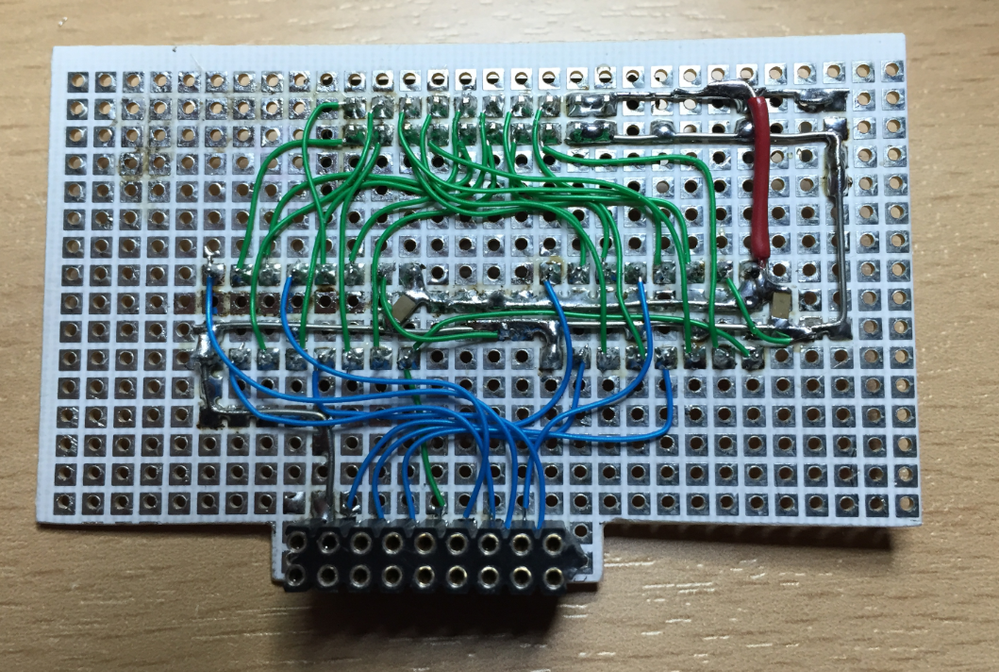

The multiplexer board using NXP CBT3257A:
Testing Mutiplexer board:

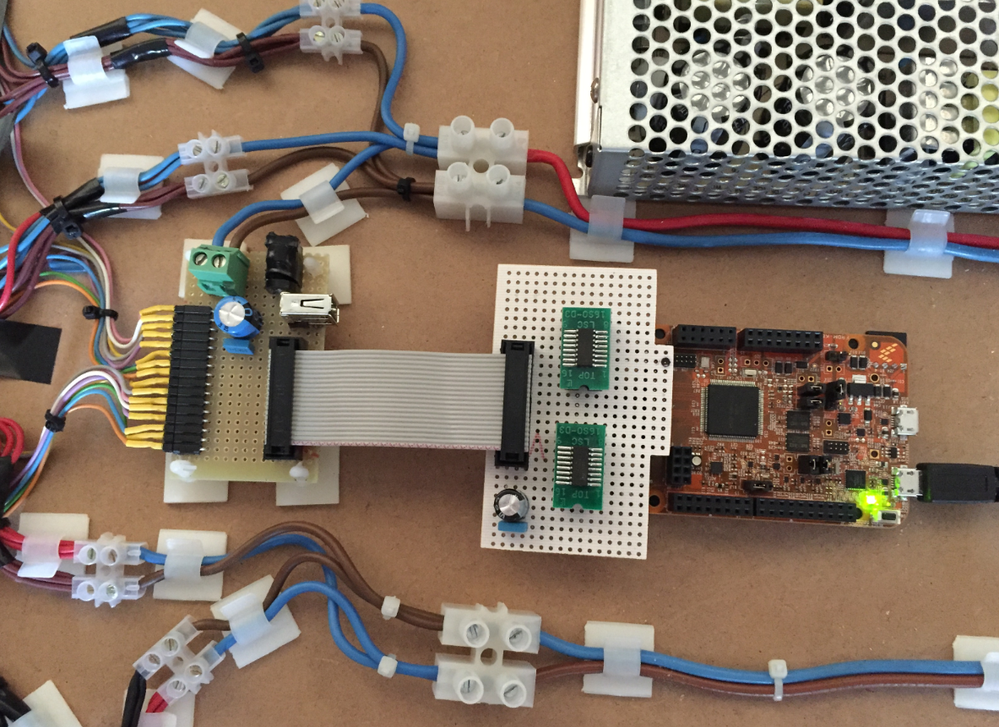

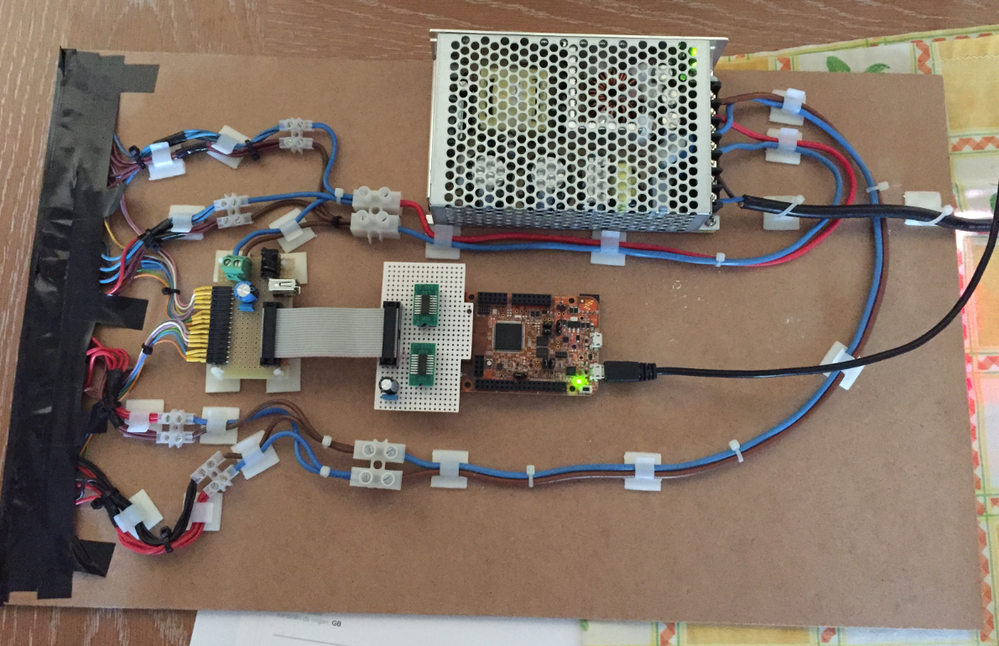

Adding the Power Supply and cables:

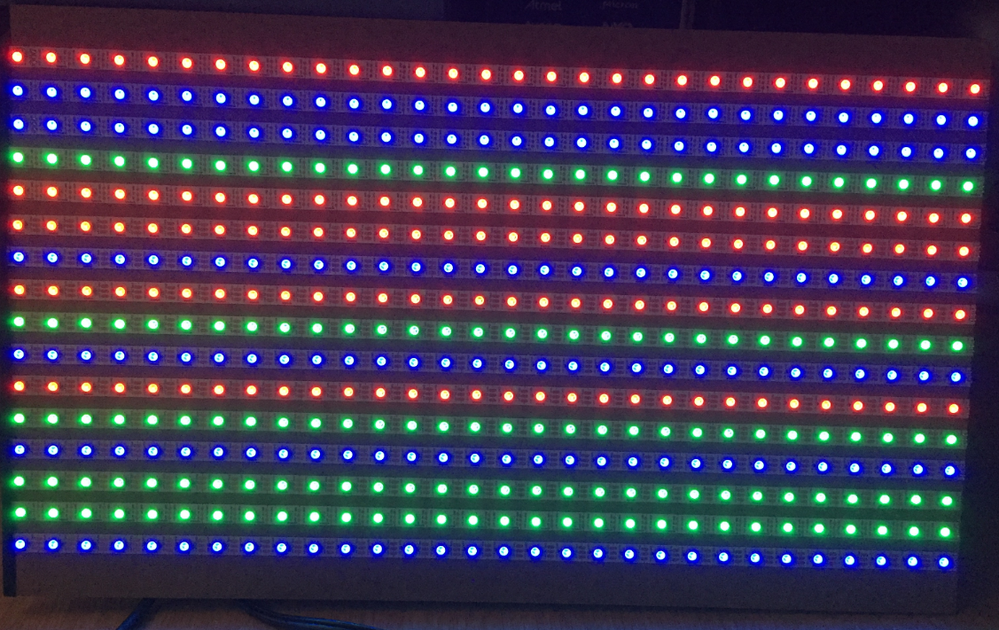

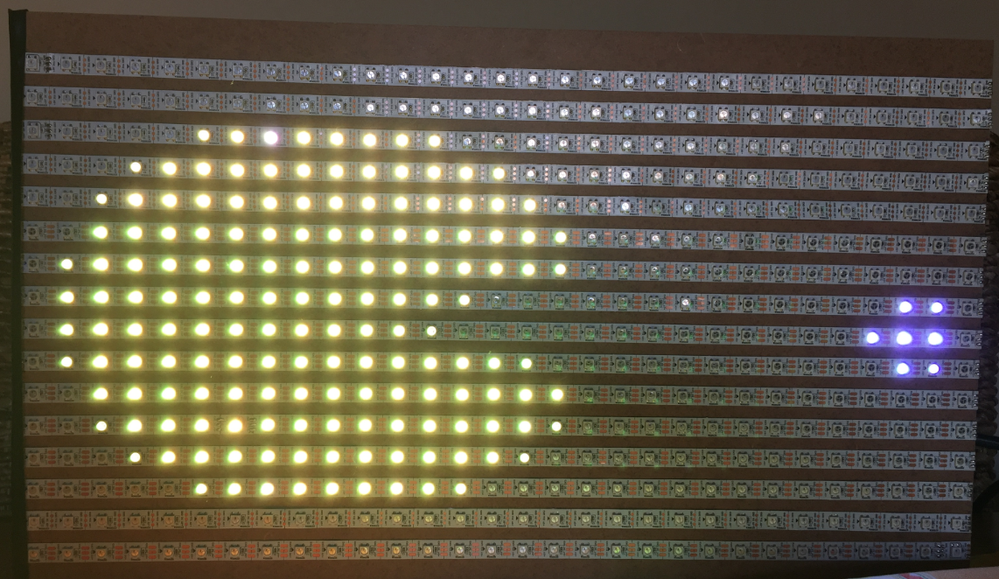

Panel Test:
Part 2: LED control method using the FlexIO
Or
Return to Project page: LED Panel control with FlexIO
