LS1021A IoT Gateway Reference Design

[#1]

LS1021A IoT Gateway Reference Design

• Included in Kit

  • Linux BSP and OpenWRT
  • Reference Design (schematics, layout and BOM available)
  • HW Quick Start Guide and User's Guide

This Product Is Probably of Interest If You:

• Need a ready to use high capability IoT Gateway Reference Platform

• Need built-in WiFi and Arduino connectivity

• Want a ready to manufacture HW design


Key HW Features:

• 1 Gb QSPI NOR Flash
• 1 GB DDR3L
• SDHC slot—up to 32 GB 4 GB populated
• 1x One Gb/s Ethernet (SGMII)
• 1x One Gb/s Ethernet (RGMII)
• 2x mini PCIe (x1) slots
• 1x mSATA slot
• 1x Terminal (USB to UART)
• x Four wire LP-UART to Arduino connector (Thread, ZigBee, Bluetooth, etc.)

• Muxed LCD/QE interface 24-bit LVDS LCD interface QE UART to header for PROFIBUS or RS485 (external transceiver required)

• USB 3.0 2x ports—USB-A 2x ports to mini PCIe slots

• 13x GPIO or 8x FTM (PWM)

• 6x Interrupts

• 1x SPI

• I2C1 bus Board EEPROM Boot EEPROM Arduino Connector Sensors/PHYs, etc., TBD

• I2C2 GPIO expansion ADC Sensors/PHYs, etc., TBD

• Certification: FCC Class B and CE

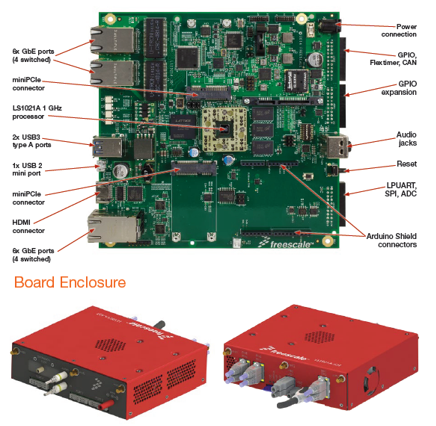

What this Product is All About

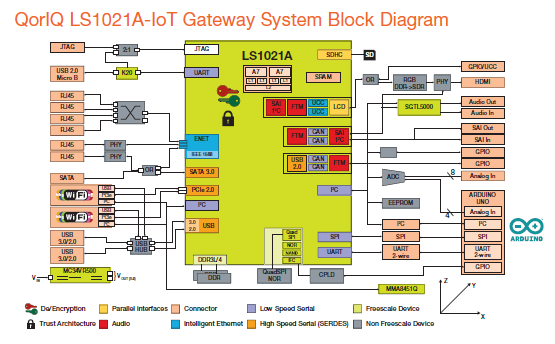

Product Diagram(s)

Click here to Buy the LS1021A IoT Gateway Reference Design

IoT Physical Components

Gateways

• SOC: QorIQ LS1021A
• Boards/Modules:
  • QorIQ LS1021A IoT Gateway Reference Design
  • FRDM-KW24D512
• Software:
  • Linux BSP
  • OpenWRT
