Complete AirBag System Solution

Complete NXP solution for Airbag systems including System Basis Chip, squib drivers, sensors, and MCUs.

Features

System created by NXP as a reference design
Speed time to market solution of airbag system
Reduce design risk and low BOM material cost
Complete turnkey solution

Product	Link
Airbag Evaluation Platform (PSI5)	Airbag Evaluation Platform (PSI5) \| NXP

Links

Software and hardware documentation

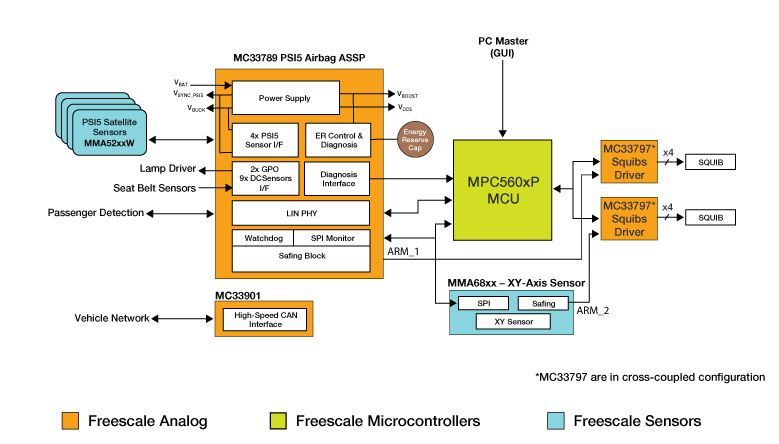

Block Diagram
