Description
NXP offers highly-reliable, 5V power supply MCUs, which are the perfect fit for motor control in environments with high-electrical noise such as the massage roller in a massage chair. The best motor control technique for this application is the 3-phase hall sensor PMSM motor control with field-oriented motor control.

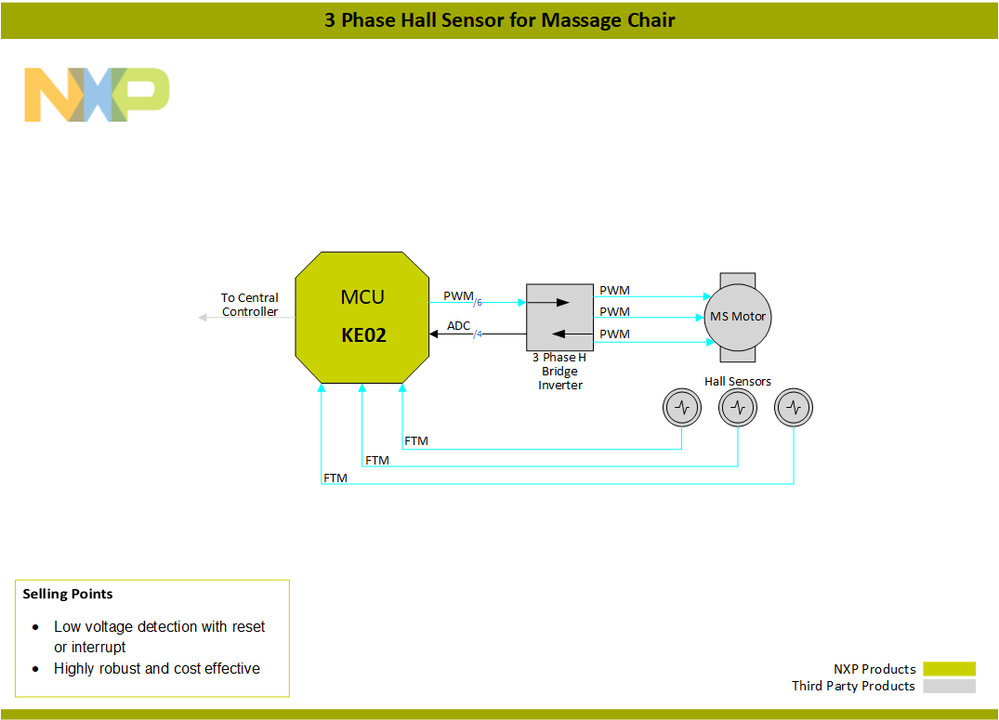

Block Diagram
![BlockDiagram-MassageChair-PNG[1].png](/t5/image/serverpage/image-id/94442i5FB8D50D49280F32/image-size/large?v=v2&px=999 "BlockDiagram-MassageChair-PNG[1].png")
Products
| Category Name 1 | MCU KE02-40 MHz |
|---|---|
| Product URL 1 | https://www.nxp.com/design/development-boards/freedom-development-boards/mcu-boards/freedom-developm... |
| Product Description 1 | The KE02-40MHz MCU includes one 6 channel FlexTimer. FlexTimers can generate four pairs of complementary PWM signals for edge-aligned, center-aligned and phase shift PWM signals. These features mask, invert and control the function for PMSM motors. In addition, the 5-volt capability gives this MCU high-reliability on applications used in high electrical noise environments. |
Related Documentation
| Document URL | Title |
|---|---|
| Sensorless PMSM Field-Oriented Control on Kinetis KV and KE | |
Low Cost PMSM Sensorless Field- Rev. 1, 05/2017 Application Note Oriented Control Based on KE02 | |
| Using FTM, PDB, and ADC on KE1xF to Drive Dual PMSM FOC and PFC | |
| Sinusoidal Control of BLDCM with Hall Sensors Based on FRDM-KE04Z and Tower Board |
Related Software
Related Demos from Communities
| Community Demos URL |
|---|
| https://community.nxp.com/thread/465280 |
| https://community.nxp.com/docs/DOC-101472 |
