The Pins tool included in the MCUXPresso Config Tools can help you configure routing of individual pins. It's also capable of configuring modulation features of certain peripherals.
Prerequisites
- MCUXpresso Config Tools OR MCUXpresso IDE
NXP Kinetis processor with LPTMR, UART, or FTM peripherals supporting signal modulation
- Toolchain project using the MCUXpresso Pins tool
Workflow
If you want to configure signal modulation for LPTMR, UART, and FTM peripherals, you can do so by using the SIM option.
- In the Pins tool, select the Peripheral Signals view.

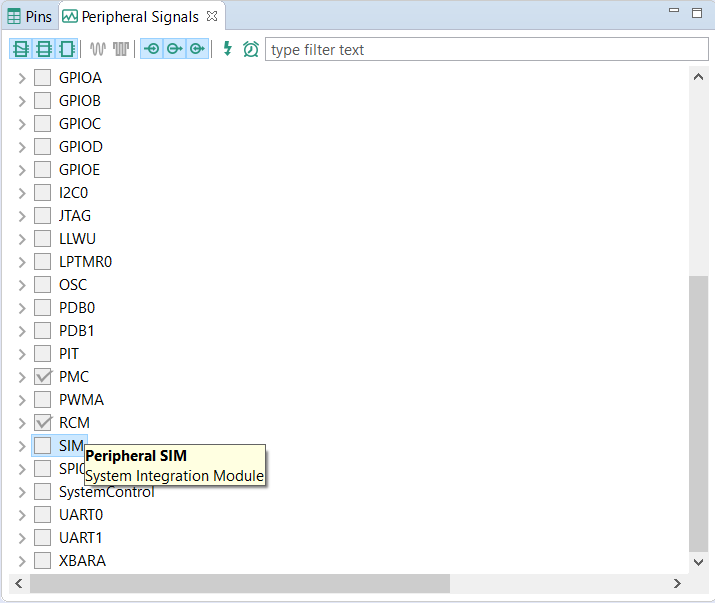

- From the list of peripheral signals, select SIM by clicking the box.

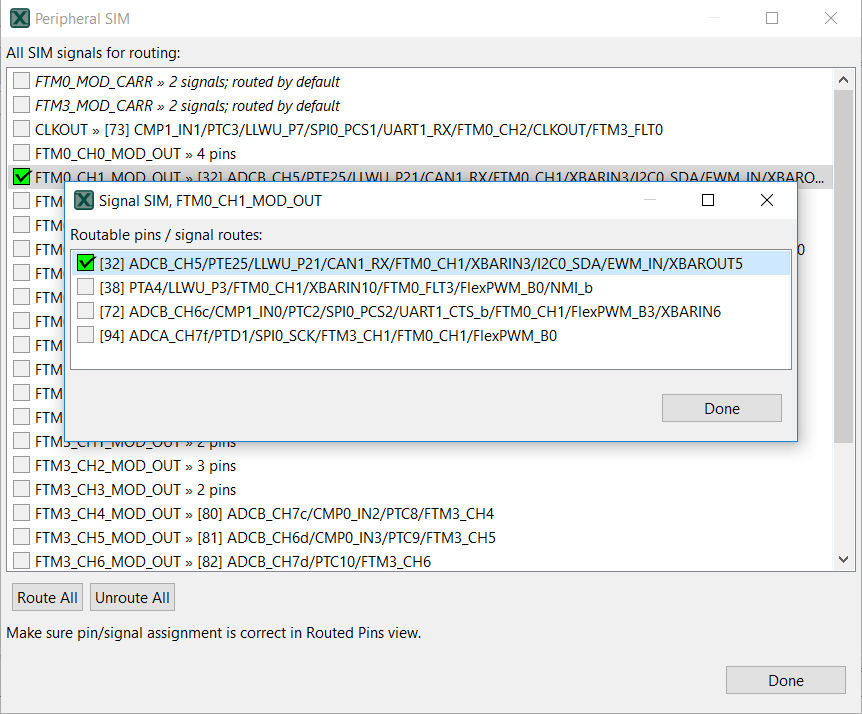

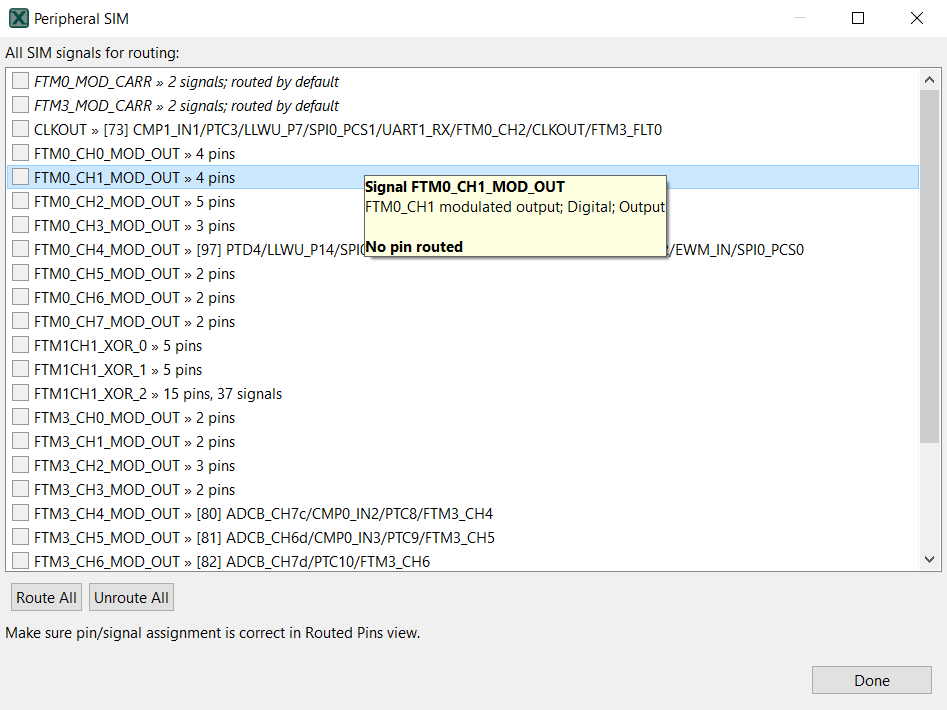

- In the Peripheral SIM window, choose the signal you want to route and the modulation signal. Signals available for modulations include the MOD string.
- In the Routable pins / signal routes, choose the pin / signal route.

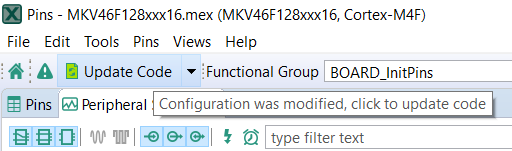

- Update code by clicking Update code and build with your IDE/toolchain.
