怎样确定LPC5514JBD64的第一个引脚

[thoomanwang]

LPC5514JBD100封装有1pin标识，64pin的封装根本没有标识，文档中也无说明，只能猜或试？？？做个标记或在文档中说明一下很难吗？。

[amrishhpuri]

I suspect that the chip used is not officially released，I have encountered such a situation on the mk10 chip.

hellodear.in

teatv download

[ZhangJennie]

Hi thoomanwang,

Please see datasheet, page 8,

https://www.nxp.com.cn/docs/en/nxp/data-sheets/LPC55S1x_LPC551x_DS.pdf

you will see

I don't have a LPC5514JBD64 in my hand now, but I just took a photo for LPC55S06JBD64, you will see pin 1 is labbled on the board. This is the same as LPC5514JBD64.

Thanks,

Jun Zhang

[thoomanwang]

 

[ZhangJennie]

Please let me know if you bought the part from offical distributor? please let me know the contact.

[thoomanwang]

mouser

[ZhangJennie]

There is cosmetic change to product appearance, customer should receive product change update doc. CIN 2022020171I. If you don't get it, please check with mouser.

[ZhangJennie]

HI thoomanwang

Thanks. Please refer my answer to use bottom left pin as first.

I will report it to doc team.

Thanks,

Jun Zhang

[thoomanwang]

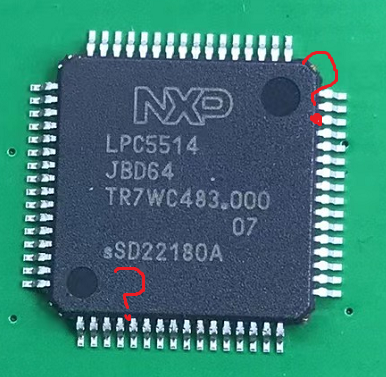

I tried four directions and couldn't identify them correctly.

[ZhangJennie]

How many parts shows like your picture?

This is abnormal. We may check the distributor and factory.

[thoomanwang]

I bought 10 ps for development.

[thoomanwang]

I only used 2 parts

I suspect that the chip used is not officially released，I have encountered such a situation on the mk10 chip.

thanks

[ZhangJennie]

If you buy the part from official distributor, they all official part. Please check the part with vendor.

[ZhangJennie · Accepted solution]

I have requested document team to improve the doc.
I will keep you informed.
