Product Release Announcement

Automotive Microcontrollers and Processors

NXP Model-Based Design Toolbox

for MPC57xx – version 3.0.0





Austin, Texas, USA

February 18, 2019

The Automotive Microcontrollers and Processors’ Model-Based Design Tools Team at NXP Semiconductors, is pleased to announce the release of the Model-Based Design Toolbox for MPC57xx version 3.0.0. This release supports automatic code generation for peripherals and applications prototyping from MATLAB/Simulink for NXP’s MPC574xB/C/G/P series.



FlexNet Location

https://nxp.flexnetoperations.com/control/frse/download?element=10769197



Activation link

https://nxp.flexnetoperations.com/control/frse/download?element=10769197



Technical Support

NXP Model-Based Design Toolbox for MPC57xx issues are tracked through NXP Model-Based Design Tools Community space.

https://community.nxp.com/community/mbdt



Release Content

  • Automatic C code generation based on PA SDK 2.0.0 RTM drivers from MATLAB®/Simulink® for NXP MPC574xB/C/G/P derivatives:
  • MPC5744B, MPC5745B, MPC5746B                                                (*new)
  • MPC5744C, MPC5745C, MPC5746C, MPC5747C, MPC5748C      (*new)
  • MPC5746G, MPC5747G, MPC5748G                                               (*new)
  • MPC5741P, MPC5742P, MPC5743P, MPC5744P                             (*upd)

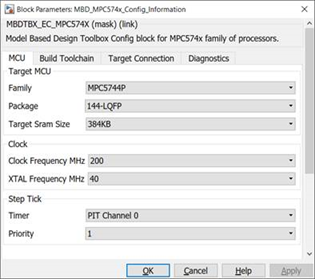

  • Multiple options for MCU packages, Build Toolchains and embedded Target Connections are available via Model-Based Design Toolbox MPC574x Simulink main configuration block


  • Enhanced user experience with a complete redesign of all Simulink Library blocks compared with v.2.0.0 to support:
  • Similar look & feel with Model-Based Design Toolbox for S32K14x Series
  • Basic and Advanced configurations modes based on PA SDK 2.0.0 RTM standard API
  • Integration with MathWorks SW environment: Installer, Help and online Add-on Manager for distribution and installation

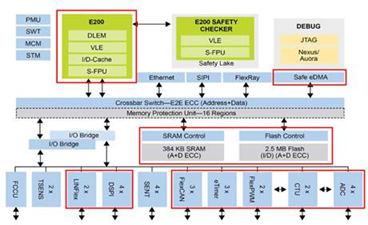

  • MPC574xP Ultra-Reliable MCU for Automotive & Industrial Safety Applications and MPC574xB/C/G Ultra-Reliable MCUs for Automotive & Industrial Control and summary of the peripherals coverage by Model-Based Design version 3.0.0 is highlighted in red:




  • Redesigned the main Simulink Embedded Target library for supporting future additions for other MPC57xx derivatives, Automotive Math and Motor Control Libraries and MPC57xx Examples:

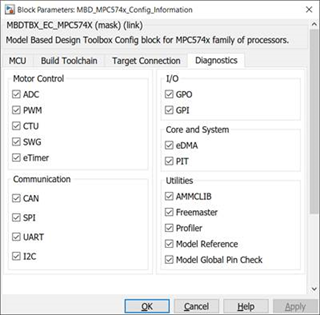

  • Implement communication port auto discovery to allow easy configuration for downloading the generated code to NXP targets and new Diagnostic options to helps with model creation or migration.

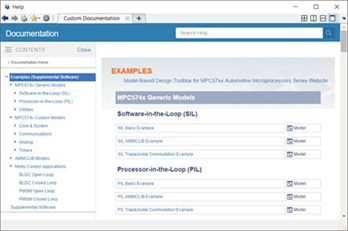

  • 100% MPC574x supported peripheral coverage with examples. Currently there are 102 examples available as part of the toolbox that exercise all the functionalities supported. The examples are grouped into two categories:

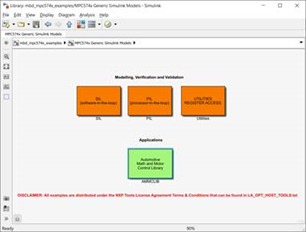

  • MPC574x Generic examples that can be run on any of the MPC574x Evaluation Boards

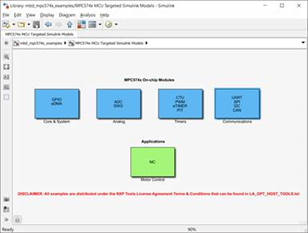

  • MPC574x Targeted examples that are configured for a single target (e.g.: might contains peripherals that are available only on a specific target)


  • Motor Control examples for PMSM and BLDC based on FOC and 6-step commutation with Closed and Open loop control


  • Enable MATLAB code profiler for NXP targets for measuring the function execution time using Software -in-the-Loop or Processor-in-the-Loop modes

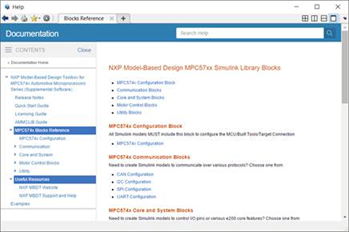

For more details, features and how to use the new functionalities, please refer to the Release Notes and Quick Start Guide documents attached.



MATLAB® Integration

The NXP Model-Based Design Toolbox extends the MATLAB® and Simulink® experience by allowing customers to evaluate and use NXP’s MPC57xx MCUs and evaluation boards solutions out-of-the-box with:

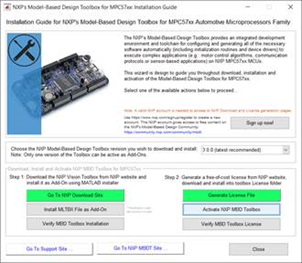

  • NXP Support Package for MPC57xx Online Installer Guide Add-on allows users to install NXP solution directly from the Mathwork’s website or directly from MATLAB IDE. The Support Package provide a step-by-step guide for installation and verification.





Target Audience

This release (v.3.0.0) is intended for technology demonstration, evaluation purposes and prototyping for MPC574xB/C/G/P MCUs and their corresponding Evaluation Boards:

  • DEVKIT-MPC5744P PCB RevX1 SCH RevB
  • DEVKIT-MPC5748G PCB RevA SCH RevB
  • Daughter Card MPC574XG-256DS RevB
  • Daughter Card X-MPC574XG-324DS RevA
  • Daughter Card MPC5744P-257DS RevB1
  • Daughter Card SPC5746CSK1MKU6
  • Motherboard X-MPC574XG-MB RevD
  • Motherboard MPC57XX RevC
