 The purpose of this demo application is to present a usage of the
MEM_InFls MCAL Driver for the S32K3xx MCU.

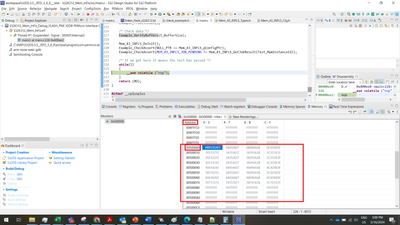

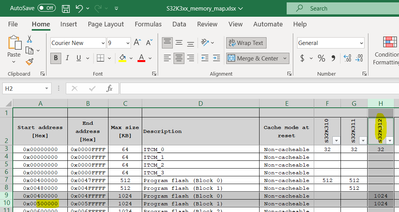

 The example uses MEM_InFls driver to write 128 bytes to FLASH memory address  0x50_0000 .


 ------------------------------------------------------------------------------
* Test HW: S32K3X2EVB-Q172
* MCU: S32K312
* Compiler: S32DS3.5
* SDK release: RTD 3.0.0
* Debugger: PE micro
* Target: internal_FLASH
********************************************************************************



Results :--



Ram location where FLASH writing erase code is placed :--

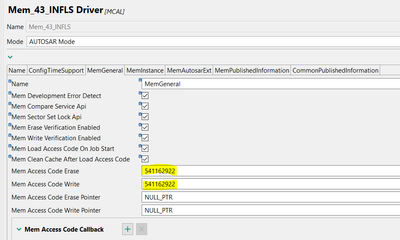

I placed the code at 256 byte below the MAX address of the RAM size
0x20417DAA = 541162922








Size of RAM need to save the flashing routine, as per the MAP & linker file :--
0x00407e64 - 0x00407e38 = 44 bytes

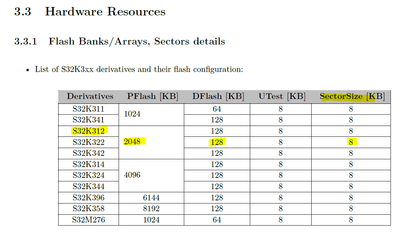

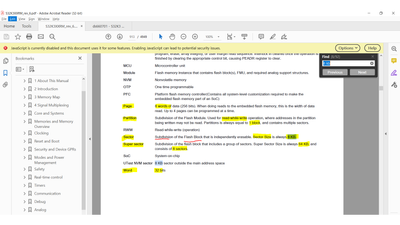

 S32K3 FLASH Memory Terminology :--
