I am trying to use a Segger J-Link debugger with ‘S32 Design Studio for Arm IDE’.
I am using a ‘UCANS32K146’ evaluation board which has a S32K146 processor.

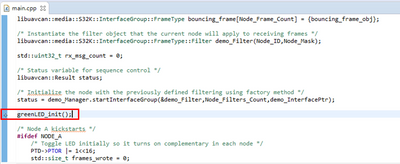

I set a breakpoint as shown...
But the debugger does not seem to run to or stop at the break point, it seems to be in reset ?
Below is a copy of the console messages...
SEGGER J-Link GDB Server V6.42a Command Line Version JLinkARM.dll V6.42a (DLL compiled Feb 1 2019 18:00:08) Command line: -if swd -device S32K146 -endian little -speed 1000 -port 2331 -swoport 2332 -telnetport 2333 -vd -ir -localhostonly 1 -singlerun -strict -timeout 0 -nogui -----GDB Server start settings----- GDBInit file: none GDB Server Listening port: 2331 SWO raw output listening port: 2332 Terminal I/O port: 2333 Accept remote connection: localhost only Generate logfile: off Verify download: on Init regs on start: on Silent mode: off Single run mode: on Target connection timeout: 0 ms ------J-Link related settings------ J-Link Host interface: USB J-Link script: none J-Link settings file: none ------Target related settings------ Target device: S32K146 Target interface: SWD Target interface speed: 1000kHz Target endian: little Connecting to J-Link... J-Link is connected. Firmware: J-Link V10 compiled Jan 30 2023 11:28:07 Hardware: V10.10 S/N: 50116597 Feature(s): GDB Checking target voltage... Target voltage: 3.27 V Listening on TCP/IP port 2331 Connecting to target...Connected to target Waiting for GDB connection...Connected to 127.0.0.1 Reading all registers Read 4 bytes @ address 0x00000000 (Data = 0xFFFFFFFF) Read 2 bytes @ address 0x00000000 (Data = 0xFFFF) Received monitor command: speed 1000 Target interface speed set to 1000 kHz Received monitor command: clrbp Received monitor command: reset Resetting target Received monitor command: halt Halting target CPU... ...Target halted (PC = 0xFFFFFFFE) Received monitor command: regs R0 = 00000000, R1 = 00000000, R2 = 00000000, R3 = 00000000 R4 = 00000000, R5 = 00000000, R6 = 00000000, R7 = 00000000 R8 = 00000000, R9 = 00000000, R10= 00000000, R11= 00000000 R12= 00000000, R13= FFFFFFFC, MSP= FFFFFFFC, PSP= 00000000 R14(LR) = FFFFFFFF, R15(PC) = FFFFFFFE XPSR 01000000, APSR 00000000, EPSR 01000000, IPSR 00000000 CFBP 00000000, CONTROL 00, FAULTMASK 00, BASEPRI 00, PRIMASK 00 Reading all registers WARNING: Failed to read memory @ address 0xFFFFFFFE Received monitor command: speed auto Select auto target interface speed (2000 kHz) Received monitor command: flash breakpoints 1 Flash breakpoints enabled Received monitor command: semihosting enable Semi-hosting enabled (Handle on BKPT) Received monitor command: semihosting IOClient 1 Semihosting I/O set to TELNET Client Received monitor command: SWO DisableTarget 0xFFFFFFFF SWO disabled successfully. Received monitor command: SWO EnableTarget 0 0 0x1 0 Failed to enable SWO. Could not measure target CPU frequency. Read 2 bytes @ address 0x0000C5C8 (Data = 0x0000) Read 2 bytes @ address 0x000070F0 (Data = 0x0000) Read 4 bytes @ address 0xFFFFFFFE (Data = 0x00000000) Read 2 bytes @ address 0xFFFFFFFE (Data = 0x0000) Downloading 1024 bytes @ address 0x00000000 - Verified OK Downloading 16 bytes @ address 0x00000400 - Verified OK Downloading 15888 bytes @ address 0x00000410 - Verified OK Downloading 15872 bytes @ address 0x00004220 - Verified OK Downloading 16064 bytes @ address 0x00008020 - Verified OK Downloading 15920 bytes @ address 0x0000BEE0 - Verified OK Downloading 7392 bytes @ address 0x0000FD10 - Verified OK Downloading 1004 bytes @ address 0x000119F0 - Verified OK Downloading 960 bytes @ address 0x00011DDC - Verified OK Downloading 16 bytes @ address 0x0001219C - Verified OK Downloading 8 bytes @ address 0x000121AC - Verified OK Downloading 2472 bytes @ address 0x000121B4 - Verified OK WARNING: CPU could not be halted ERROR: Failed to download RAMCode. Failed to prepare for programming. Failed to download RAMCode! Can not read register 16 (XPSR) while CPU is running Can not read register 20 (CFBP) while CPU is running Can not read register 0 (R0) while CPU is running Can not read register 1 (R1) while CPU is running Can not read register 2 (R2) while CPU is running Can not read register 3 (R3) while CPU is running Can not read register 4 (R4) while CPU is running Can not read register 5 (R5) while CPU is running Can not read register 6 (R6) while CPU is running Can not read register 7 (R7) while CPU is running Can not read register 8 (R8) while CPU is running Can not read register 9 (R9) while CPU is running Can not read register 10 (R10) while CPU is running Can not read register 11 (R11) while CPU is running Can not read register 12 (R12) while CPU is running Can not read register 14 (R14) while CPU is running Can not read register 15 (R15) while CPU is running Can not read register 17 (MSP) while CPU is running Can not read r Writing register (PC = 0x 528) Read 2 bytes @ address 0x0000C5C8 (Data = 0x0000) Read 2 bytes @ address 0x000070F0 (Data = 0x0000) Read 4 bytes @ address 0x00000528 (Data = 0x00000000) Read 2 bytes @ address 0x00000528 (Data = 0x0000) Read 2 bytes @ address 0x0000B2E2 (Data = 0x0000) Read 2 bytes @ address 0x0000B364 (Data = 0x0000) Received monitor command: clrbp Received monitor command: reset Resetting target Received monitor command: halt Halting target CPU... ...Target halted (PC = 0xFFFFFFFE) Read 2 bytes @ address 0x0000B2E2 (Data = 0xFFFF) Read 2 bytes @ address 0x0000B2E2 (Data = 0xFFFF) Read 2 bytes @ address 0x0000B2E2 (Data = 0xFFFF) Received monitor command: regs R0 = 00000000, R1 = 00000000, R2 = 00000000, R3 = 00000000 R4 = 00000000, R5 = 00000000, R6 = 00000000, R7 = 00000000 R8 = 00000000, R9 = 00000000, R10= 00000000, R11= 00000000 R12= 00000000, R13= FFFFFFFC, MSP= FFFFFFFC, PSP= 00000000 R14(LR) = FFFFFFFF, R15(PC) = FFFFFFFE XPSR 01000000, APSR 00000000, EPSR 01000000, IPSR 00000000 CFBP 00000000, CONTROL 00, FAULTMASK 00, BASEPRI 00, PRIMASK 00 Reading all registers WARNING: Failed to read memory @ address 0xFFFFFFFE Setting breakpoint @ address 0x0000B2E2, Size = 2, BPHandle = 0x0001 Setting breakpoint @ address 0x0000B364, Size = 2, BPHandle = 0x0002 Starting target CPU... Debugger requested to halt target... WARNING: CPU could not be halted Reading all registers WARNING: CPU could not be halted ERROR: Can not read register 0 (R0) while CPU is running ERROR: Can not read register 1 (R1) while CPU is running ERROR: Can not read register 2 (R2) while CPU is running ERROR: Can not read register 3 (R3) while CPU is running ERROR: Can not read register 4 (R4) while CPU is running ERROR: Can not read register 5 (R5) while CPU is running ERROR: Can not read register 6 (R6) while CPU is running ERROR: Can not read register 7 (R7) while CPU is running ERROR: Can not read register 8 (R8) while CPU is running ERROR: Can not read register 9 (R9) while CPU is running ERROR: Can not read register 10 (R10) while CPU is running ERROR: Can not read register 11 (R11) while CPU is running ERROR: Can not read register 12 (R12) while CPU is running ERROR: Can not read register 13 (R13) while CPU is running ERROR: Can not read register 14 (R14) while CPU is running ERROR: Can not read register 15 (R15) while CPU is running ERROR: Can not read register 16 (XPSR) while CPU is running ERROR: Can not read register 17 (MSP) while CPU is running ERROR: Can not read register 18 (PSP) while CPU is running ERROR: Can not read register 24 (PRIMASK) while CPU is running ERROR: Can not read register 25 (BASEPRI) while CPU is running ERROR: Can not read register 26 (FAULTMASK) while CPU is running ERROR: Can not read register 27 (CONTROL) while CPU is running ERROR: Can not read register 32 (FPSCR) while CPU is running ERROR: Can not read register 33 (FPS0) while CPU is running ERROR: Can not read register 34 (FPS1) while CPU is running ERROR: Can not read register 35 (FPS2) while CPU is running ERROR: Can not read register 36 (FPS3) while CPU is running ERROR: Can not read register 37 (FPS4) while CPU is running ERROR: Can not read register 38 (FPS5) while CPU is running ERROR: Can not read register 39 (FPS6) while CPU is running ERROR: Can not read register 40 (FPS7) while CPU is running ERROR: Can not read register 41 (FPS8) while CPU is running ERROR: Can not read register 42 (FPS9) while CPU is running ERROR: Can not read register 43 (FPS10) while CPU is running ERROR: Can not read register 44 (FPS11) while CPU is running ERROR: Can not read register 45 (FPS12) while CPU is running ERROR: Can not read register 46 (FPS13) while CPU is running ERROR: Can not read register 47 (FPS14) while CPU is running ERROR: Can not read register 48 (FPS15) while CPU is running ERROR: Can not read register 49 (FPS16) while CPU is running ERROR: Can not read register 50 (FPS17) while CPU is running ERROR: Can not read register 51 (FPS18) while CPU is running ERROR: Can not read register 52 (FPS19) while CPU is running ERROR: Can not read register 53 (FPS20) while CPU is running ERROR: Can not read register 54 (FPS21) while CPU is running ERROR: Can not read register 55 (FPS22) while CPU is running ERROR: Can not read register 56 (FPS23) while CPU is running ERROR: Can not read register 57 (FPS24) while CPU is running ERROR: Can not read register 58 (FPS25) while CPU is running ERROR: Can not read register 59 (FPS26) while CPU is running ERROR: Can not read register 60 (FPS27) while CPU is running ERROR: Can not read register 61 (FPS28) while CPU is running ERROR: Can not read register 62 (FPS29) while CPU is running ERROR: Can not read register 63 (FPS30) while CPU is running ERROR: Can not read register 64 (FPS31) while CPU is running ERROR: Can not read register 15 (R15) while CPU is running ERROR: Can not read register 16 (XPSR) while CPU is running ERROR: Can not read register 17 (MSP) while CPU is running ERROR: Can not read register 18 (PSP) while CPU is running ERROR: Can not read register 19 (RAZ) while CPU is running ERROR: Can not read register 20 (CFBP) while CPU is running ERROR: Can not read register 21 (APSR) while CPU is running ERROR: Can not read register 22 (EPSR) while CPU is running ERROR: Can not read register 23 (IPSR) while CPU is running ERROR: Can not read register 24 (PRIMASK) while CPU is running ERROR: Can not read register 25 (BASEPRI) while CPU is running ERROR: Can not read register 26 (FAULTMASK) while CPU is running ERROR: Can not read register 27 (CONTROL) while CPU is running ERROR: Can not read register 28 (BASEPRI_MAX) while CPU is running ERROR: Can not read register 29 (IAPSR) while CPU is running ERROR: Can not read register 30 (EAPSR) while CPU is running ERROR: Can not read register 31 (IEPSR) while CPU is running ERROR: Can not read register 32 (FPSCR) while CPU is running ERROR: Can not read register 33 (FPS0) while CPU is running ERROR: Can not read register 34 (FPS1) while CPU is running ERROR: Can not read register 35 (FPS2) while CPU is running ERROR: Can not read register 36 (FPS3) while CPU is running ERROR: Can not read register 37 (FPS4) while CPU is running ERROR: Can not read register 38 (FPS5) while CPU is running ERROR: Can not read register 39 (FPS6) while CPU is running ERROR: Can not read register 40 (FPS7) while CPU is running ERROR: Can not read register 41 (FPS8) while CPU is running ERROR: Can not read register 42 (FPS9) while CPU is running ERROR: Can not read register 43 (FPS10) while CPU is running ERROR: Can not read register 44 (FPS11) while CPU is running ERROR: Can not read register 45 (FPS12) while CPU is running ERROR: Can not read register 46 (FPS13) while CPU is running Read 4 bytes @ address 0xDEADBEEE (Data = 0x00000000) WARNING: Failed to read memory @ address 0xDEADBEEF Removing breakpoint @ address 0x0000B2E2, Size = 2 Removing breakpoint @ address 0x0000B364, Size = 2 Read 2 bytes @ address 0x0000B2E2 (Data = 0x0000) Read 2 bytes @ address 0x0000B2EC (Data = 0x0000) Setting breakpoint @ address 0x0000B2E2, Size = 2, BPHandle = 0x0003 Setting breakpoint @ address 0x0000B2EC, Size = 2, BPHandle = 0x0004 Setting breakpoint @ address 0x0000B364, Size = 2, BPHandle = 0x0005 Starting target CPU...
The Segger control panel shows the following...
The LED on the Segger looks to be orange/red (its hard to tell) which means its either in reset or there's a fault.

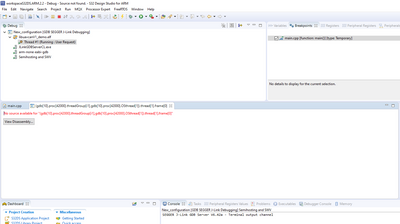

A screenshot of the IDE during debugging is shown below...
I was expecting the IDE to stop at that breakpoint so I could step through the lines of code.
1 Solution
Thanks Daniel
I installed the correct SDK...
And used the can_pal_s32k146 example and this worked correctly (after a few minor tweaks to the software)...
Thanks for your help
Hi,
Thanks for your feedback.
Since UCAN board seems to have a different connector, could be that the pin mapping of the debugger is not as the UCAN needs it.
Can you help us probe the S32_RST_N signal when you try to use the JLink? Below will be an image of the schematic:
You could probe the signal wherever you have access to. If the RST signal is being controlled by the JLink, then you should see a toggle on the RST signal.
Also, are you using an example for this?
Please, let us know.
I build as shown in the screenshot below (Node_A_Debug)...

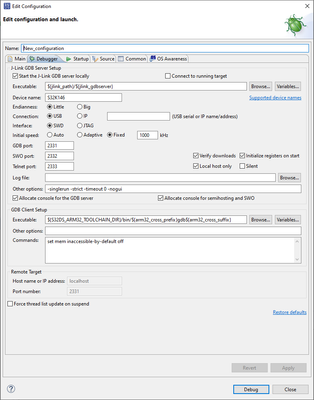

The "Main", "Debugger" and "Startup" tabs inside the debug settings is shown below...
I downloaded and installed "S32_SDK_S32K1xx_RTM_4.0.3" and imported the example '\adc_low_power' but this won't even build as it gives the error "/bin/sh: arm-none-eabi-gcc: command not found"...
It shouldn't be this difficult to get example code working on a development board !
Could someone from NXP contact me to arrange a screen share session to help resolve the problem ?
Hi,
Thanks for your feedback.
The SDK that you are trying to import into S32DS for ARM v2.2 is not compatible with that IDE, it is compatible with S32 Design Studio v3.4. That should be why you are seeing that error.
The one that it is compatible with S32DS for ARM v2.2 should be provided with the IDE, image below:
Within the examples provided with the SDK, the following configurations should be provided:
In our specific case, we use the FreeRTOS project as an example. This should be ready to use.
Please, let us know.
Thanks Daniel
I installed the correct SDK...
And used the can_pal_s32k146 example and this worked correctly (after a few minor tweaks to the software)...
Thanks for your help
