Vending machine Wholesaler

[#1]

Overview

With this application we create a proposal to automate the click and collect service in the wholesale warehouses, taking into account the operation as a large vending machine.

Working as a vending machine, it has the characteristic of managing inventories, modules for secure connection to a server to receive orders and at the same time make re-stock orders, nfc reader modules to read wholesale customer cards. All this driven internally by a system of conveyor belts managed by motors.

With current technologies we can present the evolution of wineries to Industry 4.0 powered by NXP.

We have a control by sections managed by a main controller, we have the following sections:

• Inventory reception: It consists of a reader of an NFC tag or a QR code to read the product and be able to move it to its corresponding storage section
• Inventory management: Connection to the cloud to be monitoring in real time to use algorithms handling orders, inputs and outputs
• Internal logistics: It consists of motor control by section for the mobility and arrangement of articles. It uses sensors for safety in mobility and accident prevention.
• Customer interface: NFC or QR code reader for package pickup reading indicator, touch screen to display data and customer confirmation.

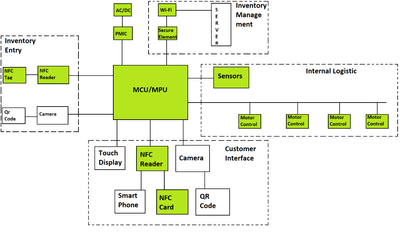

Block Diagram

Products

MCU	Link
i.MX RT1060	i.MX RT1060 Crossover MCU with Arm® Cortex®-M7 Core

Wireless	Link
Wi-Fi	88W8801: 2.4 GHz Single-Band 1x1 Wi-Fi® 4 (802.11n) Solution
NFC Reader	PN7462: NFC Cortex®-M0 All-in-One Microcontroller with Optional Contact Interface for Access Control
NFC Tag	NTAG213F, NTAG216F: NFC Forum Type 2 Tag Compliant IC with 144/888 B User Memory and Field Detection

Secure Element	Link
EdgeLock™ SE051	EdgeLock™ SE051: Proven, Easy-to-Use IoT Security Solution with Support for Updatability and Custom ...

Power Management	Link
PMIC	PCA9420: PMIC for Low Power Applications
AC-DC Controller	TEA19161T: Resonant Power Supply Control IC

Sensors	Link
Accelerometer	MMA8450Q: ±2g/±4g/±8g, Low g, Digital Accelerometer
Temperature sensor	PCT2075: I2C-Bus Fm+, 1 Degree C Accuracy, Digital Temperature Sensor And Thermal Watchdog

Motor Driver	Link
HB2001	HB2001: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Demo

Motor control:

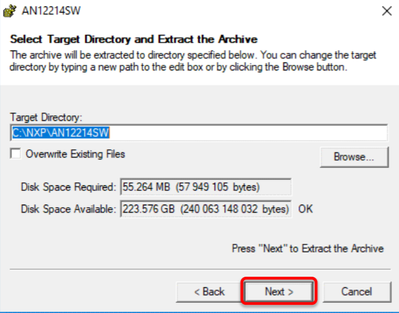

• Download the software AN12214SW
• Unzip and install

• Open MCUXpresso

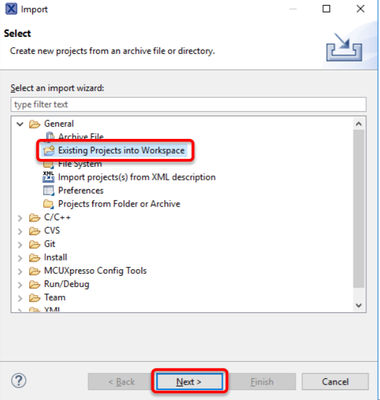

• Import project

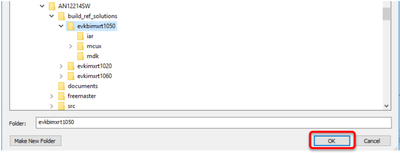

• Look in the AN12214SW software installation folder

• Click on finish
• Build project

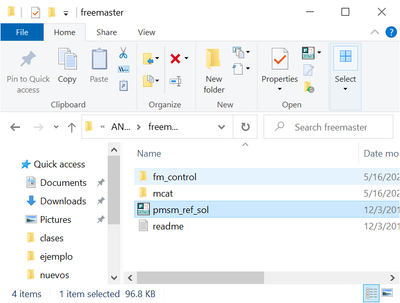

• Open the freemaster folder in the software installation folder and open the pmsm_ref_sol

• Change mode expert a basic

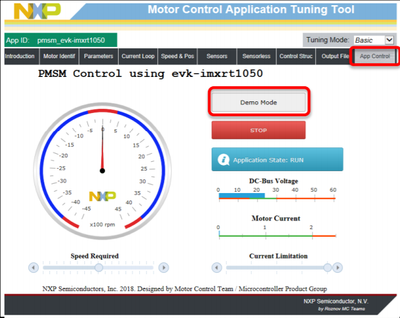

• Click on app control and run

Extra links

PN710 reader demo

Getting Started with NXP Wi-Fi® modules using i.MX RT platform

NXP Tech Session - Implementing Graphics in Real-time Industrial HMI Systems with NXP MCUs and Embed...
