i.MX 8M Plus: Loading firmware via remoteproc fails

[RishabhPoddar]

I am trying to enable remoteproc to control M7. imx_rproc driver seems to be working.  I am using the following device tree (at post end) . I have seen limited success , I am able stop start and load demo app firmware provided by mcuexprosso. How ever the existing firmware that we were using is not working.

The firmware(.bin) works fine with u-boot. But when i try to use firmware(.elf) using remoteproc it fails to kick complaining about address translation failed  . I have looked into the issue and attached some relevent info below but i dont see any obvious issue. My guess is the linker script provided by MCUexpresso has some issue or i am not using it correctly.

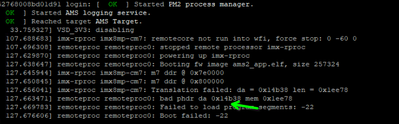

[ 1683.199889] remoteproc remoteproc0: powering up imx-rproc
[ 1683.208037] remoteproc remoteproc0: Booting fw image ams2_app.elf, size 257324
[ 1683.215523] imx-rproc imx8mp-cm7: Translation failed: da = 0x14b38 len = 0x1ee78
[ 1683.222972] remoteproc remoteproc0: bad phdr da 0x14b38 mem 0x1ee78
[ 1683.229270] remoteproc remoteproc0: Failed to load program segments: -22
[ 1683.236023] remoteproc remoteproc0: Boot failed: -22

On examining this seems to data section

The memory layout of TCM is like this

Device tree used.

/ {

model = "Variscite VAR-SOM-ATOMS-MX8MP M7 on ATP_CB3 Aston-Board";

reserved-memory {

#address-cells = <2>;

#size-cells = <2>;

ranges;

m7_reserved: m7@0x80000000 {

no-map;

reg = <0 0x80000000 0 0x1000000>;

};

vdev0vring0: vdev0vring0@40000000 {

reg = <0 0x40000000 0 0x8000>;

no-map;

};

vdev0vring1: vdev0vring1@40008000 {

reg = <0 0x40008000 0 0x8000>;

no-map;

};

vdevbuffer: vdevbuffer@40400000 {

compatible = "shared-dma-pool";

reg = <0 0x40400000 0 0x400000>;

no-map;

};

rsc_table: rsc_table@400ff000 {

reg = <0 0x400ff000 0 0x1000>;

no-map;

};

};

imx8mp-cm7 {

compatible = "fsl,imx8mn-cm7";

rsc-da = <0x40000000>;

clocks = <&clk IMX8MP_CLK_M7_DIV>;

mbox-names = "tx", "rx", "rxdb";

mboxes = <&mu 0 1

  &mu 1 1

  &mu 3 1>;

memory-region = <&vdevbuffer>, <&vdev0vring0>, <&vdev0vring1>, <&rsc_table>;

status = "okay";

};

imx8mp-rpmsg {

compatible = "fsl,imx8mq-rpmsg";

reg = <0x0 0x40000000 0x0 0x10000>;

clocks = <&clk IMX8MP_CLK_M7_DIV>;

mbox-names = "tx", "rx", "rxdb";

mboxes = <&mu 0 1

  &mu 1 1

  &mu 3 1>;

status = "okay";

};

};

[joanxie]

refer to the application note, how about define TCM memory in the dts?

https://www.nxp.com.cn/docs/en/application-note/AN5317.pdf

you can refer to the page 11

and let me remind, if you kick in the uboot, don't forget stop in the kernel then kick again

[RishabhPoddar]

I stop the m7 before loading FW and kick

on your suggestion i have updated the device tree

relevant Device tree update to last one. is below

m7itcm: m7@0x7E0000 {

no-map;

reg = <0 0x7E0000 0 0x20000>;

};

m7dtcm: m7@0x800000 {

no-map;

reg = <0 0x800000 0 0x20000>;

};

.

.

.

memory-region = <&vdevbuffer>, <&vdev0vring0>, <&vdev0vring1>, <&rsc_table>, <&m7itcm>, <&m7dtcm>;

The issue is still present. Again i am able to kick hello_world example provided but my elf fails.

My understanding is it should try to translate and load VirtualAddress . But it seems to be trying to load PhyAddress . Am i missing something? Please look At the screenshots attached.

[joanxie]

what elf do yo use? it seems that this is elf issue, could you reproduce this on nxp imx8mp board? if yes, give me the detailed reproduce steps

[RishabhPoddar]

Which elf did you use -> FreeRTOS based proprietary  application that we developed  It uses RPMSG-Lite to talk with host.

Since the elfs data section was not aligned with DTCM of iMX 8 Plus . It was crashing. We had 2 options.

Edit the linker script provided in MCUExpresso as mentioned in this thread https://community.toradex.com/t/error-in-m4-ocram-linker-file/8354/15

Or in the imx-rproc driver we could redefine ITCM and DTCM as a single TCM block. For now we have gone with the second option and are able to load FW.

Thank you for your help . We are stuck with different issue currently I will start a new thread for that.

[joanxie]

this is tested elf list'

The i.MX8MN/P, the elf file list:

imx8m[n,p,m,q]_m[7,4]_TCM_hello_world.elf
imx8m[n,p,m,q]_m[7,4]_TCM_rpmsg_lite_pingpong_rtos_linux_remote.elf
imx8m[n,p,m,q]_m[7,4]_TCM_rpmsg_lite_str_echo_rtos.elf
imx8m[n,p,m]_m[7,4]_TCM_sai_low_power_audio.elf

so you can work with imx8mp_m7_TCM_hello_world.elf, but failed with your own elf, right?
