Can anybody explain me the contains of linux file arch/arm/boot/dts/imx6q-pinfunc.h.

Question asked by Ashutosh Singh on Jan 7, 2014
Latest reply on Feb 9, 2014 by Ashutosh Singh

Hi All,



I am quite new to device tree i go through the imx6 linux BSP.

In file arch/arm/boot/dts/imx6q-pinfunc.h

I find some defination such as:



#define MX6QDL_PAD_KEY_COL0__UART4_TX_DATA          0x244 0x62c 0x000 0x4 0x0

mux_reg      0x244

conf_reg      0x62c

input_reg      0x000

mux_mode     0x4

input_val      0x0



But where to find this values in Datasheet. I am only able to find mux mode in Chapter 38 IOMUX Controller (IOMUXC)

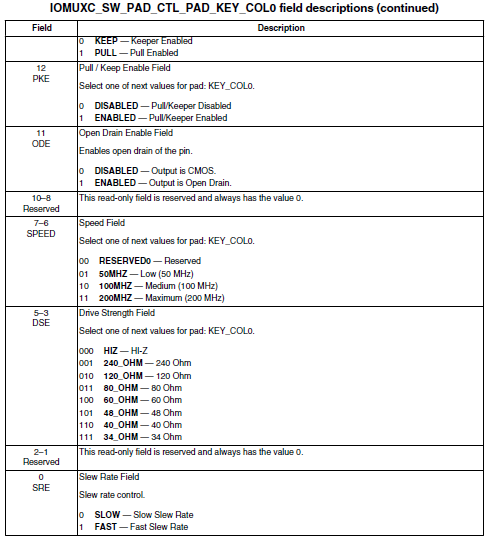

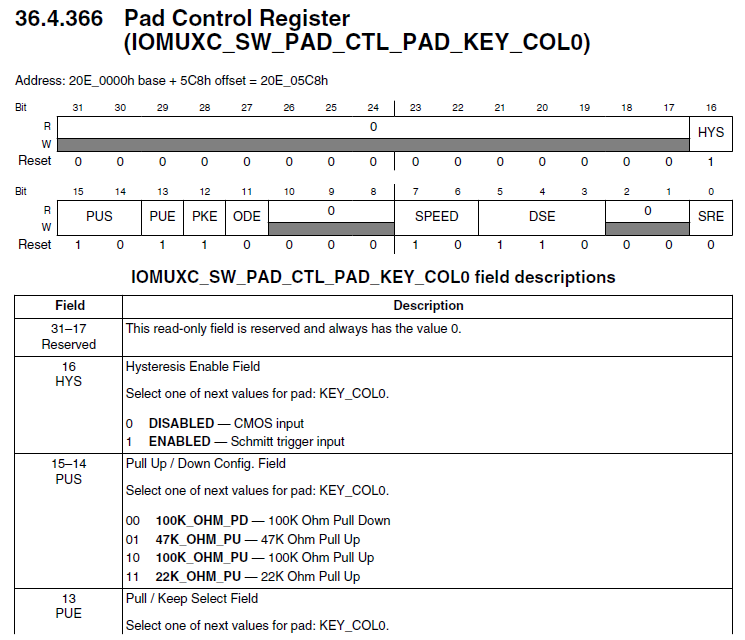

38.3.127 SW_MUX_CTL(IOMUXC_IOMUXC_SW_MUX_CTL_PAD_KEY_COL0)



What about the rest. please help me out.
