i.MX RT1170 GPIO MUX Table

[auftrag2021]

Hello Dear NXP Colleague,

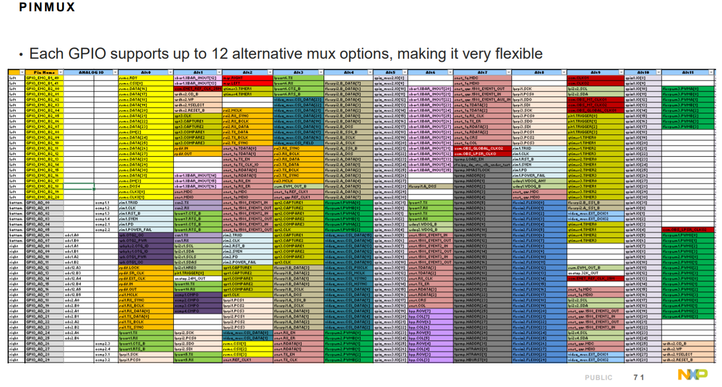

I found a very useful GPIO MUX overview table in your "i.MX RT1170 MCUs | Architecture Overview - Training Presentation"

Unfortunately this is only screenshot picuter in the presentation.

Would do please send me the original table to me? thanks!

[kerryzhou]

Hi auftrag2021,

  Mark already share the related excel mux file.

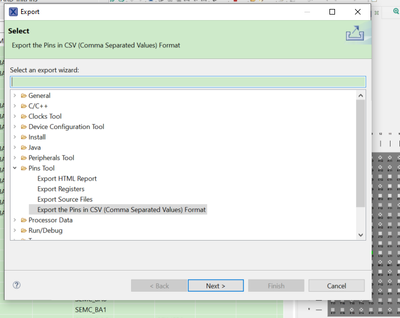

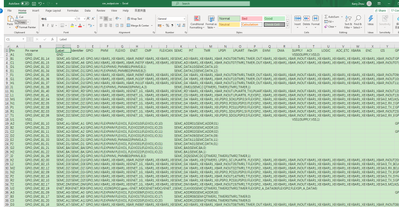

   If you need the function related file, you also can use the MCUXPresso CFG tool to export it:

Wish it helps you!

Best Regards,

Kerry

[mjbcswitzerland]

Hi

The uTasker project maintains PINMUX spread sheets in XLS format here:

https://www.utasker.com/iMX/developers.html#pin_mux

These can then also be edited for specific project assignment use.

Regards

Mark
[uTasker project developer for Kinetis and i.MX RT]
