i.MX 8M Nano and DDR4-2400 supporting documentation

‎07-13-2021 02:48 AM
1,002 Views
alexander4
Contributor I

Hello
I'm designing  i.MX 8M Nano and DDR4-2400 strongly following the IMX8MNHDG dev guide.

Is there any other documentation/guides/files that would be helpful for me?

Required impedace for CLK and DQS signals , may be some layout checklists ?

Someting like HW_Design_Checking_List_for_i.MX6DQP6DQ6SDL_Rev3.1.xlsx

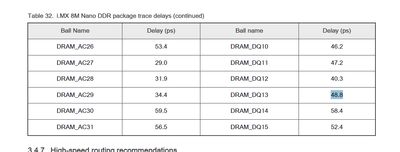

Also I have found one not critical mistake in  IMX8MNHDG .



vs




Thank you!!!


Labels (1)
Preview file
1795 KB
0 Kudos
Reply
2 Replies

‎07-14-2021 06:32 AM
983 Views
alexander4
Contributor I

thanks!

0 Kudos
Reply

‎07-13-2021 04:11 AM
991 Views
igorpadykov
NXP Employee
NXP Employee

Hi Alexander



impedances are provided in sect.3.5 Trace impedance recommendations

i.MX 8M Nano Hardware Developer’s Guide

I am afraid there are no additional documents, in general recommended to use simulation,

sect.3.4.5 i.MX 8M Nano DDR SI simulation guide, ibis models can be found on

https://www.nxp.com/products/processors-and-microcontrollers/arm-processors/i-mx-applications-proces...



Best regards
igor
