Some customer need to config different I2C bus for their PMIC in DDR test period. There is a simple method can complete this, that is NXP DDR Config Tool.

The tool download link is below:

https://www.nxp.com/design/development-boards/i-mx-evaluation-and-development-boards/config-tools-fo...

I'm going to use the i.MX 93 EVK board here as a demonstration. On i.MX 93 EVK board, the default PMIC I2C Bus is I2C2, I will show you how to change I2C2 to I2C1, the other i2c bus is same.

Step 1 : Rework the board and make sure the PMIC is connected to I2C1.

Remove R714 R715, connnect I2C1_SCL(C20) to U701 pin 41  and I2C1_SDA(C21) tp U701 pin 42.

Step 2Setup I2C1 PinMux:

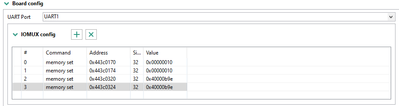

Config Tool UI:   Advance -> IOMUX config





Command:           Address                Size               Value

memory   set     0x443c0170            32                   0x10

memory   set     0x443c0174            32                   0x10

memory   set     0x443c0320            32                   0x40000b9e

memory   set     0x443c0324            32                   0x40000b9e

Step 3 : Set PMIC VDDQ as 1.1 V

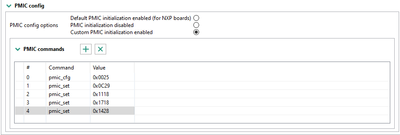

Config Tool UI:   Advance -> Custom PMIC initialization enabled




#  PMIC commands        Value

0         pmic_cfg             0x0025       /*I2C bus 1,  PMIC address 0x25 */ (0 for I2C1, 1 for I2C2, 2 for I2C3, 3 for I2c4 …)

1         pmic_set             0x0C29       /* BUCKxOUT_DVS0/1, preset_buck1=0.8V, preset_buck2=0.7V, preset_buck3=0.8V PCA9451_BUCK123_DVS, 0x29 */

2         pmic_set             0x1118      /*  BUCK1OUT_DVS0=0.9V   PCA9451_BUCK1OUT_DVS0, 0x18 */

3         pmic_set             0x1718      /*  BUCK3OUT_DVS0=0.9V   PCA9451_BUCK3OUT_DVS0, 0x18 */

4         pmic_set             0x1428      /*  Set VDDQ to 1.1V  PCA9451_BUCK2OUT_DVS0, 0x28  */

PS : About pmic register, The first two bytes are the register address and the next two bytes are the register setting.

Step 4 : Run the DDR "Firmware init test" and see the test result.

The success log is as follows:

DEBUG memtool.comm.serial_channel ==================hardware_init=======================

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel Power up ddr...

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel DDRMIX power on done...

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel DDRPHY coldreset...

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel ********Found PMIC PCA945X**********

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel Set VDDQ to 1.1V for LPDDR4

DEBUG memtool.comm.serial_channel

DEBUG memtool.comm.serial_channel ==================hardware_init exit==================
