Terminal input impedance of VADCSE0

[takashitakahash]

Hi community.

Would you please tell me the input impedance of  VADCSE0 terminal of Vybrid VF522R.

VYBRID Data Sheet of Rev 7 11/2014, we've examined but can not find.

[CommunityBot · Accepted solution]

This an automatic process.

We are marking this post as solved, due to the either low activity or any reply marked as correct.

If you have additional questions, please create a new post and reference to this closed post.

NXP Community!

[richard_stulens]

Hi Takashi-san,

I'm sorry for the delay. I requested the information but have not yet received it.

I will ask again.

Best regards,

Richard

[jiri-b36968]

Hello Takashi-san,

I was asked to reply by Karina - Richard is on vacations.

Characteristic impedance of video inputs is 75R.

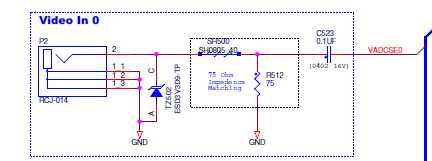

To connect video signal please use circuit similar to this:

/Jiri
