Model-Based Design Toolbox for MPC57xx Automotive Microprocessors Version 3.2.0

No ratings

Model-Based Design Toolbox for MPC57xx Automotive Microprocessors Version 3.2.0




Product Release Announcement

Automotive Microcontrollers and Processors

NXP Model-Based Design Toolbox

for MPC57xx – version 3.2.0



Austin, Texas, USA

April 14th, 2020

The Automotive Microcontrollers and Processors Model-Based Design Tools Team at NXP Semiconductors is pleased to announce the release of the Model-Based Design Toolbox for MPC57xx version 3.2.0. This release supports automatic code generation for peripherals and applications prototyping from MATLAB/Simulink for NXP’s MPC574xB/C/G/P/R and MPC577xB/C/E series.


FlexNet Location

Activation link


Technical Support

NXP Model-Based Design Toolbox for MPC57xx issues are tracked through the NXP Model-Based Design Tools Community space.


Release Content

  • Automatic C code generation based on PA SDK 3.0.2 RTM drivers from MATLAB®/Simulink® for 21 NXP product families MPC574xB/C/G/P/R and MPC577xB/C/E derivatives:
  • MPC5744B, MPC5745B, MPC5746B                                                 (*updated)
  • MPC5744C, MPC5745C, MPC5746C, MPC5747C, MPC5748C       (*updated)
  • MPC5746G, MPC5747G, MPC5748G                                                (*updated)
  • MPC5741P, MPC5742P, MPC5743P, MPC5744P                              (*updated)
  • MPC5743R, MPC5745R, MPC5746R                                                 (*new)
  • MPC5775B, MPC5775E, MPC5777C                                                 (*new)

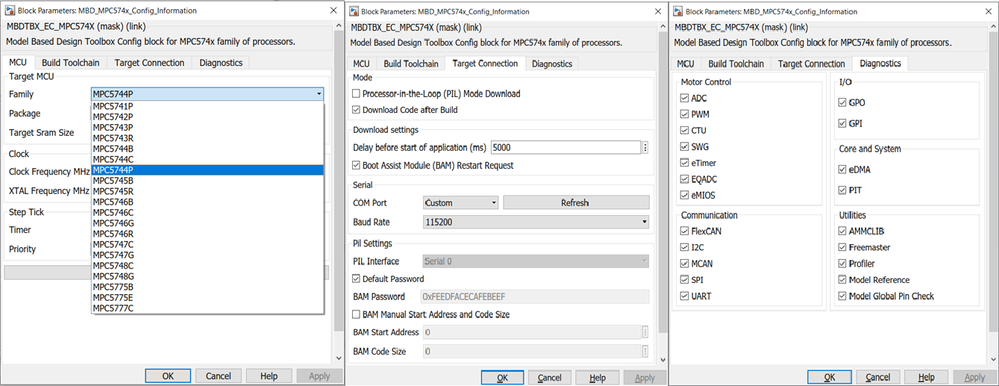

  • Multiple options for MCU packages, Build Toolchains and embedded Target Connections are available via Model-Based Design Toolbox Simulink main configuration block


  • Multiple peripherals and drivers supported

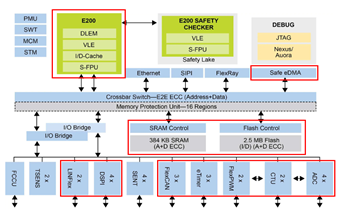

MPC574xP Ultra-Reliable MCU for Automotive & Industrial Safety Applications

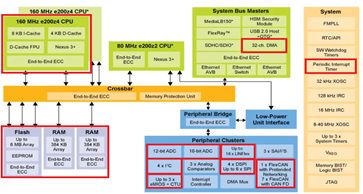

MPC574xB/C/G Ultra-Reliable MCUs for Automotive & Industrial Control and Gateway

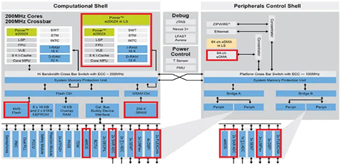

MPC574xR Ultra-Reliable MCUs for industrial and automotive engine/transmission control

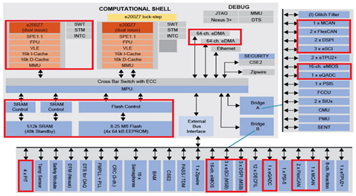

MPC577xB/C/E Ultra-Reliable MCUs for Automotive and Industrial Engine Management

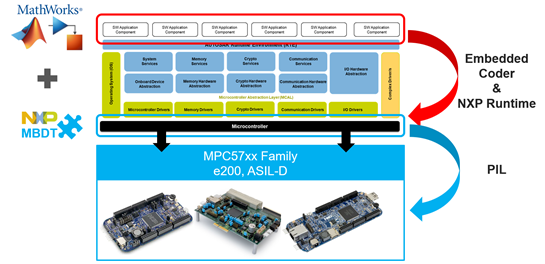

  • Add support for AUTOSAR Blockset for all MPC57xx parts to allow Processor-in-the-Loop simulation for Classic AUTOSAR Application Layer SW-C:  pastedImage_14.png

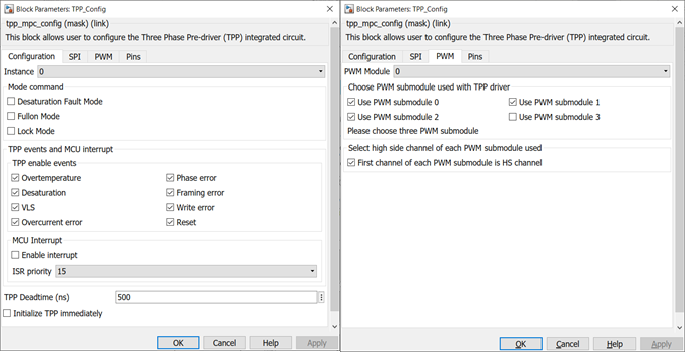

  • Add support for Three Phase Field Effect Transistor Pre-driver, MC33GD3000, MC34GD3000, MC33937, and MC34937 configuration and controlpastedImage_17.png
  • Enhance MATLAB/Simulink support to all versions starting with 2016a to 2020a

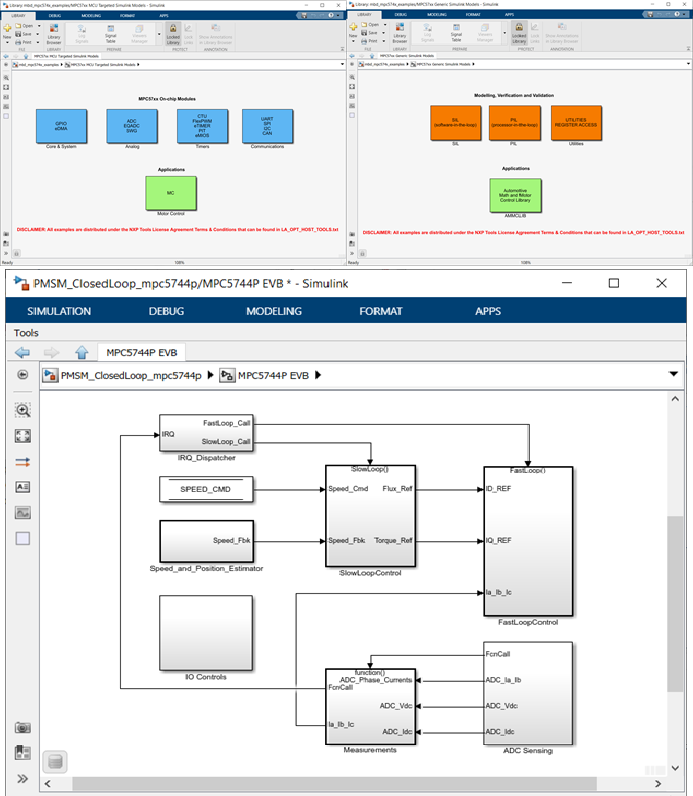

  • Enhance the example library with more than 140 models to showcase various functionalities:
    • Core & Systems
    • Analogue
    • Timers
    • Communications
    • Simulations
  • Motor Control ApplicationspastedImage_19.png

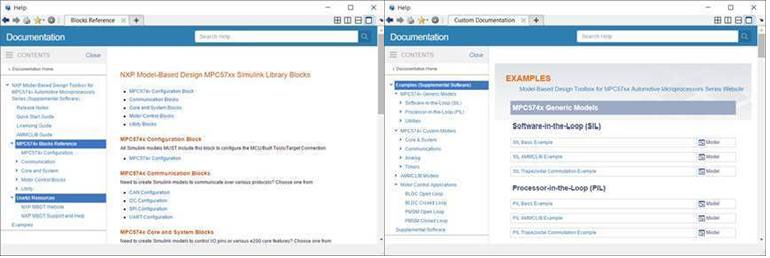

For more details, features and how to use the new functionalities, please refer to the Release Notes and Quick Start Guide documents attached.


MATLAB® Integration

The NXP Model-Based Design Toolbox extends the MATLAB® and Simulink® experience by allowing customers to evaluate and use NXP’s MPC57xx MCUs and evaluation boards solutions out-of-the-box with:

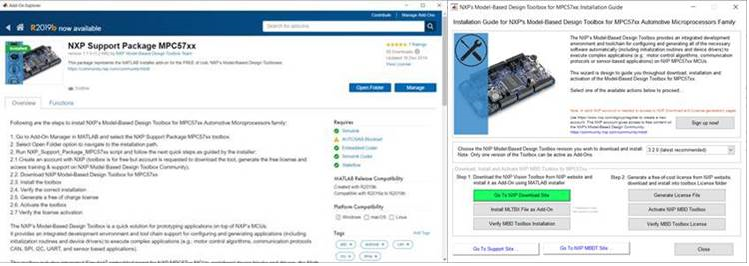

  • NXP Support Package for MPC57xx Online Installer Guide Add-on allows users to install the NXP solution directly from the Mathworks website or directly from MATLAB IDE. The Support Package provides a step-by-step guide for installation and verification.





Target Audience

This release (v.3.2.0) is intended for technology demonstration, evaluation purposes and prototyping for MPC574xB/C/G/P/R and MPC577xB/C/E MCUs and their corresponding Evaluation Boards:

  • DEVKIT-MPC5744P PCB RevA SCH RevE (*new)
  • DEVKIT-MPC5777C-DEVB
  • Daughter Card MPC574XG-256DS RevB
  • Daughter Card X-MPC574XG-324DS RevA
  • Daughter Card MPC5744P-257DS RevB1
  • Daughter Card SPC5746CSK1MKU6
  • Daughter Card MPC5777C-516DS
  • Daughter Card MPC5777C-416DS
  • Motherboard X-MPC574XG-MB RevD
  • Motherboard MPC57XX RevC
  • Daughter Card MPC5775B-416DS (*new)
  • Daughter Card MPC5775E-416DS (*new)
  • Daughter Card MPC5746R-144DS (*new)
  • Daughter Card MPC5746R-176DS (*new)
  • Daughter Card MPC5746R-252DS (*new)
