Plotter Application Using MC34931S DC Motor Driver, Sensors and Kinetis Microcontrollers

[#1]

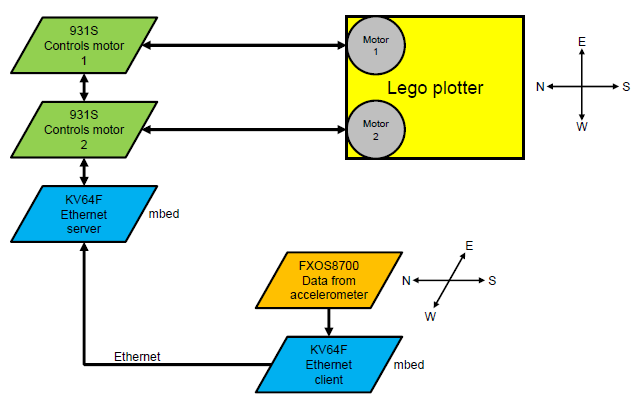

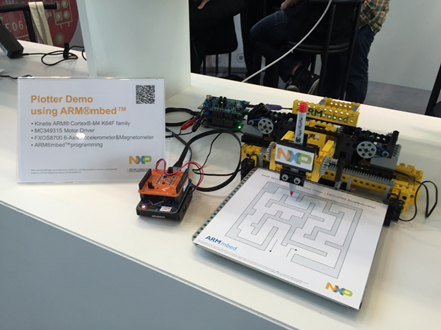

This demo shows the interaction among MCUs, motor drivers, and sensors using simple mbed code and various communication protocols, namely Ethernet, I2C, and PWM to simulate real-world applications on a smaller scale

Features

• Motor driver with Brushed DC motor driver with current feedback and thermal regulation
• 6-Axis sensor FXOS8700 (Accelerometer + Magnetometer) and 3-Axis Gyroscope FXAS21002
• Kinetis K64 MCU 120 MHz ARM® Cortex®-M4 core with Ethernet and USB
• Complete system consisting of an MCU, a sensor, and a motor driver

_______________________________________________________________________________________________________

Featured NXP Products

Product	Link
Sensor Toolbox Development Boards for a 9-Axis Solution using FXAS21002C and FXOS8700CQ	https://www.nxp.com/design/development-boards/freedom-development-boards/sensors/sensor-toolbox-deve...
Freedom Expansion board for MC34931- Brushed DC Motor Driver, H-Bridge, 20kHz	https://www.nxp.com/design/development-boards/analog-toolbox/freedom-expansion-board-for-mc34931-bru...
Freedom Development Platform for Kinetis® K64, K63, and K24 MCUs	https://www.nxp.com/design/development-boards/freedom-development-boards/mcu-boards/freedom-developm...

_______________________________________________________________________________________________________

Software Links

• Accelerometer code
• Motor driver code

For more detailed information about this demo, please download attached PDF
