Switched Mode Power Supply

Document created by Fabian Ramirez Employee on Apr 17, 2020Last modified by Fabian Ramirez Employee on Apr 20, 2020
Version 2Show Document
  • View in full screen mode


NXP digital signal controllers provide a switched-mode power supply solution that maximizes efficiency while reducing system costs through bill-of-materials savings.

Our solution dynamically compensates for system disadvantages such as component aging and operational variability due to changing load conditions.


Reference Designs

Product NameLinkFeatures
3-Phase PMSM Controlhttps://www.nxp.com/design/designs/3-phase-pmsm-control:PERMANENT-MAGNET-MOTOR

The 3-Phase Permanent Magnet Synchronous (PMSM) Motor Control Reference Design is based on Kinetis V Series MCUs and intended to provide the example for 3-phase sensorless PMSM motor control solutions. The Reference design utilizes a closed-loop field-oriented vector speed (FOC) control mechanism.

KV Series Full-Bridge DC-DC Switch Mode Power Supply (SMPS)https://www.nxp.com/design/designs/kv-series-full-bridge-dc-dc-switch-mode-power-supply-smps:FULL-BRIDGE-SMPS

Full Bridge DC-DC Switch Mode Power Supply

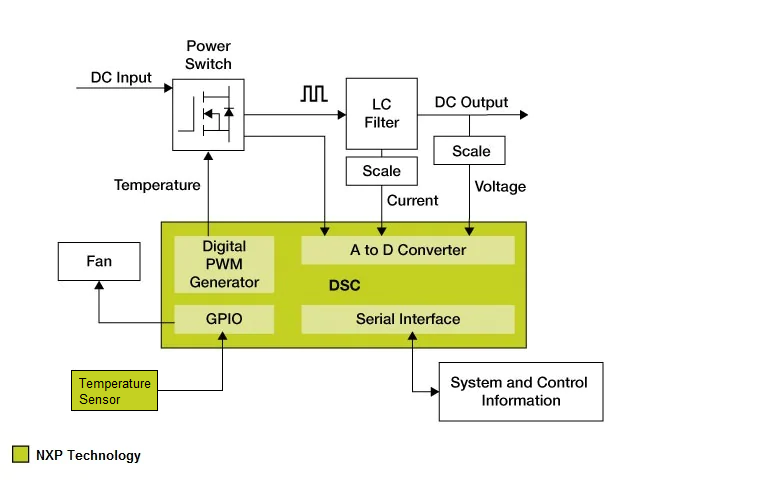

Block Diagram




DSCKinetis V Series: Real-time Motor Control & Power Conversion MCUs based on Arm Cortex-M0+/M4/M7 | NXP

Kinetis V Series MCUs are based upon the Arm Cortex-M0+, Cortex-M4, and Cortex-M7 cores and are designed for a wide range of BLDC, PMSM, and ACIM motor control and digital power conversion applications.

Temperature SensorI²C Digital Temperature/Voltage Sensors | NXP

NXP I2C Temperature/Voltage monitors offer best-in-industry precision to fit any thermal management need.
